ABS Light Relay: Service and Repair






REMOVE OR DISCONNECT
1. Negative (-) battery cable.

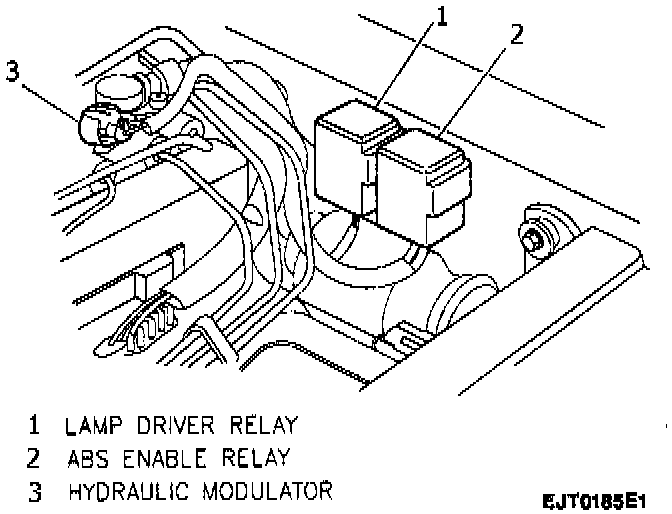

2. Pull lamp driver relay from mounting bracket.
3. Lamp driver relay electrical connector.

INSTALL OR CONNECT
1. Lamp driver relay electrical connector.
2. Lamp driver relay to mounting bracket.
3. Negative (-) battery cable.
