Wiper Arm Replacement

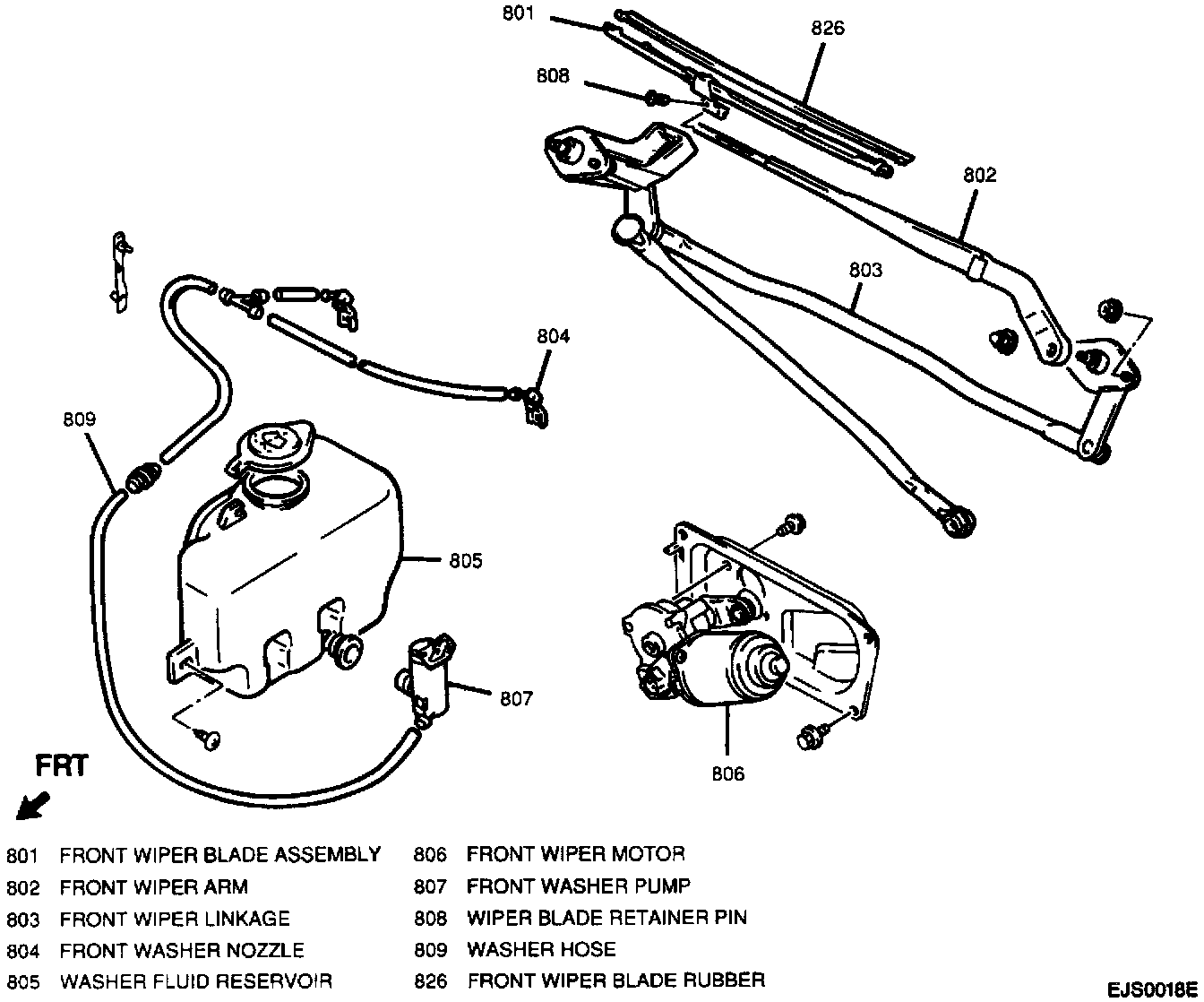

Front Windshield Wiper/Washer System (Typical):
Remove or Disconnect IMPORTANT ^
Before removing the front
wiper arm, note its location for proper installation.
1.
One retaining nut from front
wiper arm.
2.
Front
wiper arm from front wiper linkage.
Install or Connect 1.
Front
wiper arm to front wiper linkage; secure with retaining nut.
Tighten ^
Front
wiper arm retaining nut to
20 N.m (15 lb.ft.).
