Condenser HVAC: Service and Repair

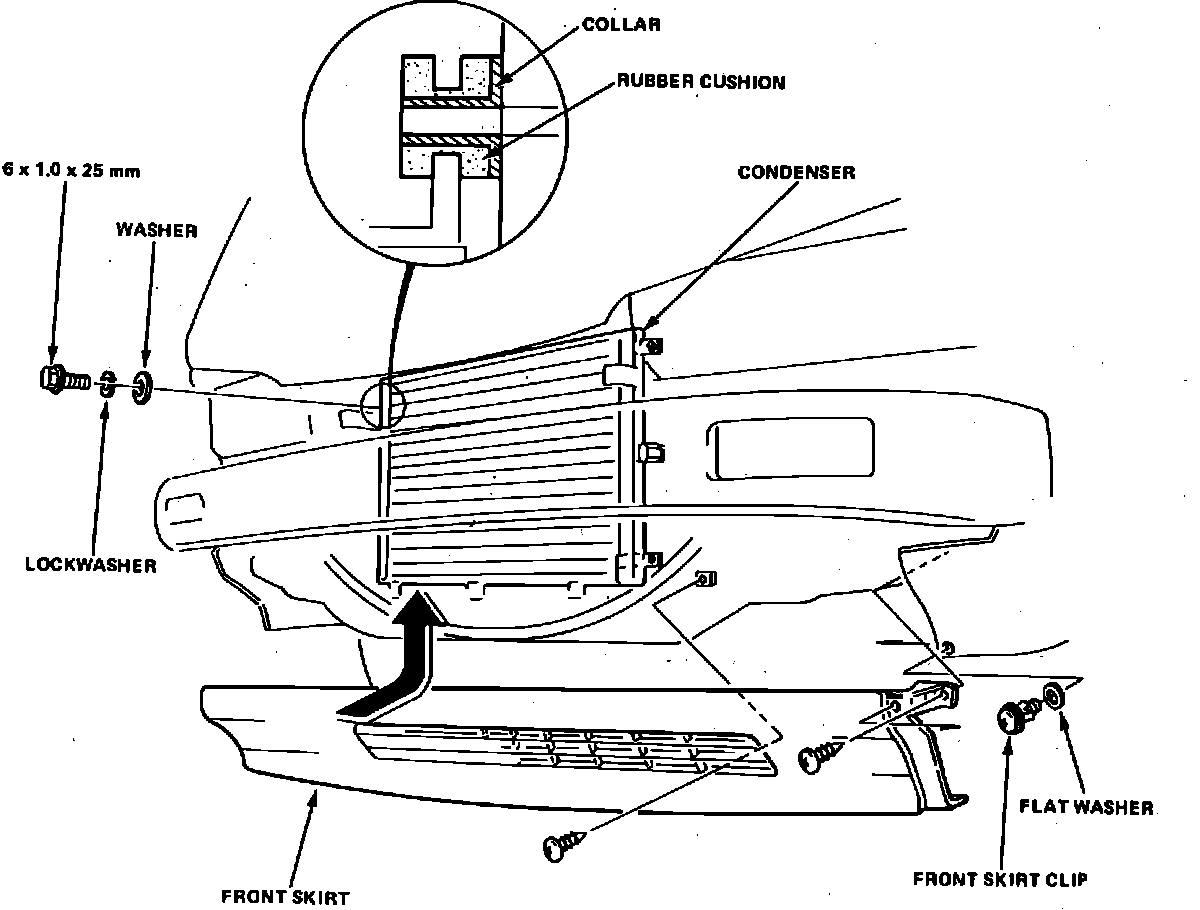

Fig. 6 Condenser Mounting:
1.
Disconnect battery ground cable.
2.
Discharge
refrigerant from system.
3.
Disconnect condenser line and discharge hose from condenser and cap all openings.
4.
Remove front skirt,
Fig. 6. 5.
Remove condenser mount bolts, then let condenser down from under vehicle.
6.
Reverse procedure to install.
