Ignition System: Description and Operation

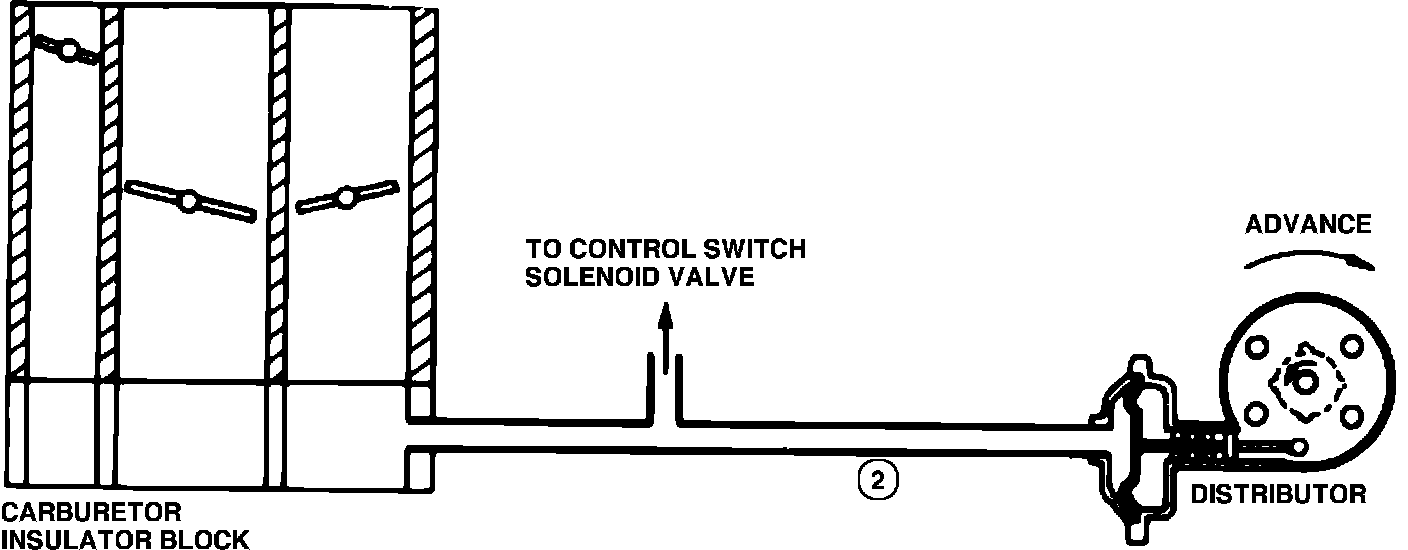

Fig. 39 Ignition timing control system.:
This system,
Fig. 39, provides vacuum advance in response to manifold vacuum to optimize
ignition timing during and after engine warm-up to control emission levels while maximizing fuel economy and engine performance.
