Home >> Honda >> 1984 >> Accord L4-1829cc 1800 ES,ET >> Repair and Diagnosis >> Power and Ground Distribution >> Fuse >> Locations

Fuse: Locations

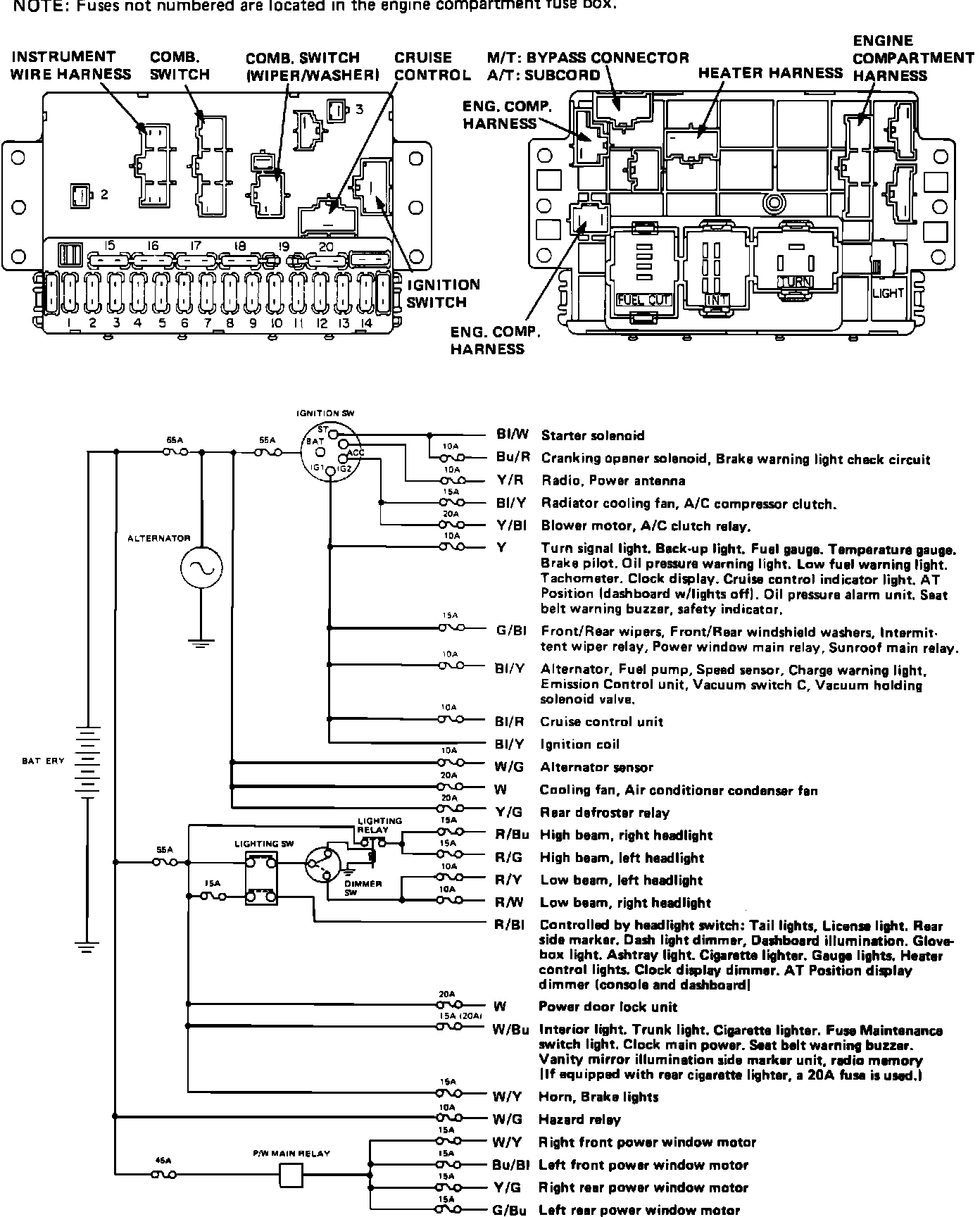

Fuse Box And Junction/Relay Panel:
