Home >> Honda >> 1984 >> Civic CVCC L4-1488cc 1.5L EW1, EW3 >> Repair and Diagnosis >> Powertrain Management >> Emission Control Systems >> Locations >> Man Trans >> Exc Calif.

Exc Calif.

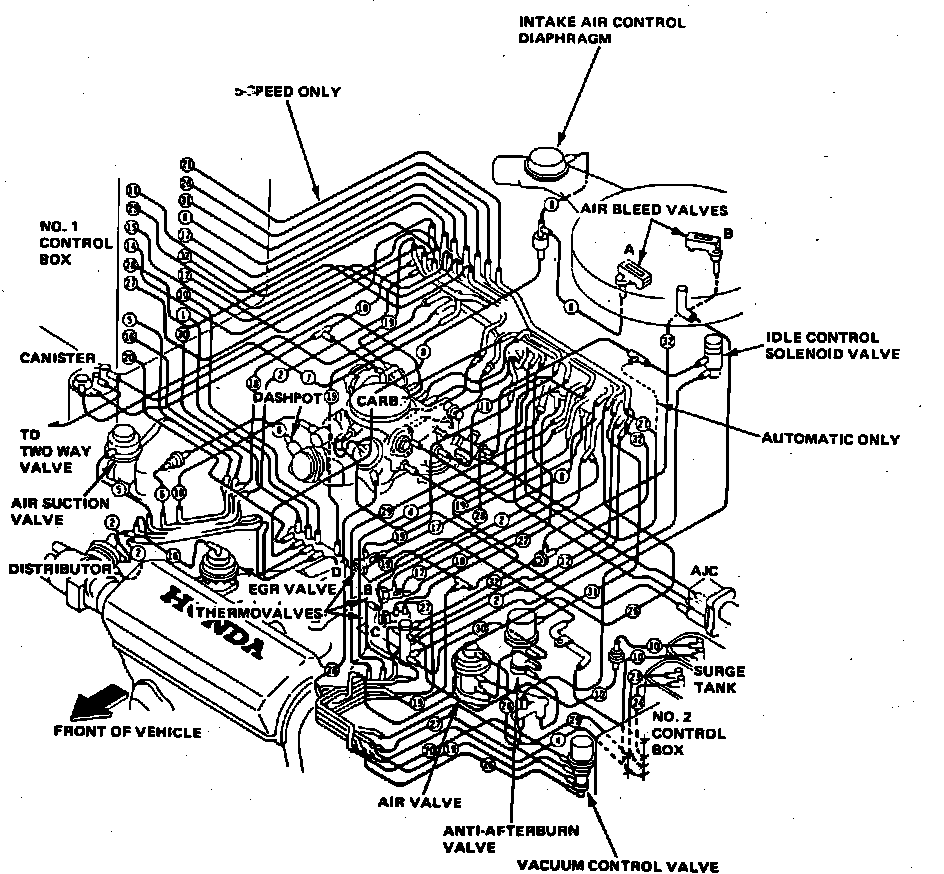

Vacuum Components & Connections.:




Engine Compartment

Applicable to: 1984 w/1500 Engine & Manual Transaxle, Except Calif.
