Torque Specifications

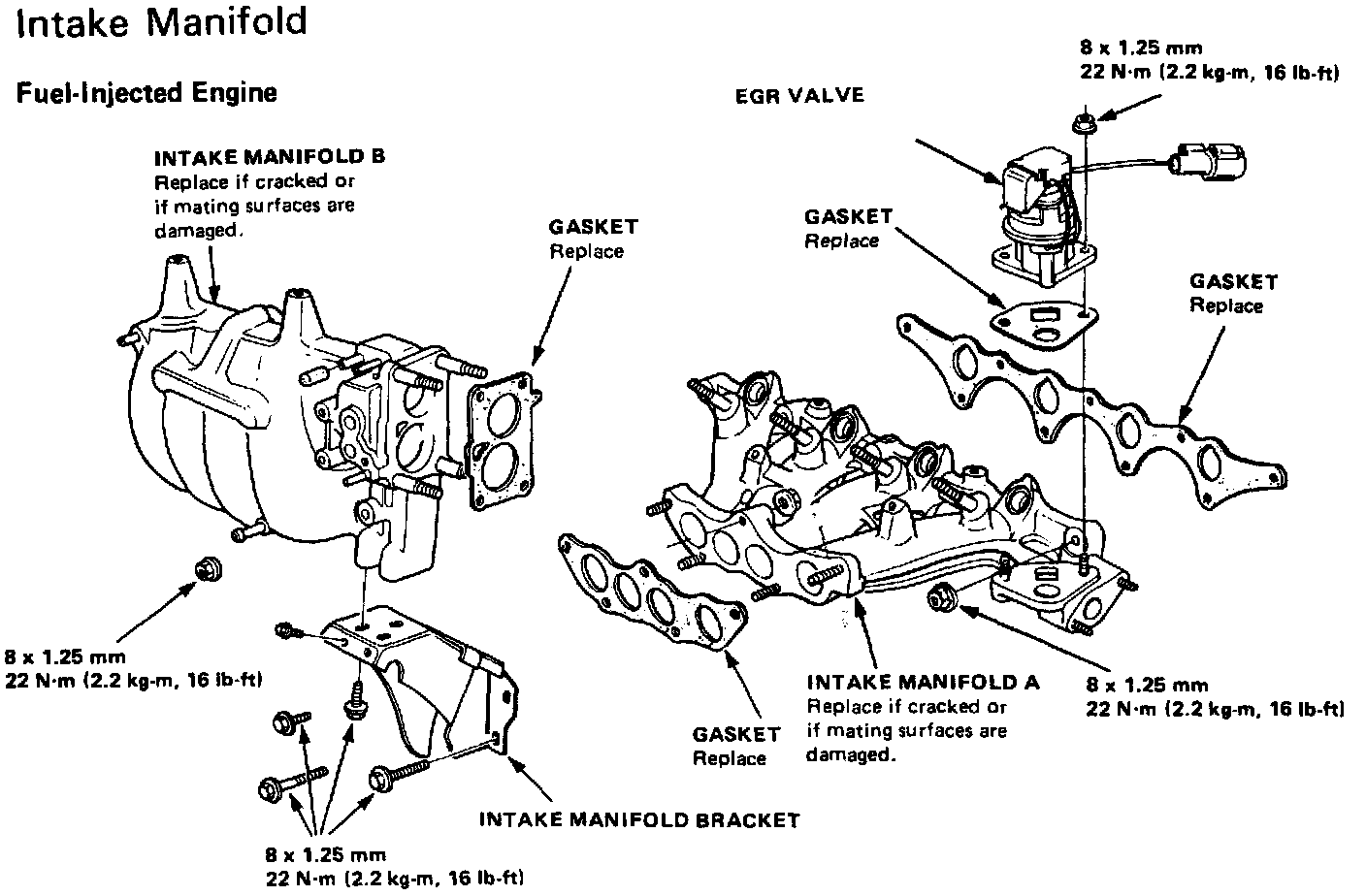

Intake Manifold And Bracket, EGR Valve:

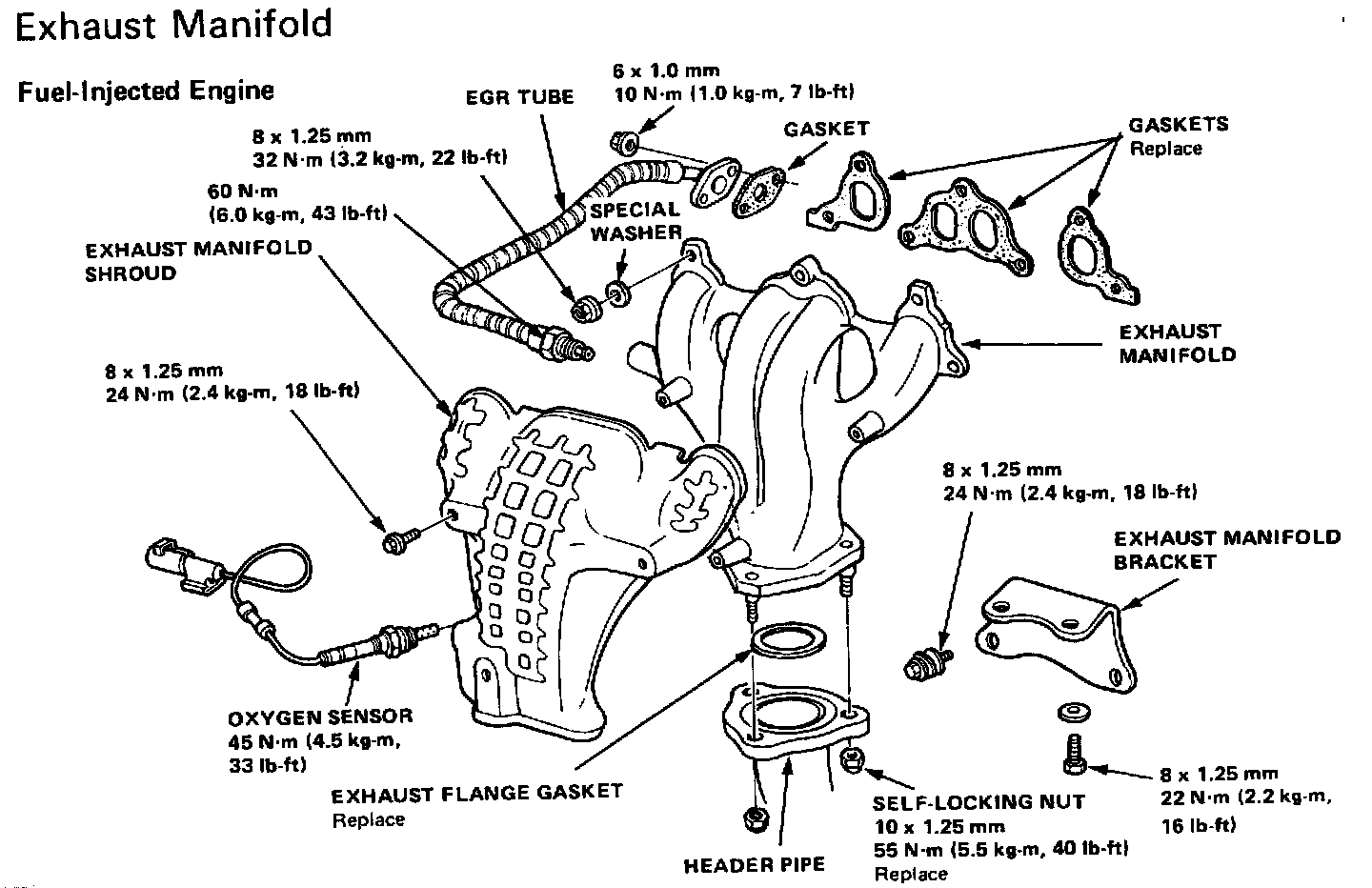

Exhaust Manifold, Shroud And Brackets, EGR Tube, O2 Sensor:

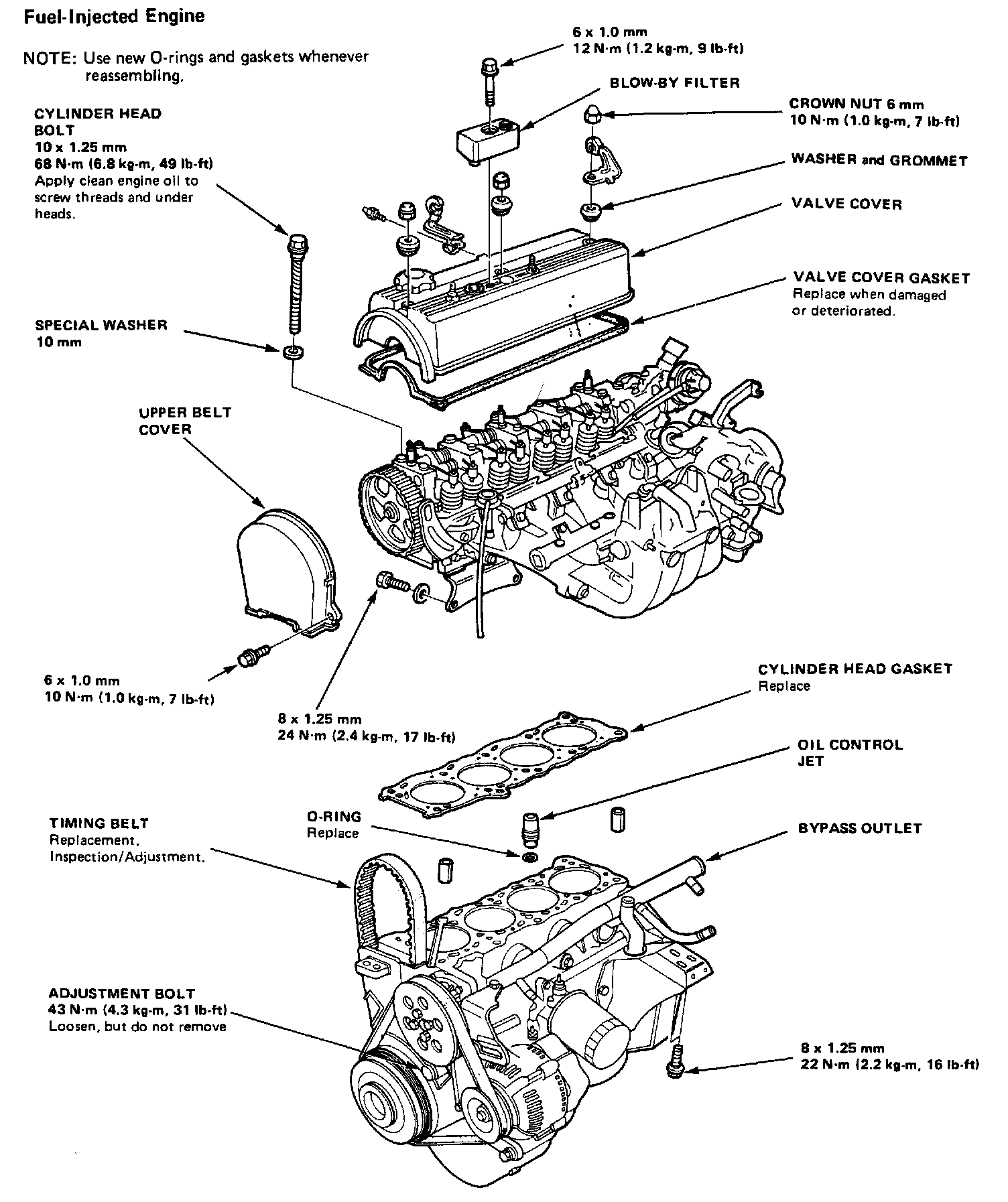

Cylinder Head:

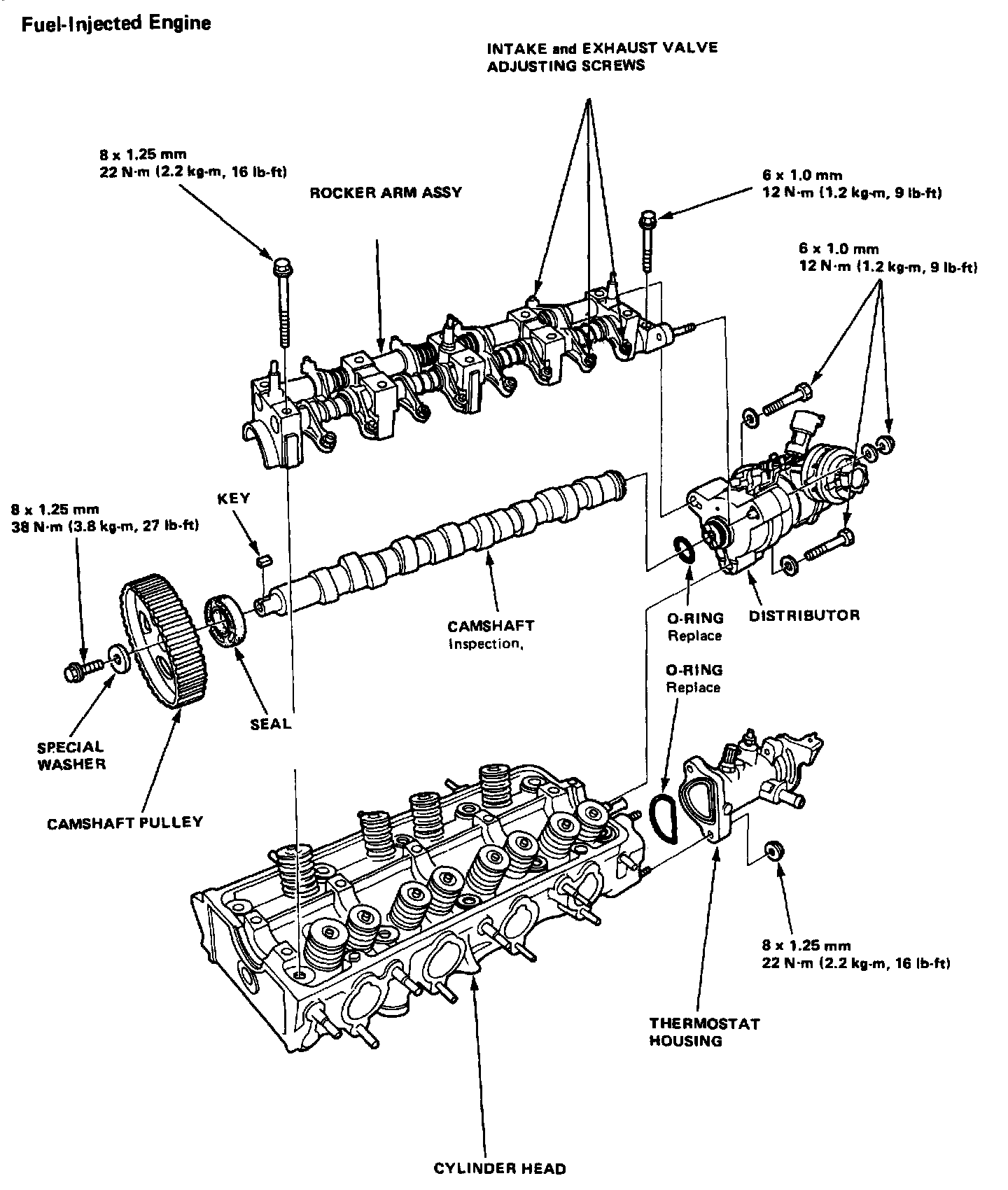

Camshaft, Rockers, Distributor And Thermostat Housing:

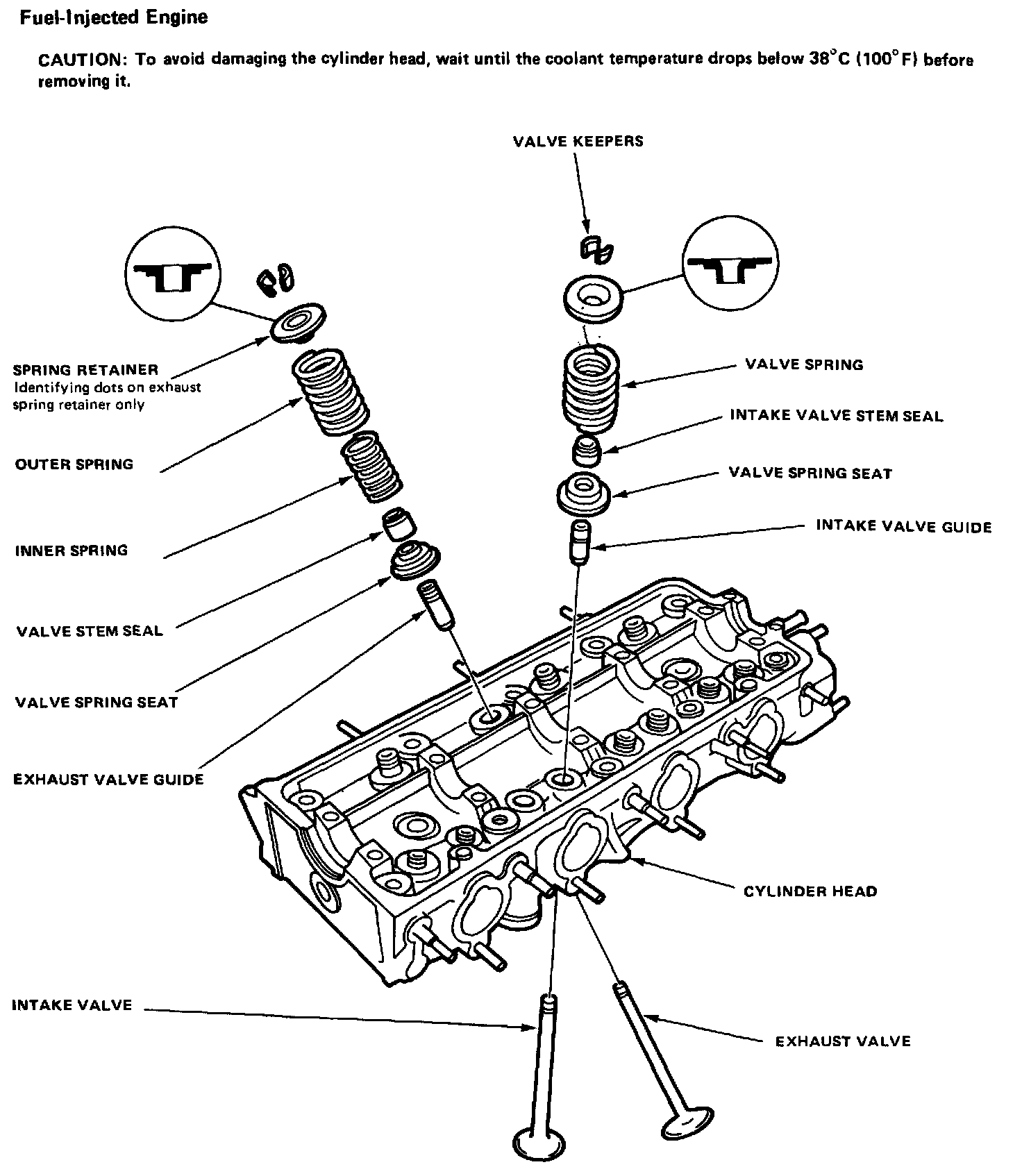

Valves, Guides, Springs And Keepers:
Rocker Assembly Torque And Sequence:
Cylinder Head Torque And Sequence - Tighten In 2 Steps:
Torque cylinder head bolts in 2 steps, following sequence shown in figure:
1st step: torque bolts to 22 ft. lbs.
2nd step: torque bolts to 49 ft. lbs.

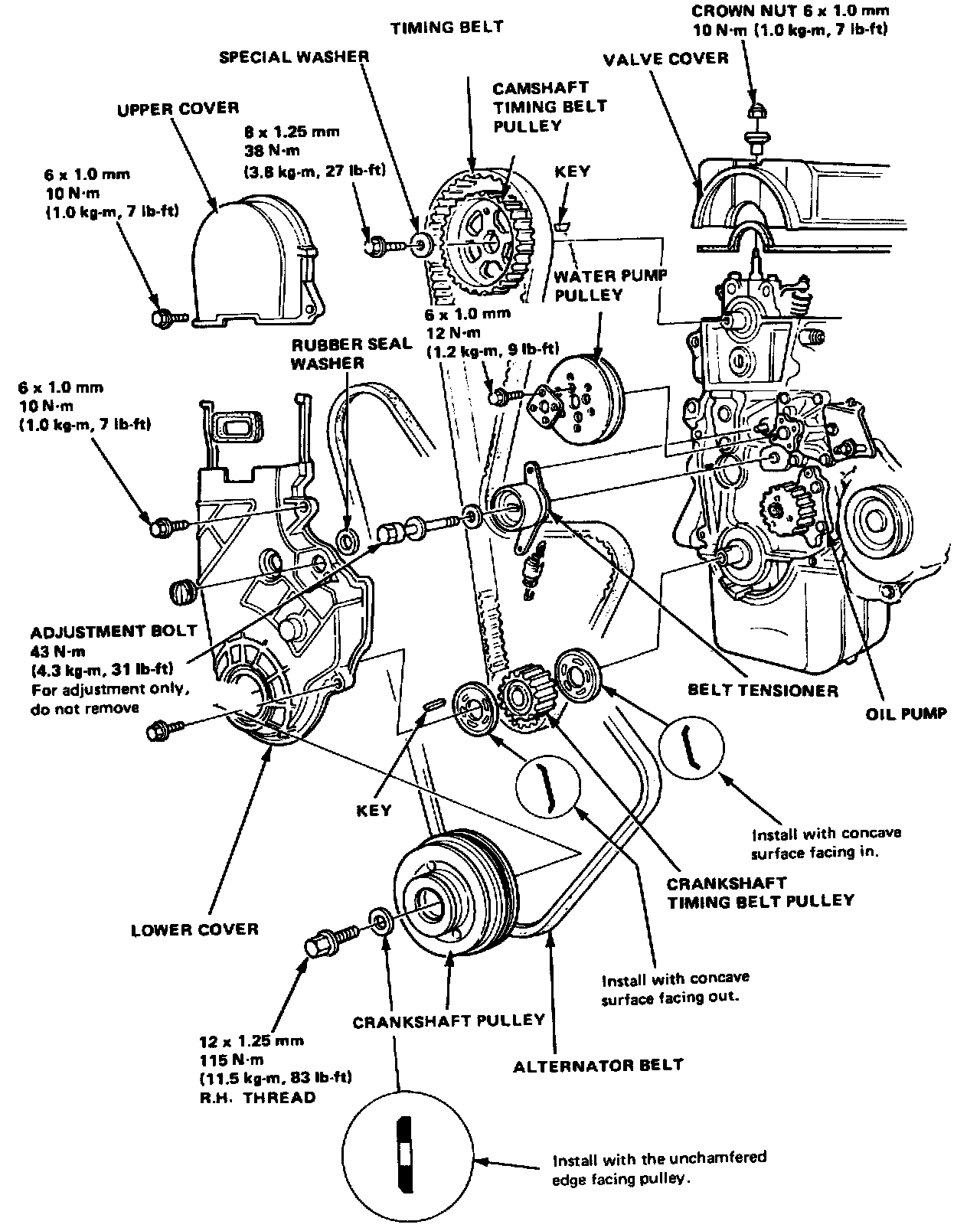

Timing Components:

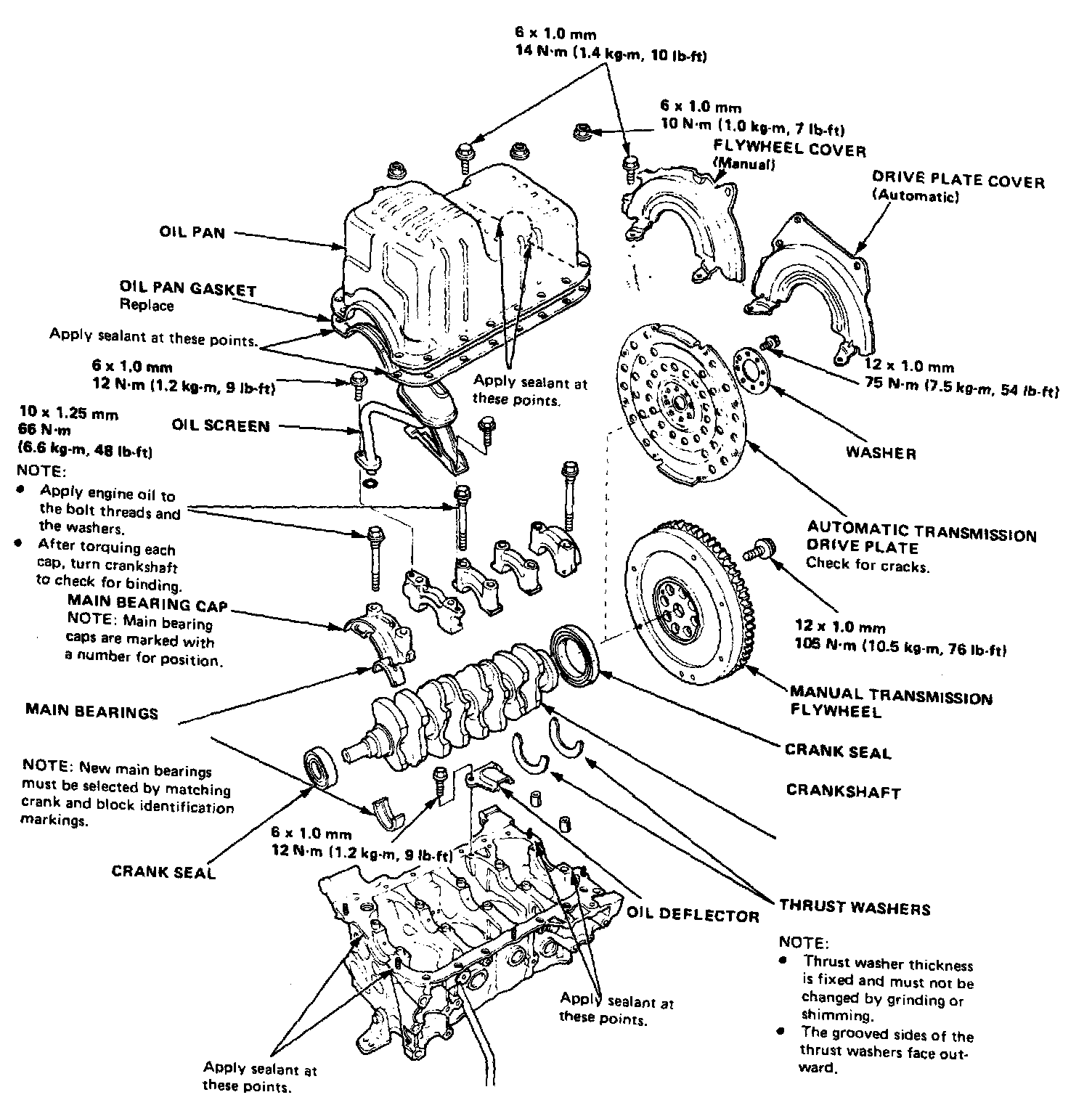

Lower Engine:

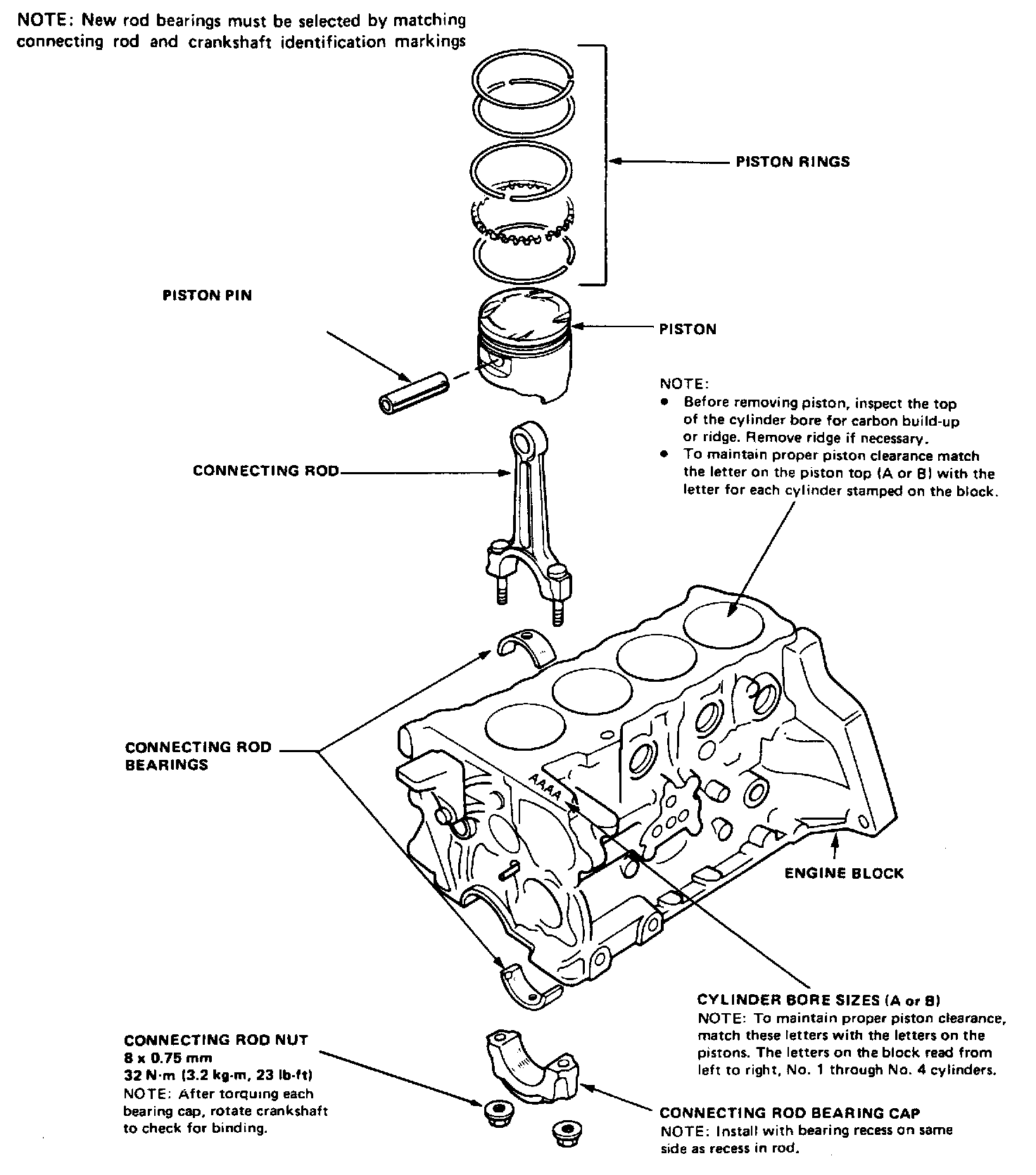

Piston And Connecting Rods:

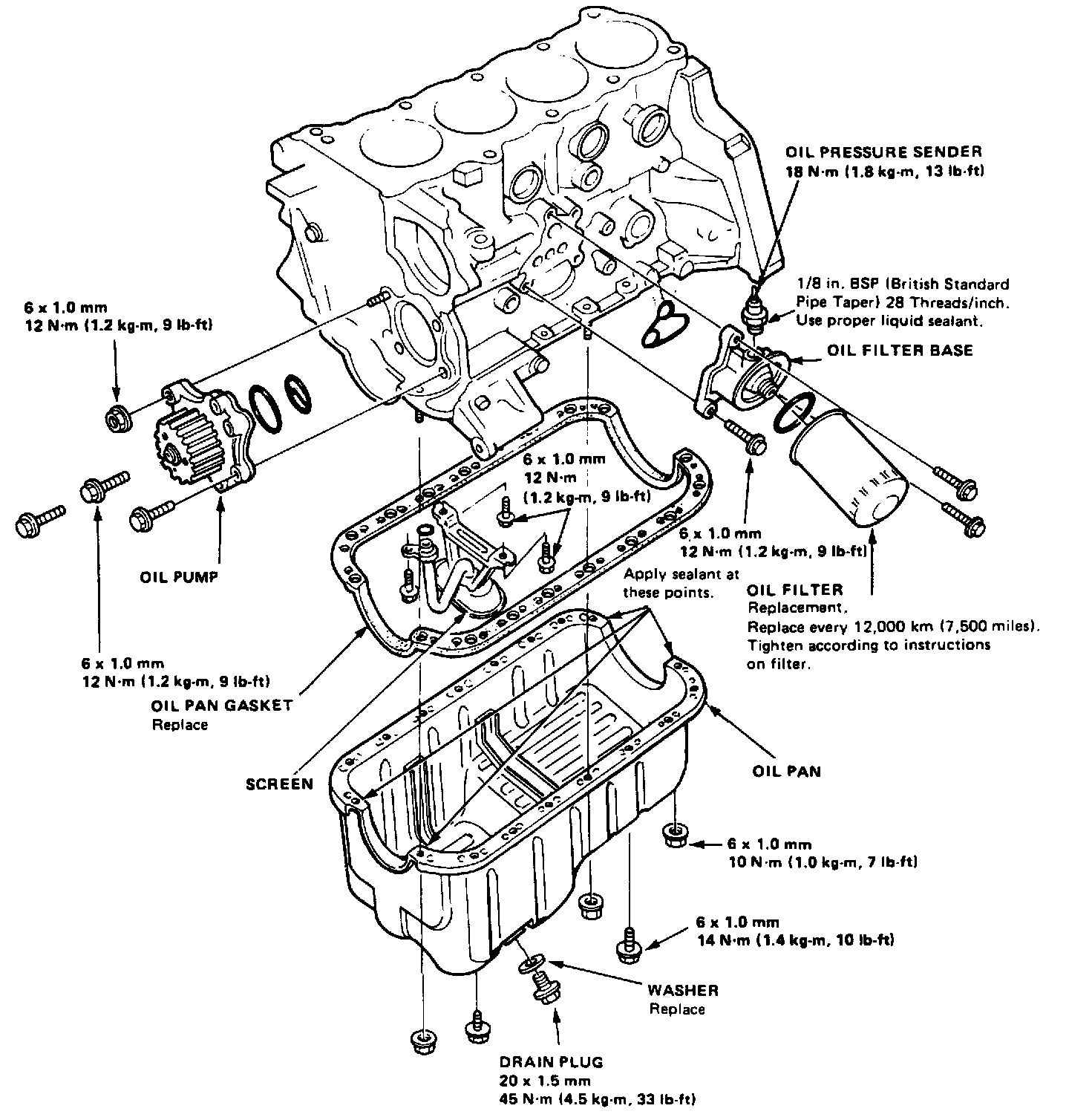

Oil Pan, Drain Plug, Oil Pump, Oil Filter Base, Oil Pressure Sender:

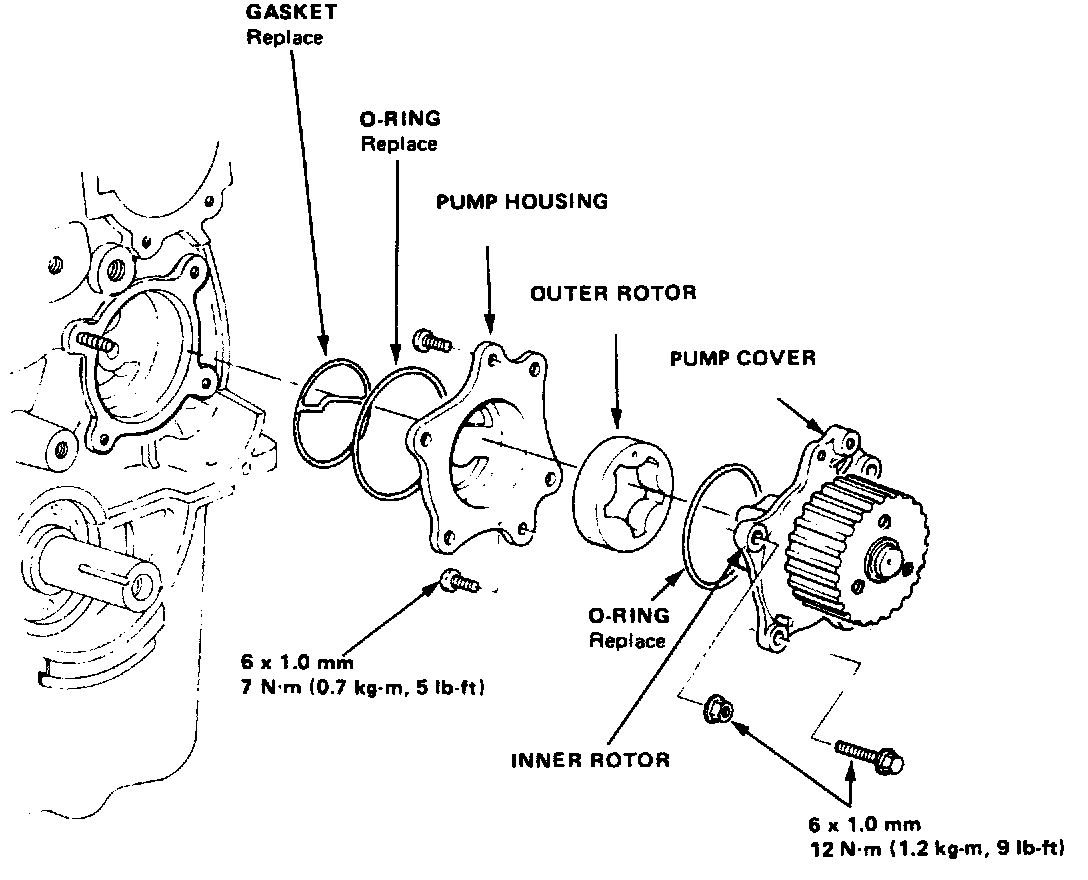

Oil Pump Components:
O/P Sender, Relief Valve:

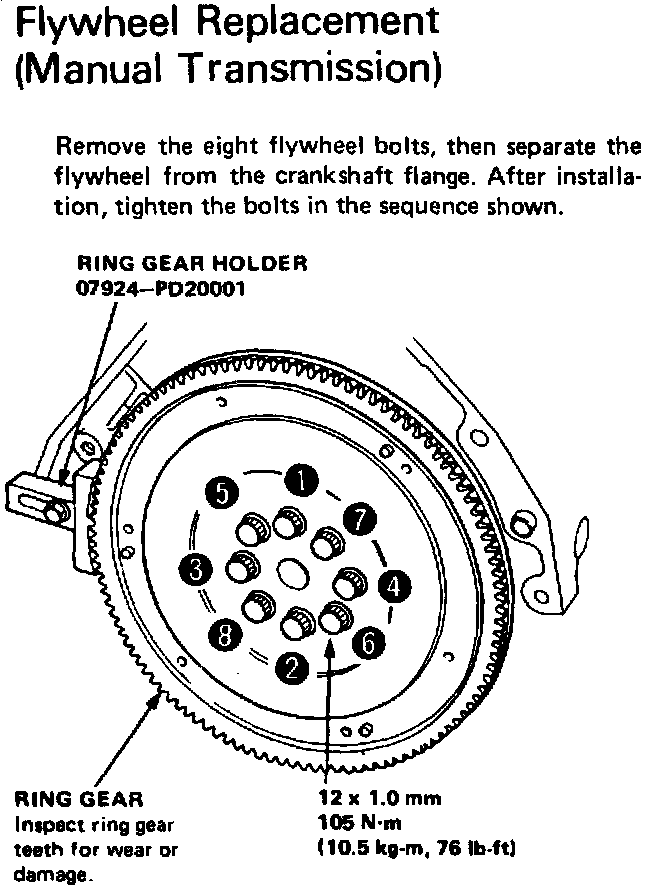

Flywheel Torque And Sequence (M/T):
Drive Plate Torque And Sequence (A/T):
