Condenser HVAC: Service and Repair

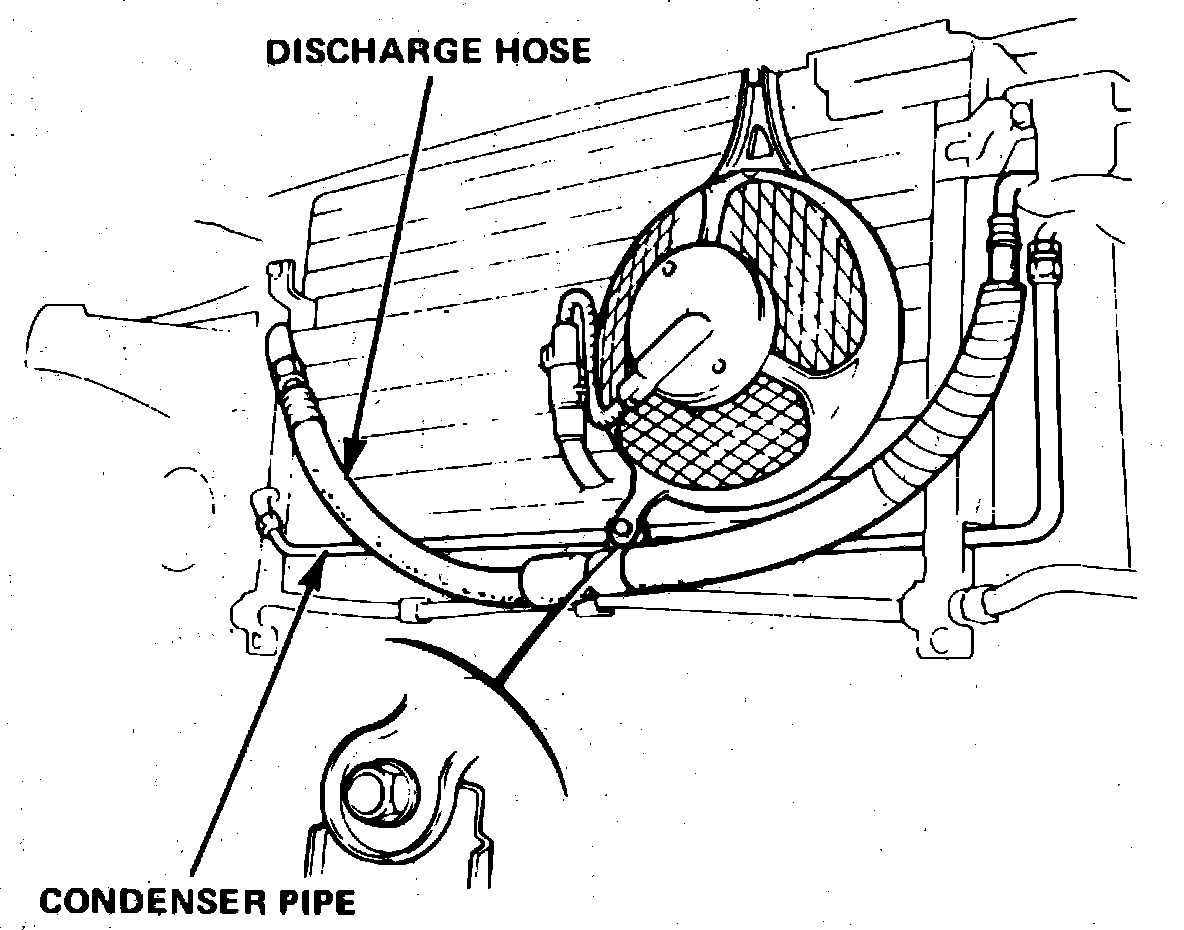

Fig. 9 Condenser Mounting:
1.
Disconnect battery ground cable.
2.
Discharge
refrigerant from A/C system.
3.
On all models except CRX, remove front bumper and grille.
4.
On all models, disconnect discharge hose from condenser,
Fig. 9. 5.
Remove the discharge hose clamp, then disconnect receiver hose.
6.
Disconnect wire harness from condenser.
7.
Remove condenser attaching bolts, then condenser.
