Blower Motor: Service and Repair

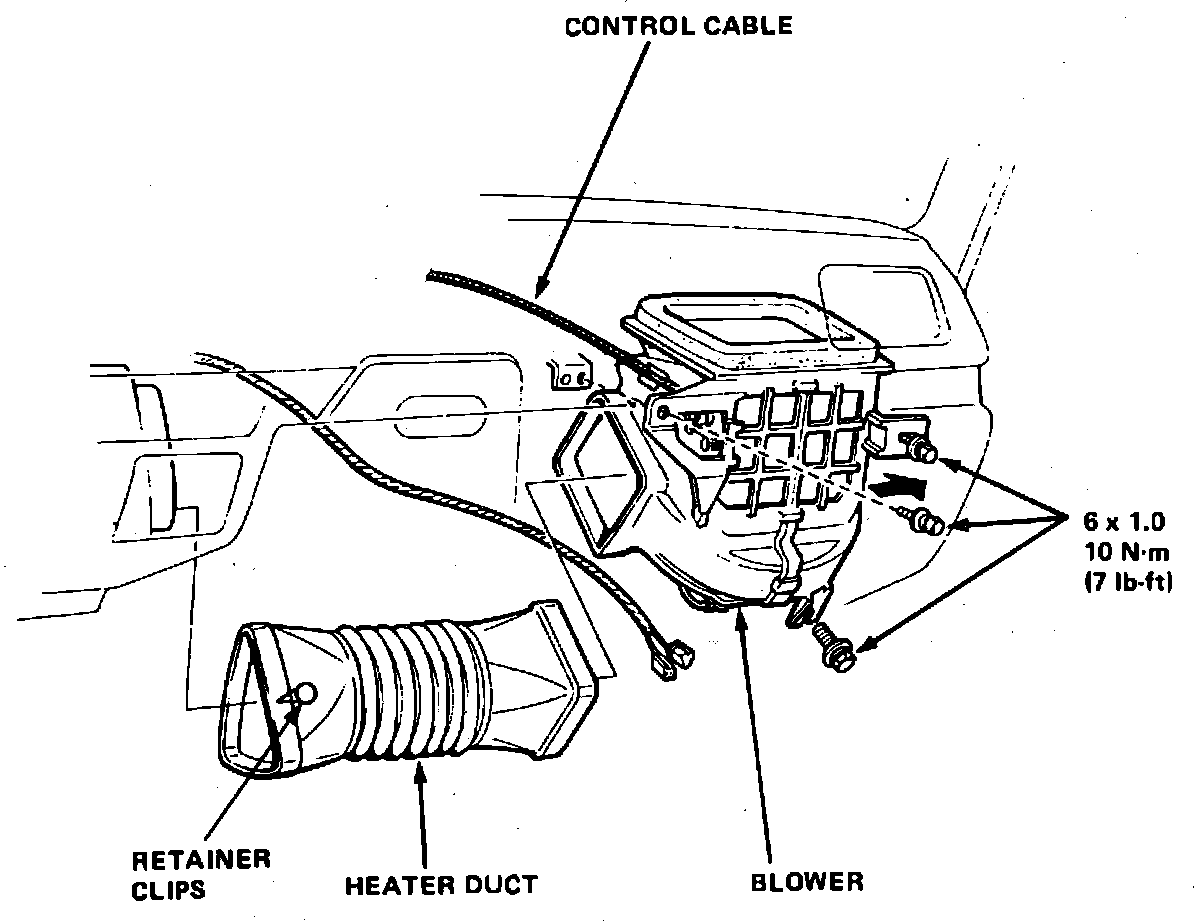

Fig. 2 Blower Motor Assembly Removal:

1. Disconnect battery ground cable.
2. Remove glove box.
3. On Civic hatchback and sedan, remove glove box frame.
4. Disconnect electrical connector and vacuum hose from blower.
5. Remove three blower mounting bolts, Fig. 2, then blower.

NOTE: On CRX models with A/C, remove evaporator assembly before removing blower.
6. Reverse procedure to install, ensuring that both ends of heater duct fit over blower assembly and heater flanges completely.
