System Diagram

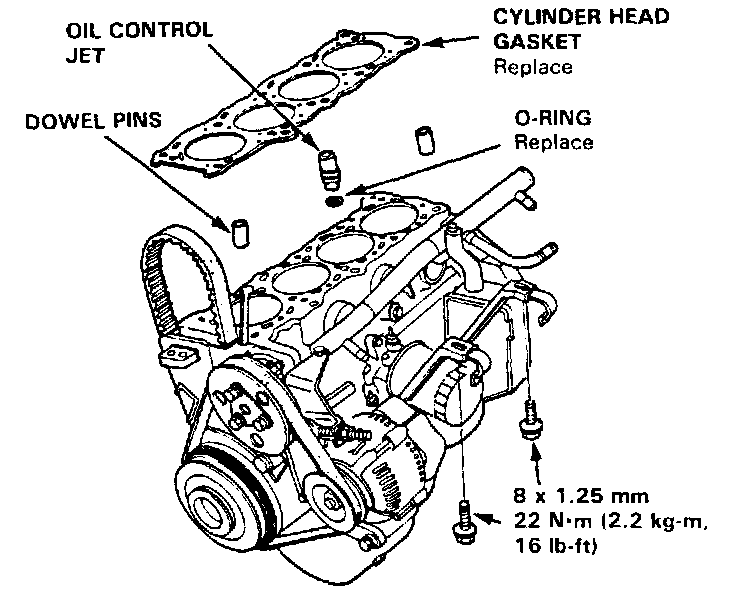

Upper Engine (CARB):
Valves, Rocker Arm Assy, Distributor (CARB):

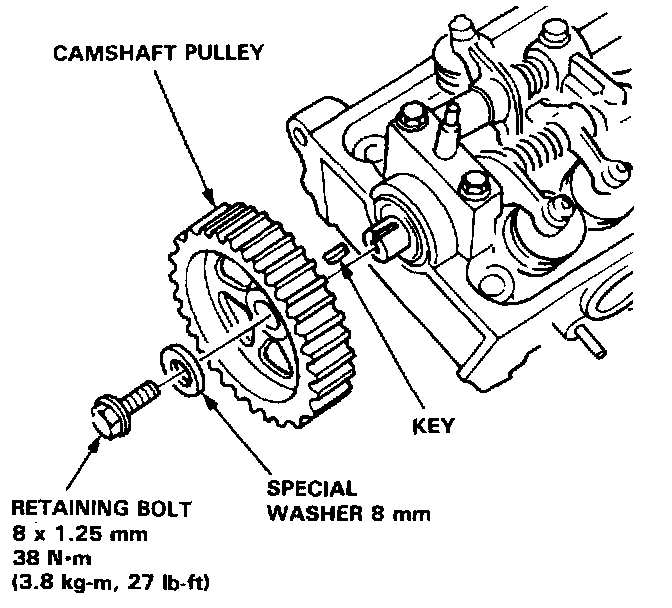

Camshaft Pulley:

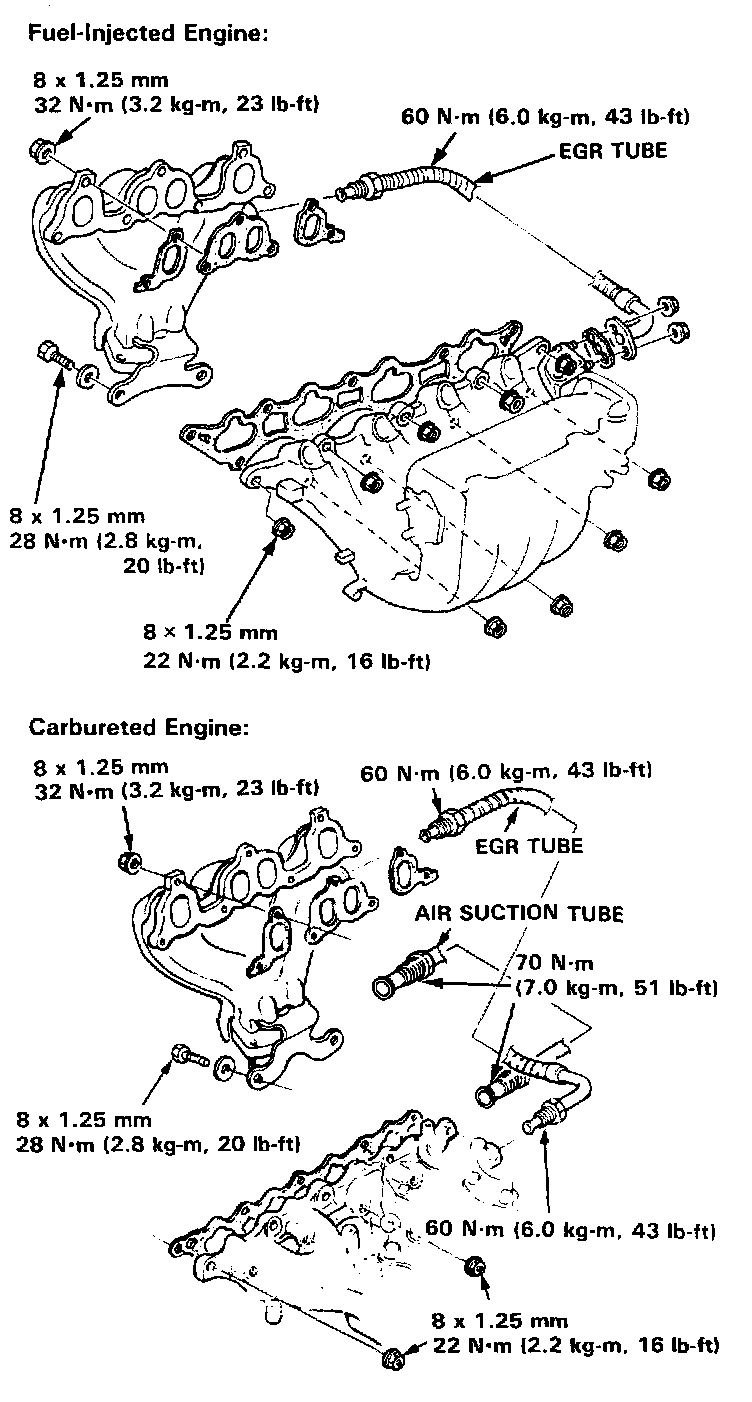

Intake/Exhaust Manifolds - Tighten Nuts In A Criss-cross Pattern In 2 or 3 Steps:
Manifold Brackets:
Timing Components:
Main Bearing Caps, Oil Pan, Flywheel/Flex Plate:
Piston And Connecting Rod:
Oil Pan, Drain Plug, Pickup Screen, Oil Pump, Oil Filter Base, Oil Pressure Sender:
Intake/Exhaust Manifolds (CARB):
