Front Door Window Motor: Testing and Inspection

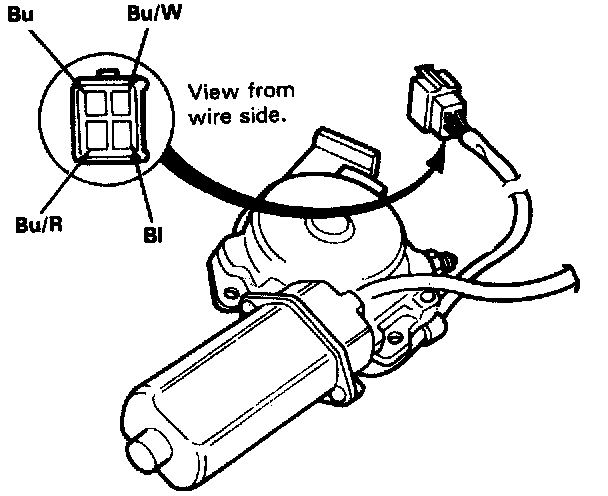

Driver's Door: For the driver's door, connect a battery positive lead to Bu/R and a ground lead to Bu/W. Then reverse the leads to be sure that the motor will run in both directions.

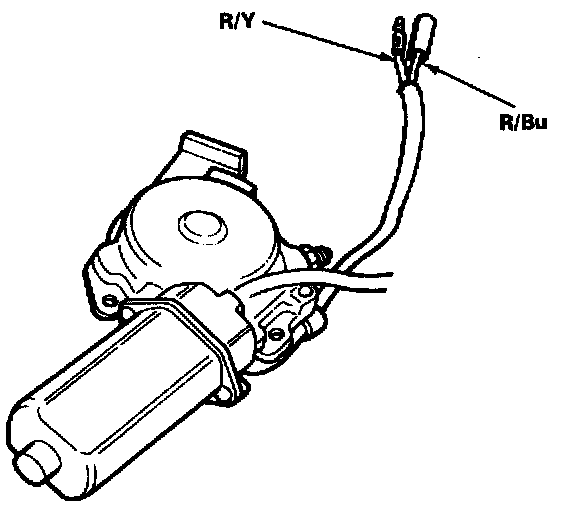

Passenger's Door: For the passenger door, connect a battery positive lead to one wire and a ground lead to the other wire. Then reverse the leads to be sure that the motor will run in both directions.
