Power Window Relay: Testing and Inspection

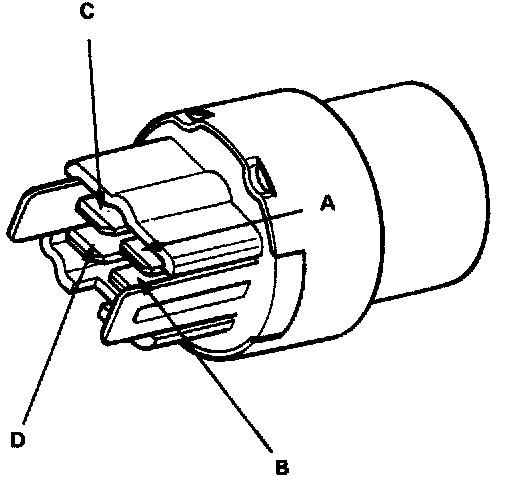

There should be continuity between A and B terminals, when the battery is connected to C (positive) and D (negative) terminals.

There should be no continuity when the battery is disconnected.
