Rear

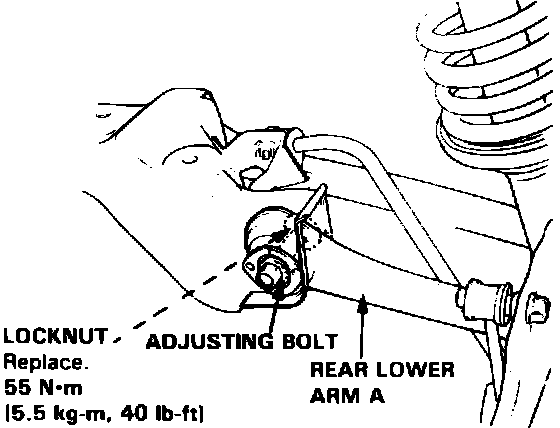

Fig. 6 Rear toe-in adjustment. 1986-88 Accord:
1.
Release parking brake.
2.
Hold adjusting bolt on rear lower arm and loosen locknut,
Fig. 6. 3.
Rotate adjusting bolt to obtain specified toe-in.
4.
Install new locknut and torque nut to 40 ft. lbs. while holding adjusting bolt, then ensure toe-in is still within specifications.
