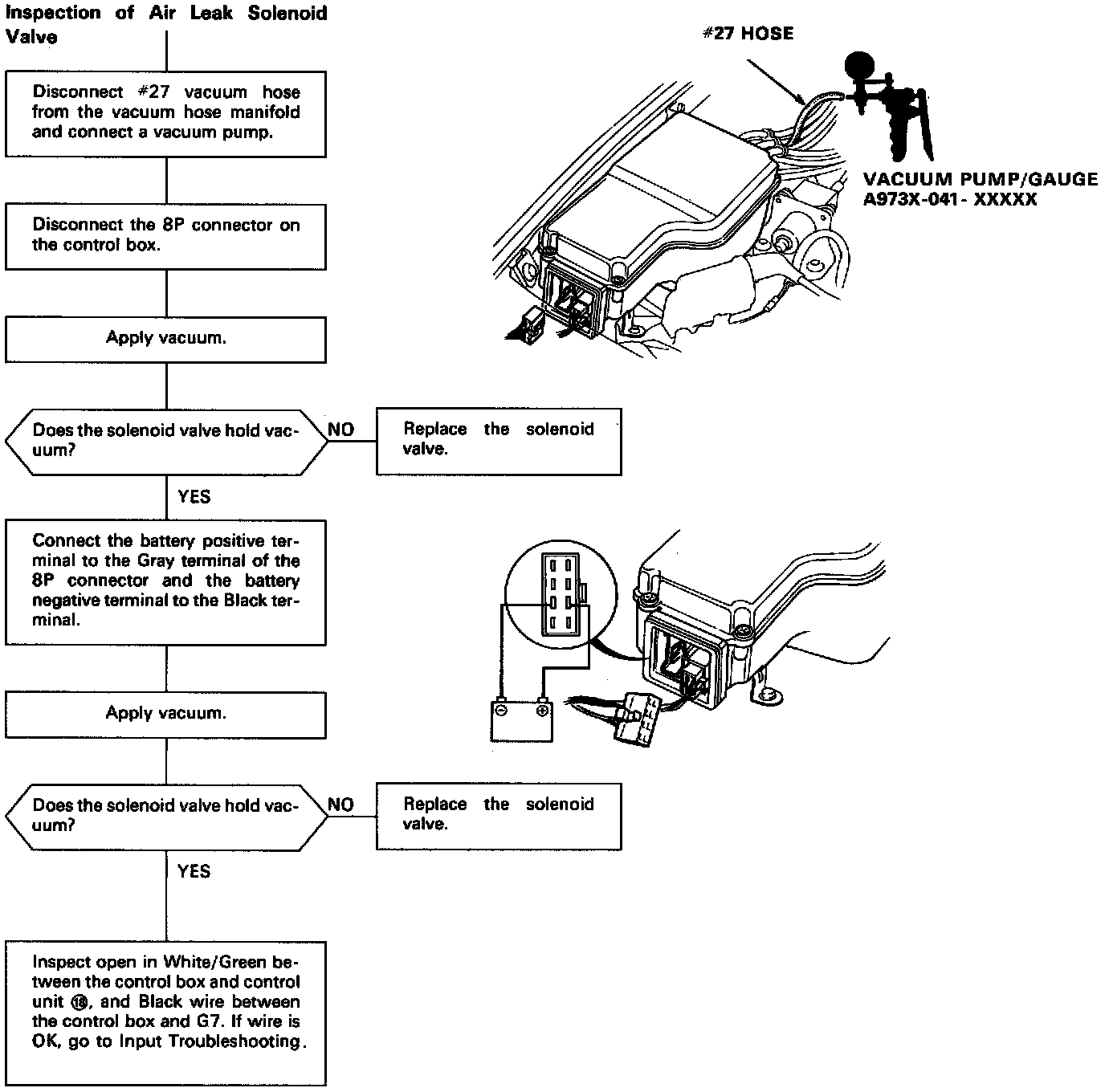

Air Leak Solenoid Valve
The air leak solenoid valve supplies additional air to the intake manifold. The solenoid valve opens when the engine is running at idle with high intake air temperature. The solenoid valve operates to decrease idle emissions when the air injection to the exhaust manifold is cut.
