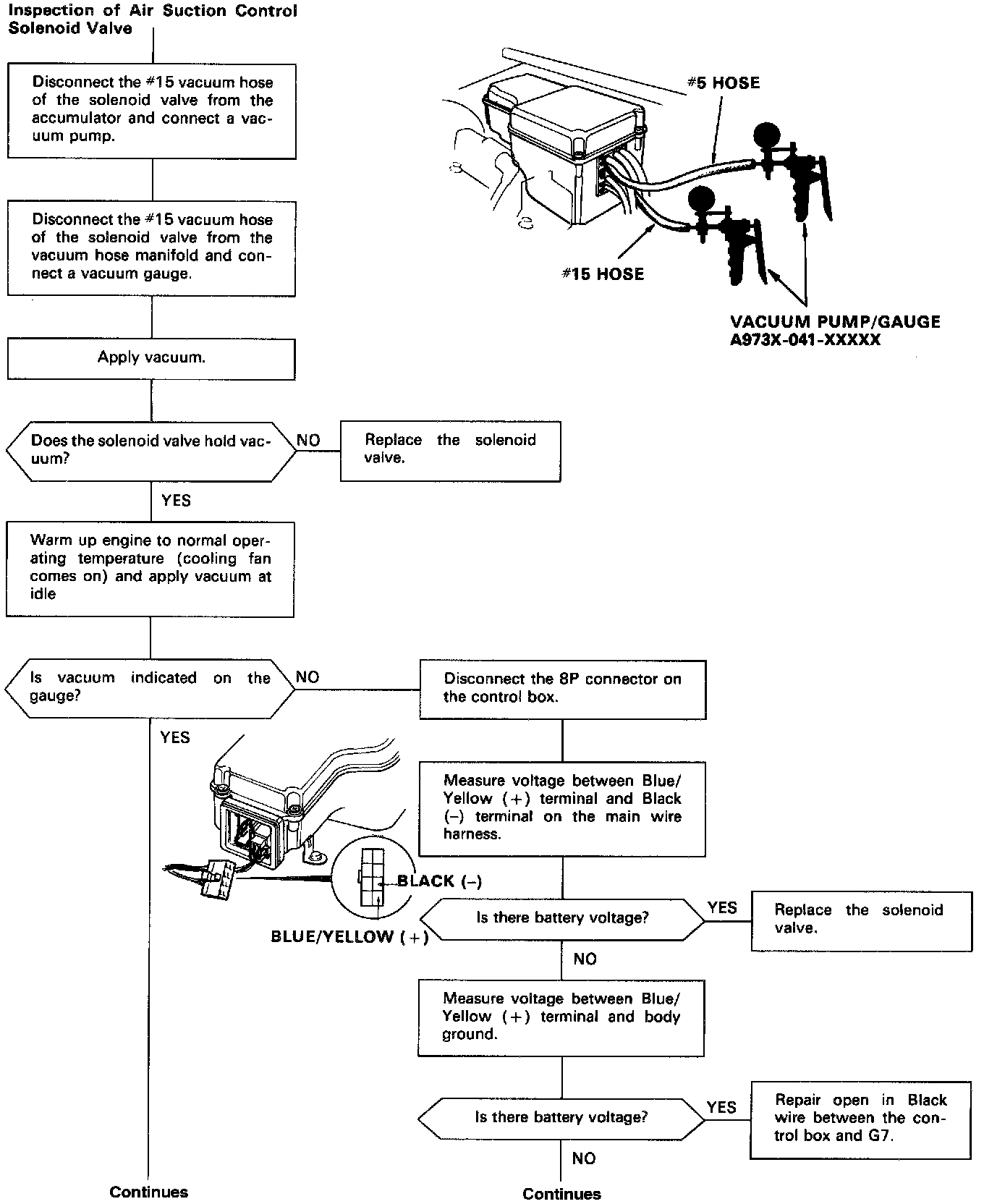

Air Suction Control Solenoid Valve








When the air suction control solenoid valve is activated, manifold vacuum raises the diaphragm valve of the air suction valve and fresh air from the air cleaner is induced to the exhaust manifold through the reed valve of the air suction valve by pulsation of the exhaust gas.
