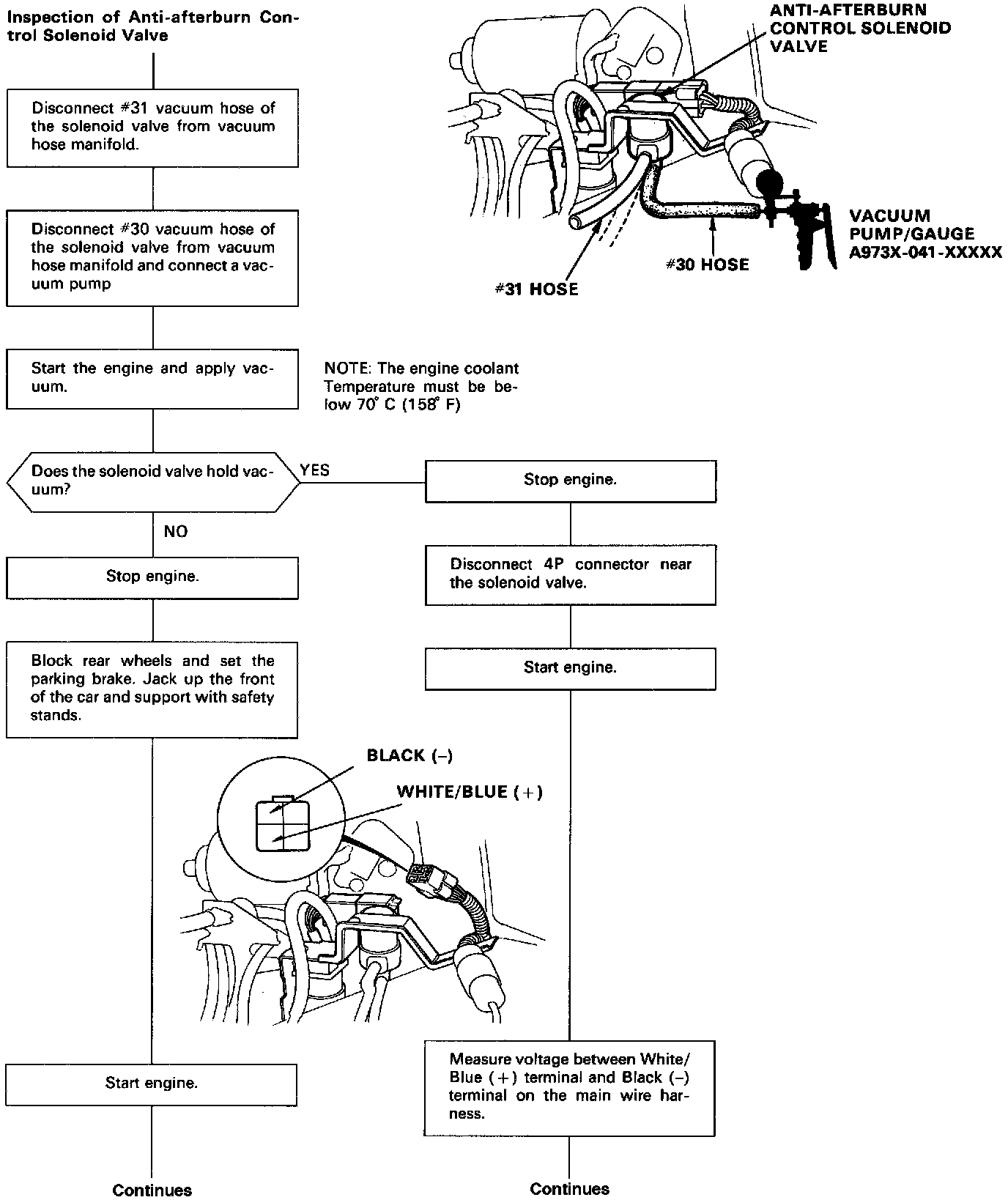

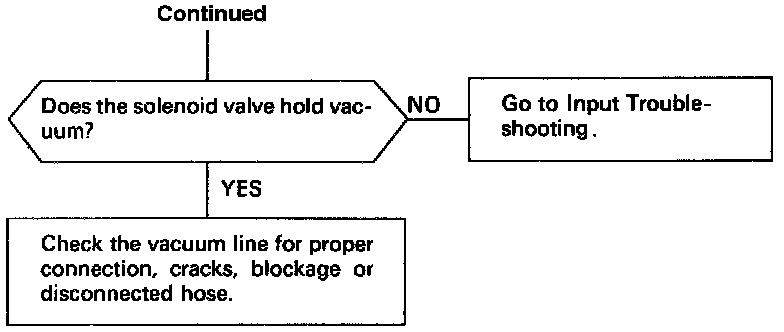

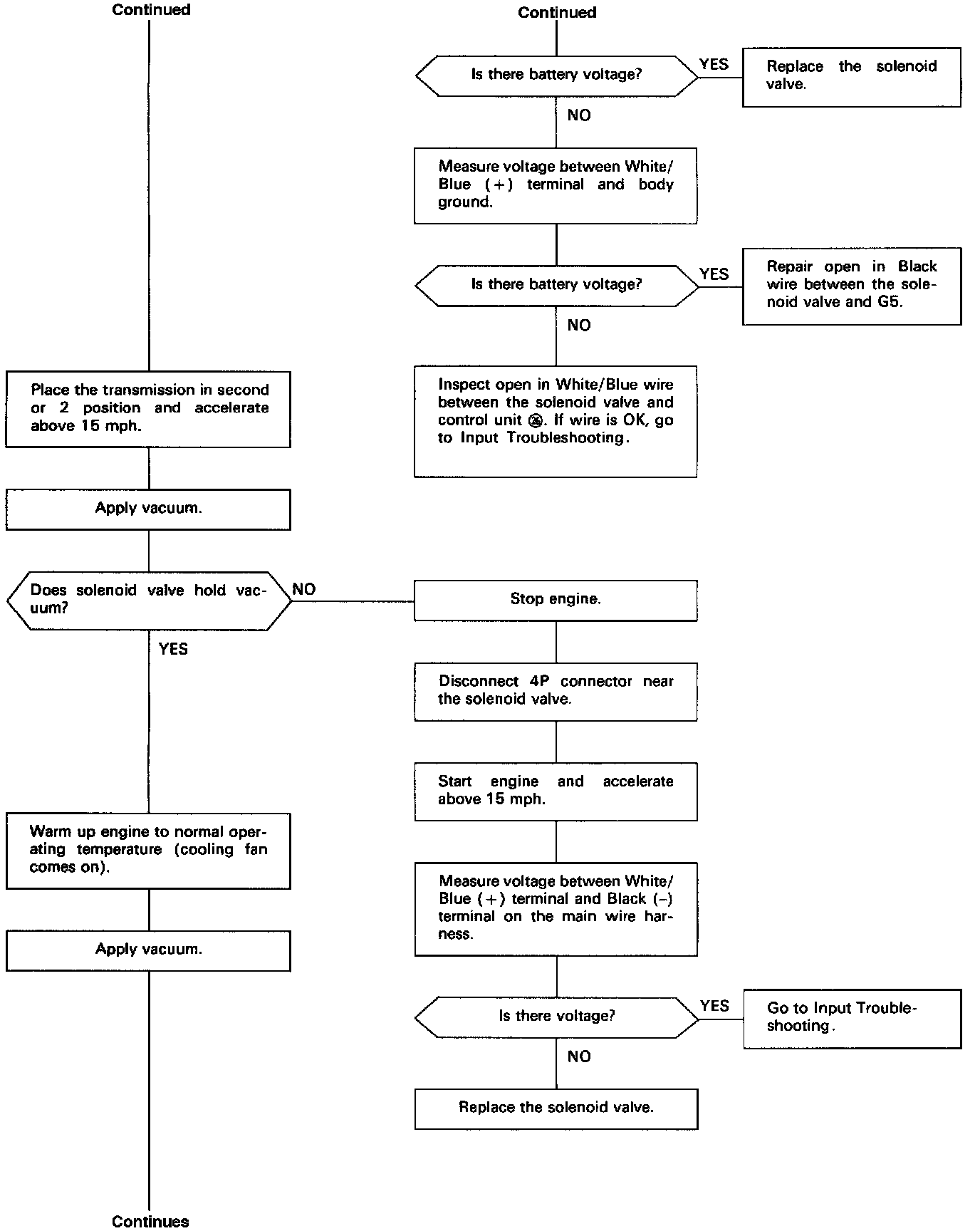

Anti-Afterburn Control Solenoid Valve











The anti-afterburn control solenoid valve is provided to control the operation of the anti-afterburn valve by introducing vacuum to the diaphragm holding the valve closed. The anti-afterburn valve senses intake manifold vacuum changes during gear shifting or deceleration, and supplies fresh air to the intake manifold in order to prevent the escape of unburned fuel.
