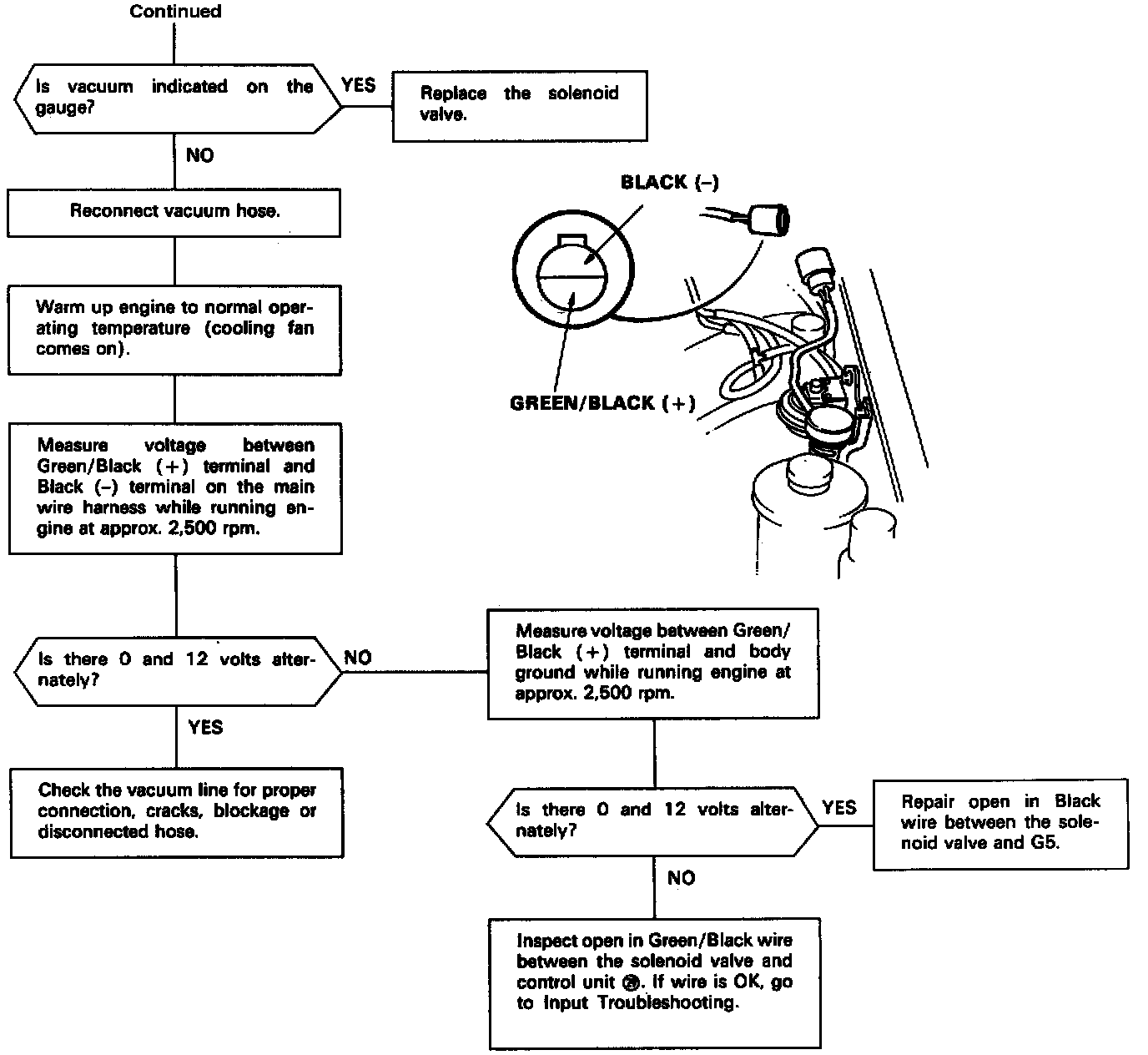

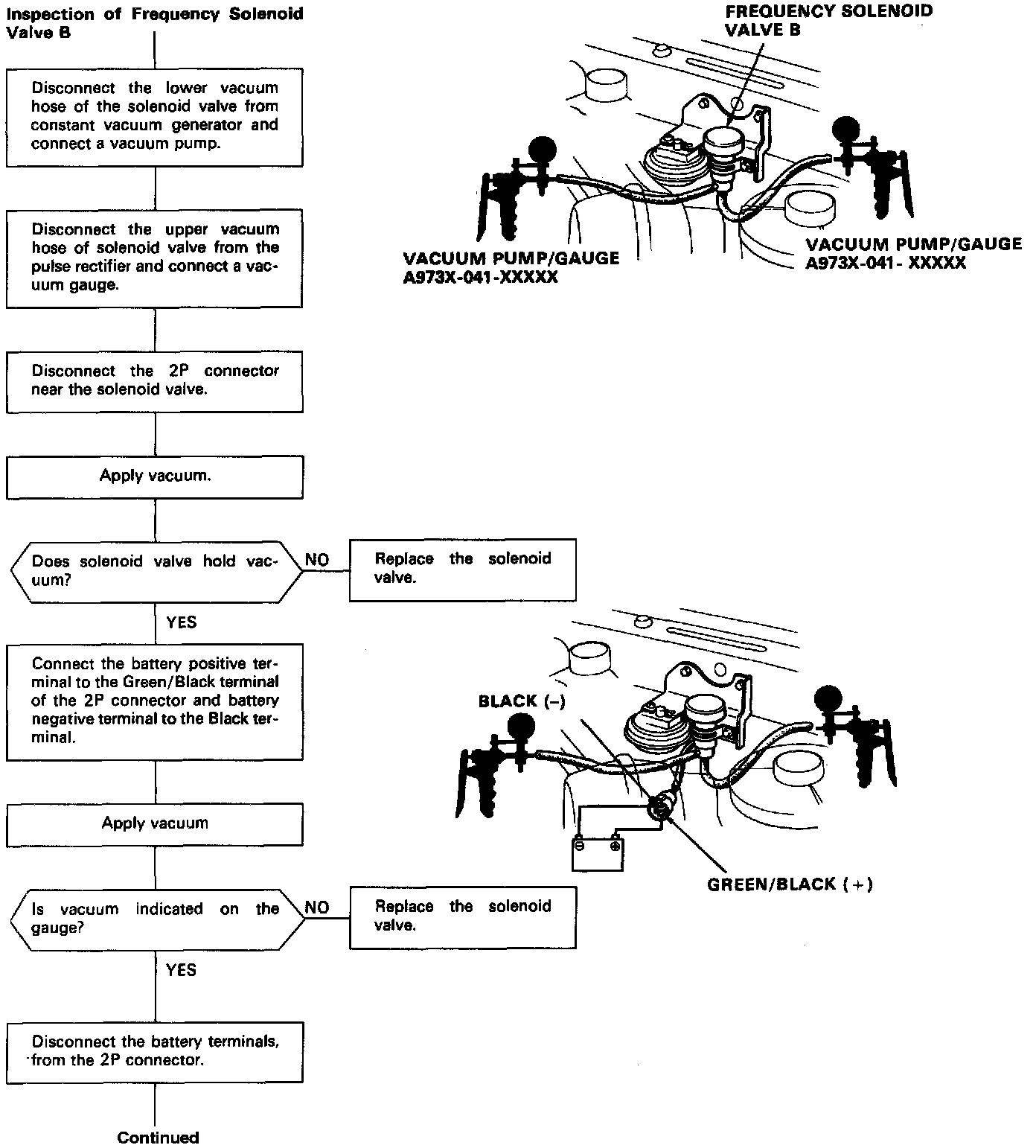

Frequency Solenoid Valve B








The frequency solenoid valve B, a part of the X-system, gets signals from the [1][2]control unit to open air control valve B when there is a rich air-fuel mixture.
