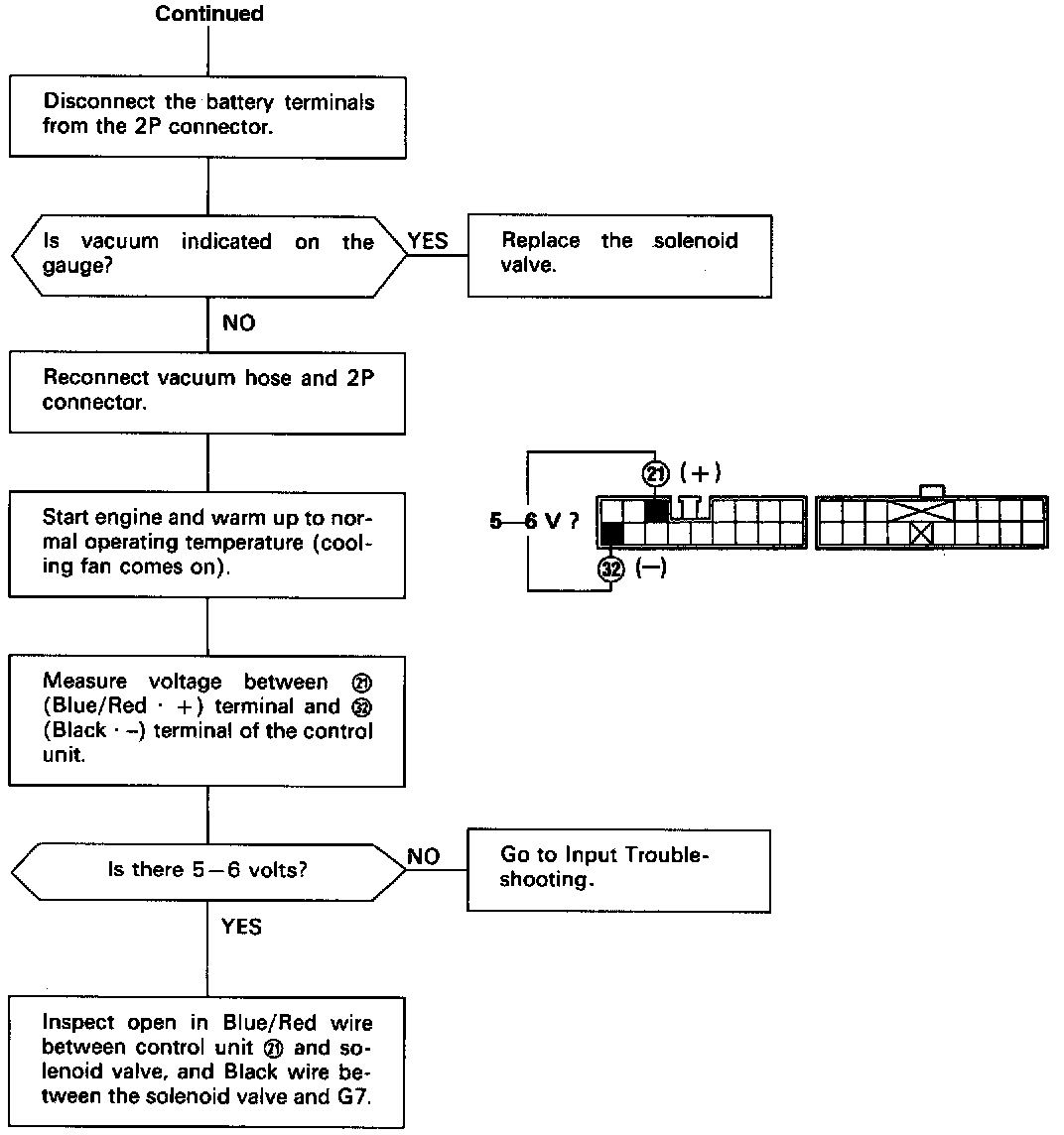

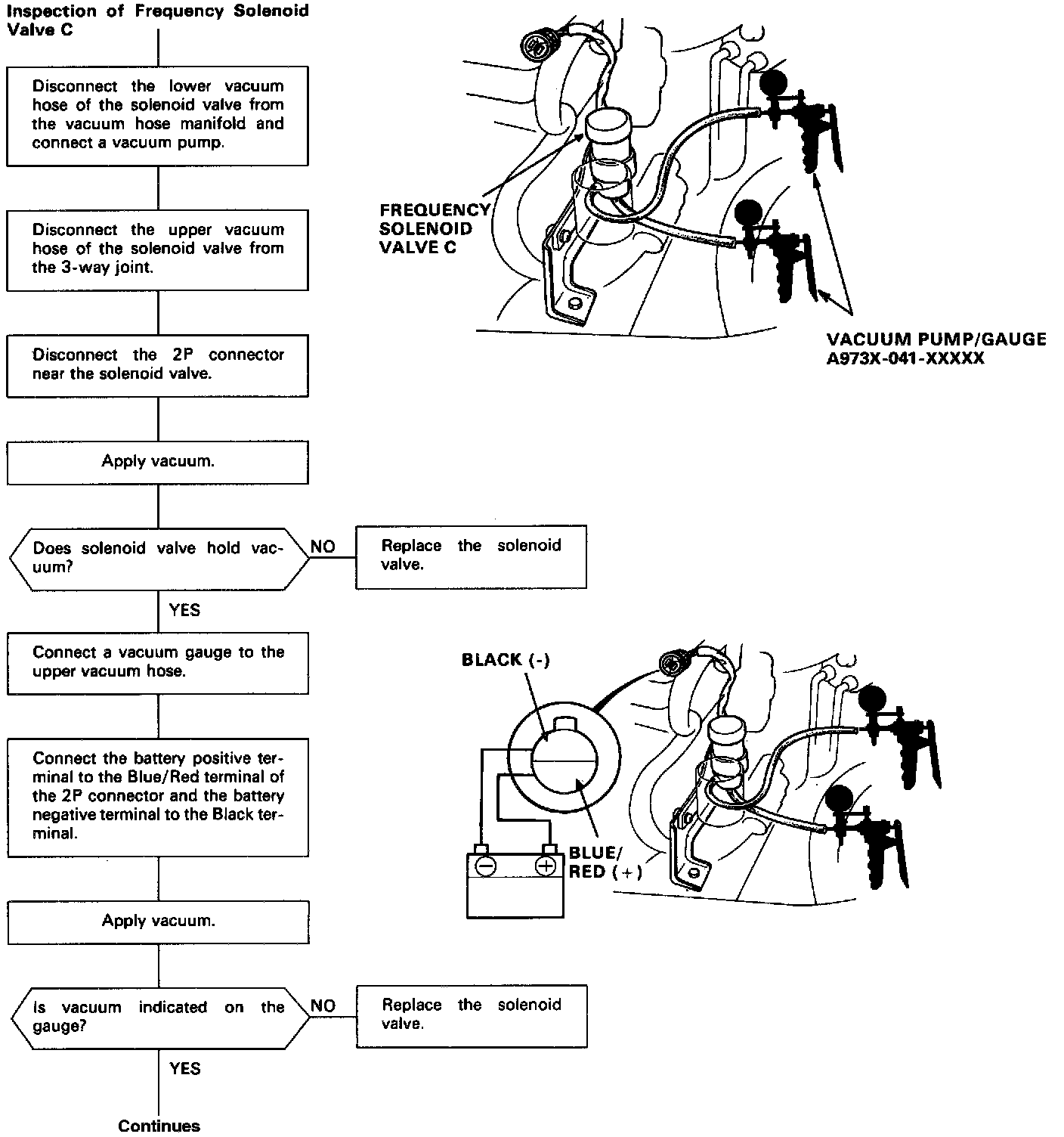

Frequency Solenoid Valve C (A/T only)








(A/T Only)
The frequency solenoid valve C is energized when the engine speed is above or below 730 rpm and the coolant temperature is above 6O°C (14O°F). It controls the vacuum to the throttle controller.
