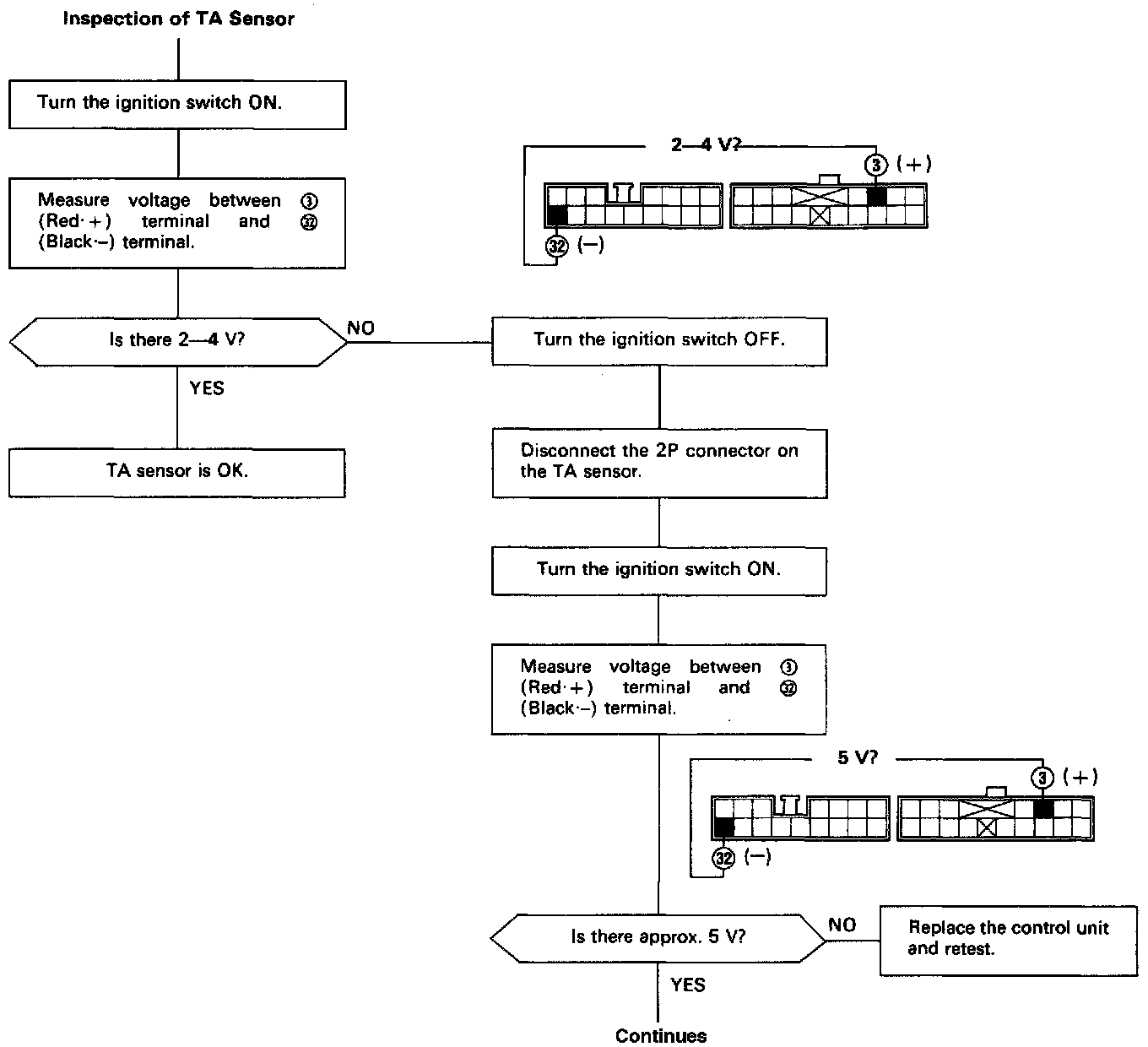

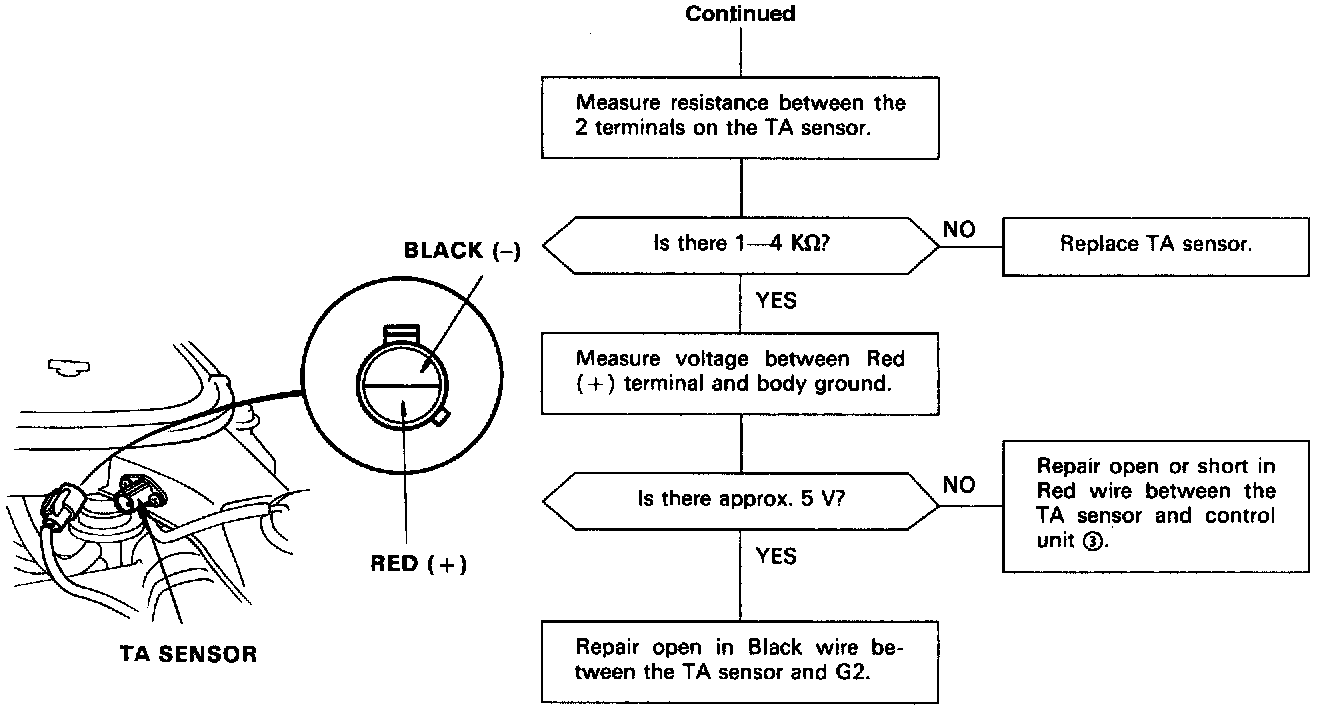

Intake Air Temperature Sensor











(TA) Sensor

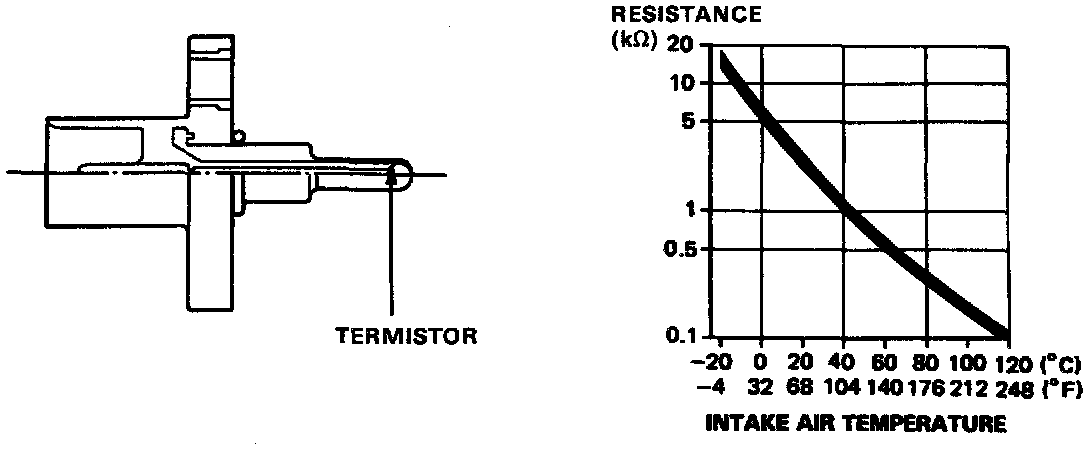

The intake air temperature (TA) sensor is a temperature dependant resistor (thermistor). The resistance of the thermistor decreases as the intake air temperature increases as shown.
