Distributor Overhaul - Hitachi

Hitachi Distributor:

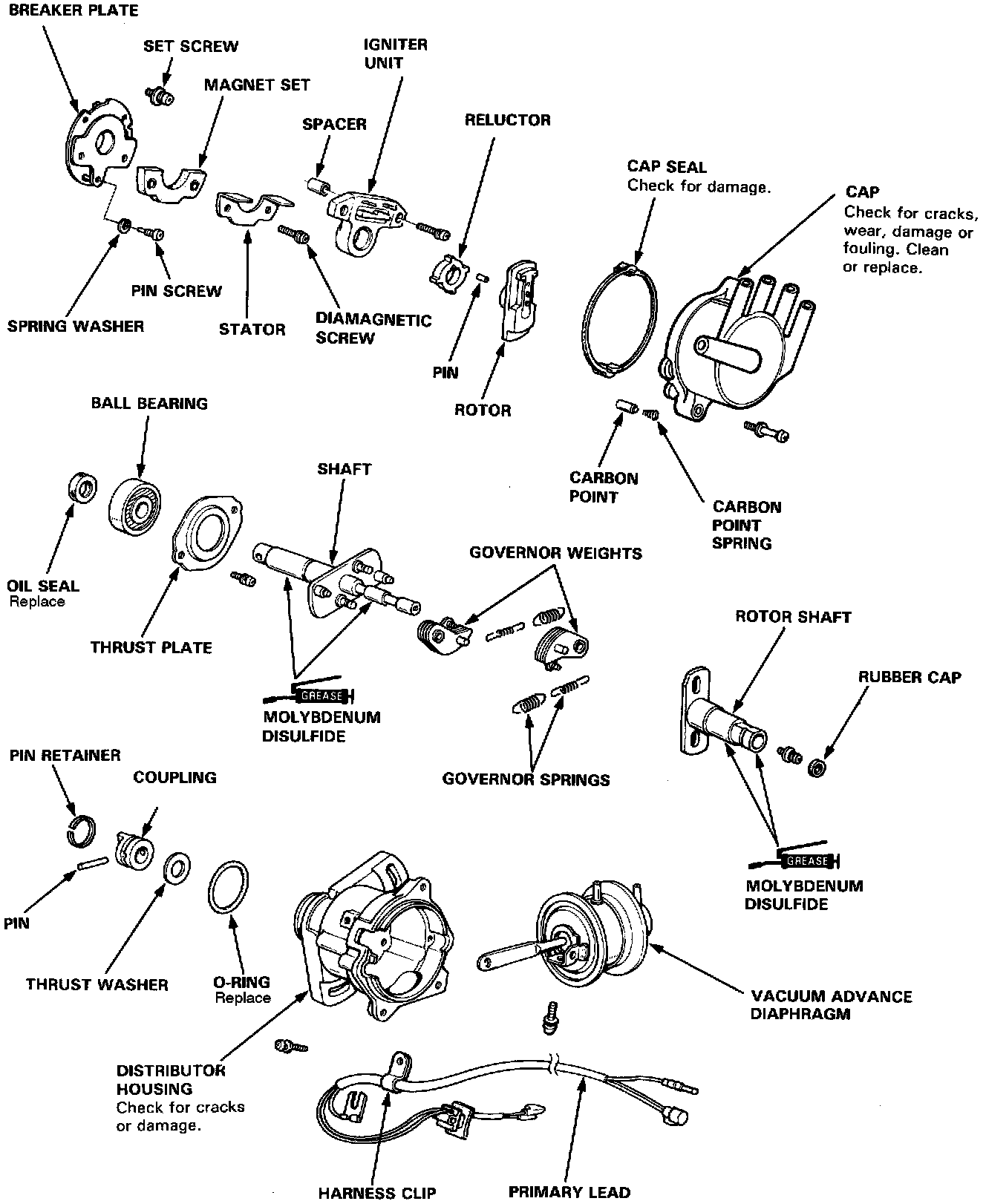

Hitachi Distributor Overhaul

NOTE: After installing the reluctor, adjust the air gaps between the stator and reluctor. Refer to Distributor Top End Inspection. Testing and Inspection
