Reluctor Replacement
Reluctor Replacement. 1.

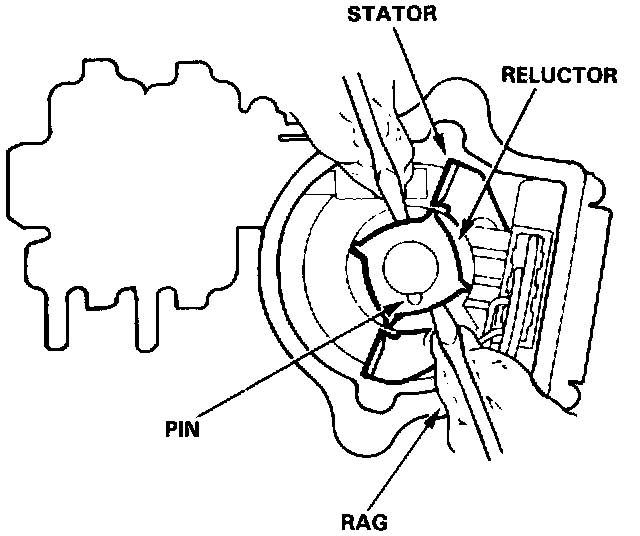

Carefully pry up the reluctor by using two screwdrivers as shown. Do not damage the reluctor and stator.
2.
When installing the reluctor, be sure to drive in the pin with its gap away from the shaft.
NOTE: The number or letter manufacturing code on the reluctor must always face up.
