Engine Control Module: Testing and Inspection

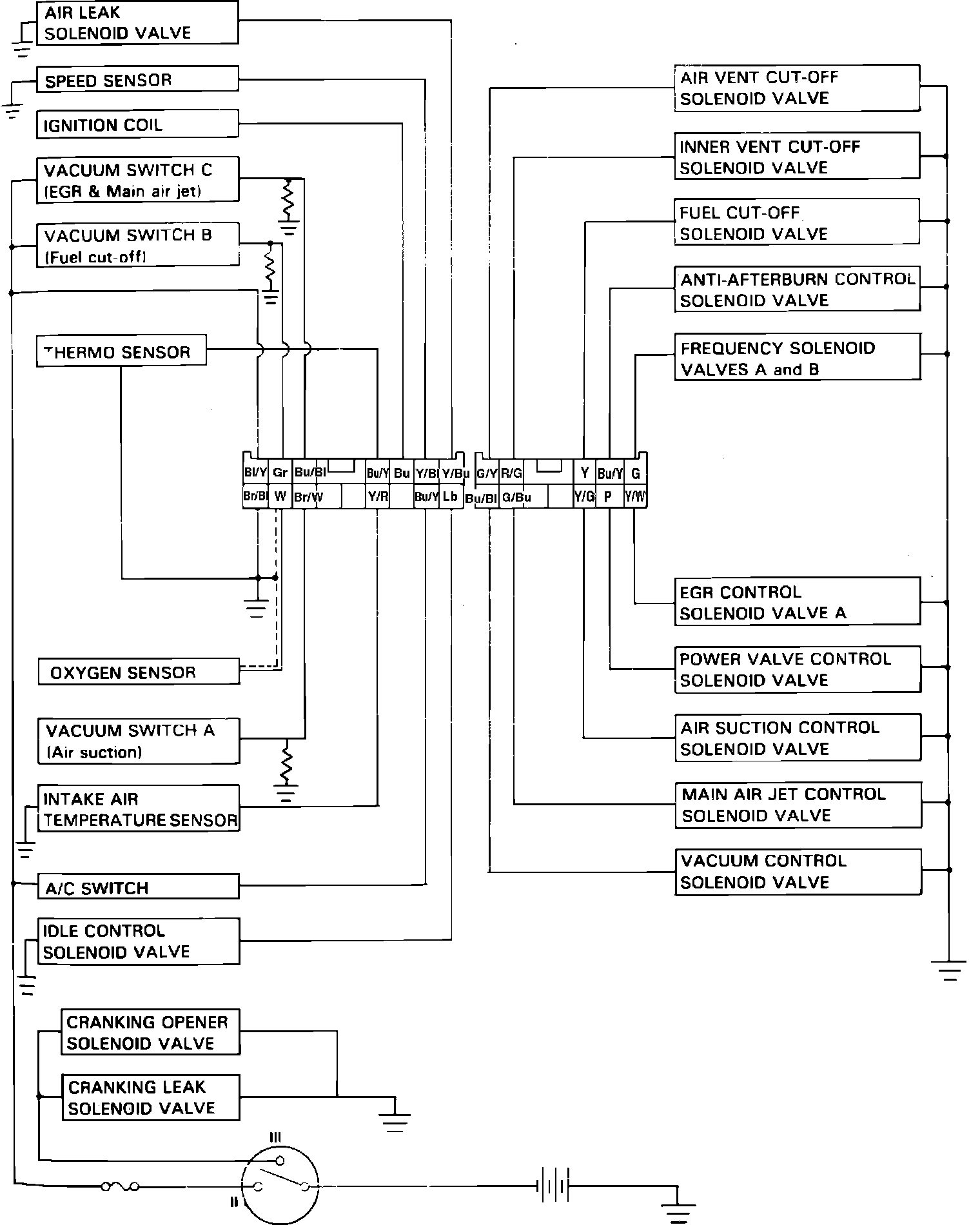

Fig. 44 Control Unit Connector Wiring Schematic.:

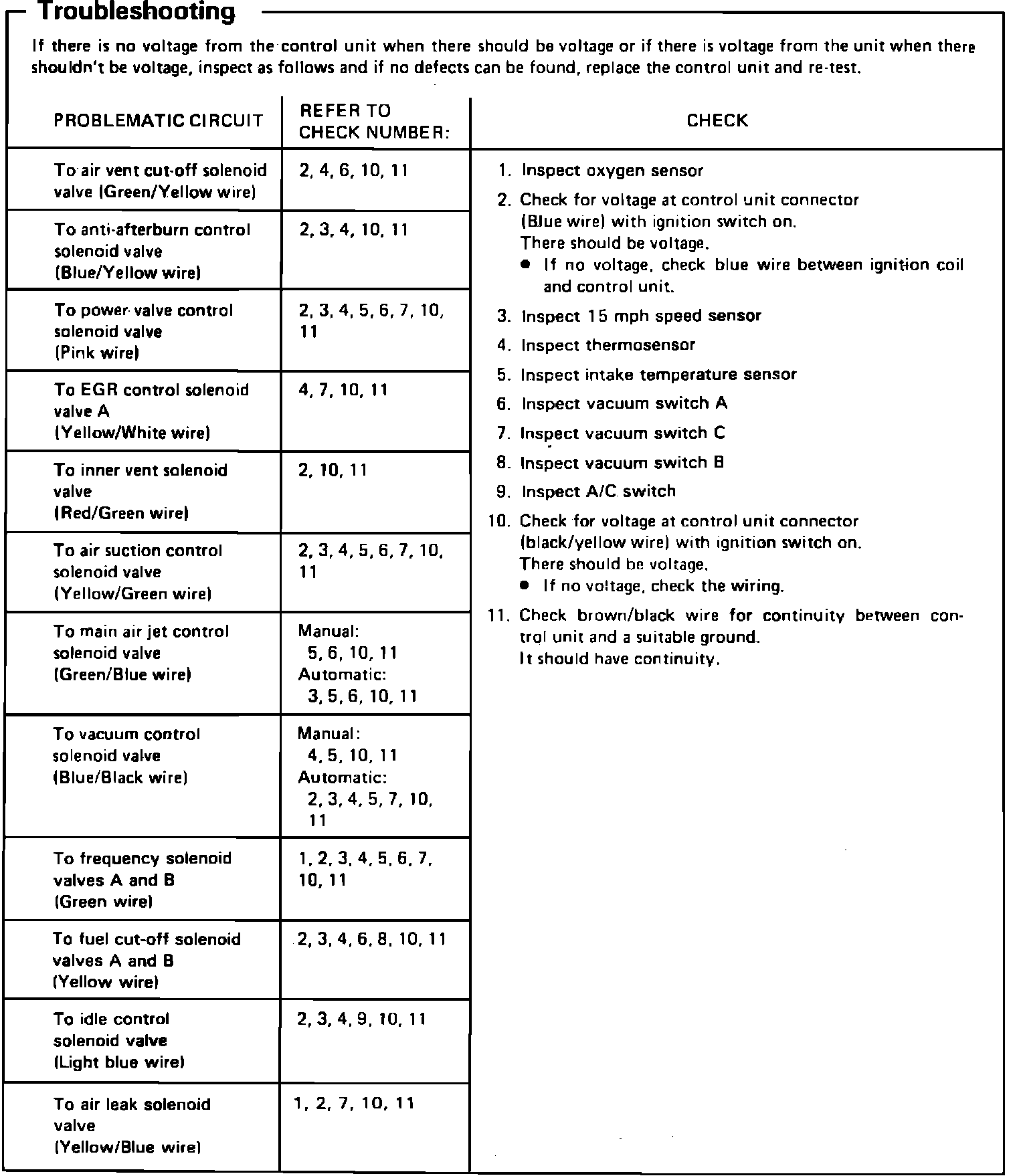

Fig. 46 Control Unit Troubleshooting Chart.:
Refer to
Figs. 44 and 46, then perform checks as necessary.
