Expansion Valve: Testing and Inspection

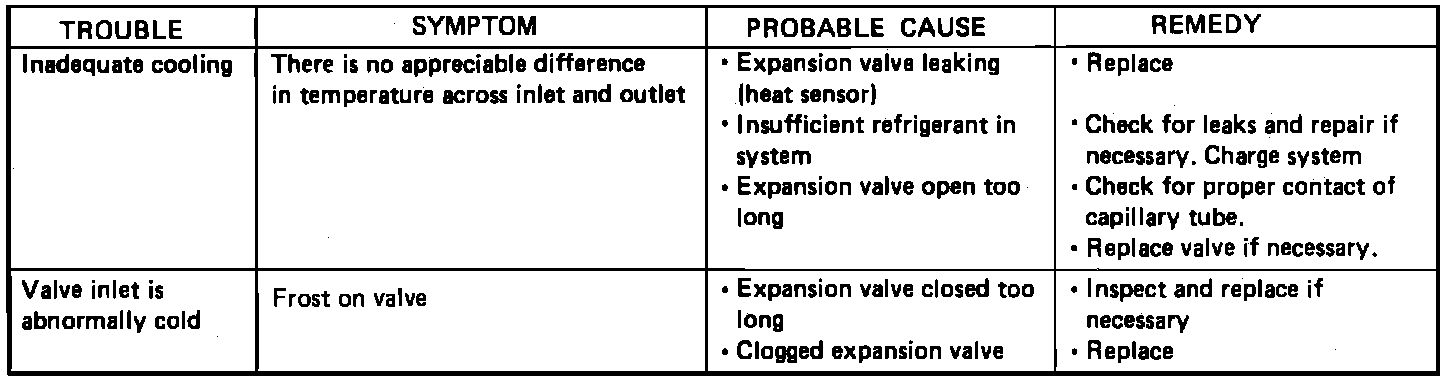

Fig. 8 Expansion Valve Diagnosis Chart:
Faulty
expansion valves will be indicated by low suction and discharge pressures on the manifold gauge set. In most cases the power element fails and the valve closes. Occasionally the inlet screen becomes clogged with contamination or desicant beads loose in the system.
