Battery - Testing Equipment

90honda02
Model Applicable To

ALL ALL
File Under Bulletin No.

89-037
ELECTRICAL Issue Date

NOV 24, 1989

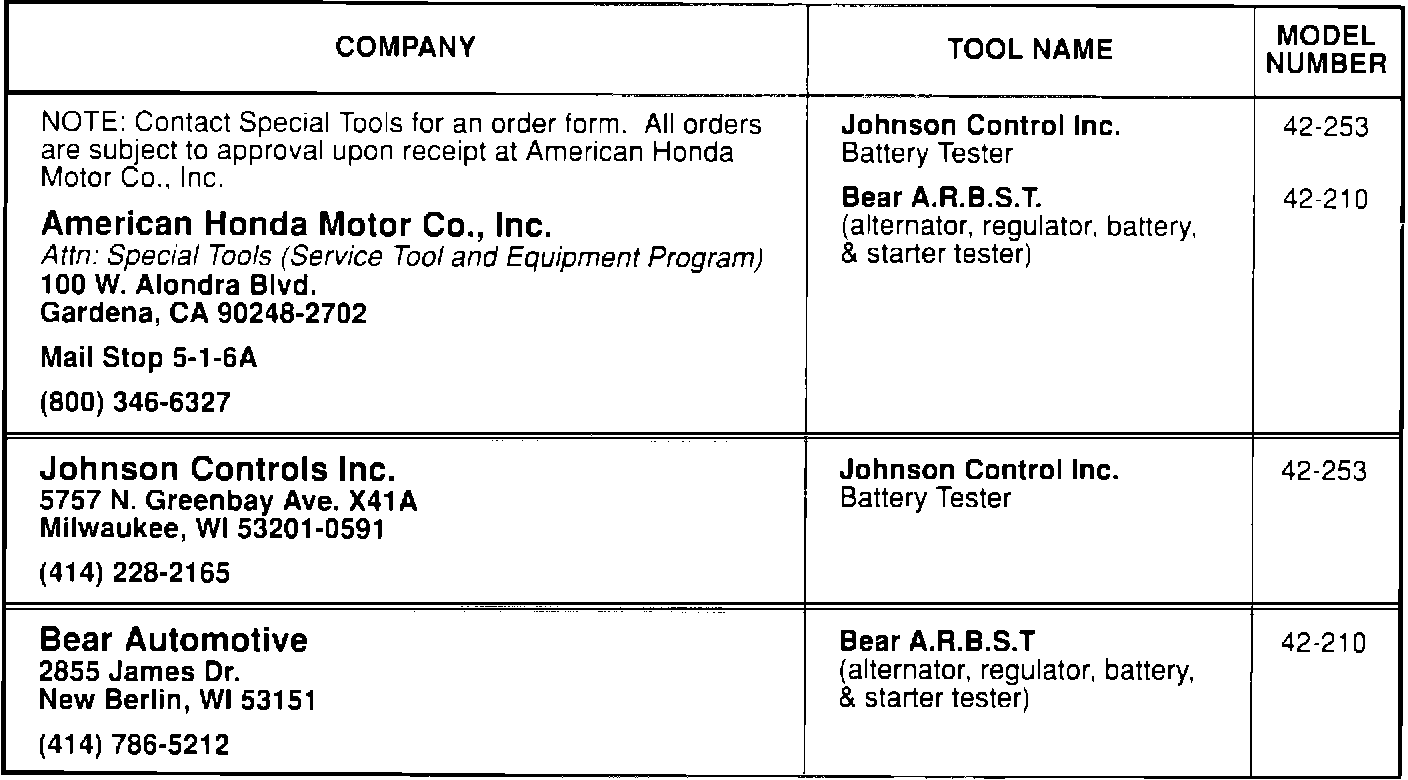

The testing equipment can be purchased through American Honda's Service Tool and Equipment Program or directly from the manufacturer.

The battery testing equipment listed in this bulletin is required to test batteries in Honda cars (see Section 3.9 of your Automobile Dealer Sales and Service Agreement). Select the tester that will best suit your dealership. Equipment testing capabilities are listed on page two.

NOTE: Equipment costs will vary from vendor to vendor.
WARRANTY INFORMATION

Both testers are warranted by Bear Automotive Service Equipment Company. Equipm.ent obtained through American Honda comes with an additional 3 year warranty on the CPU board.
EQUIPMENT RETURN INFORMATION

To return equipment purchased from American Honda, Johnson Controls, or Bear Automotive, it will be necessary to first contact American Honda; Special Tools.

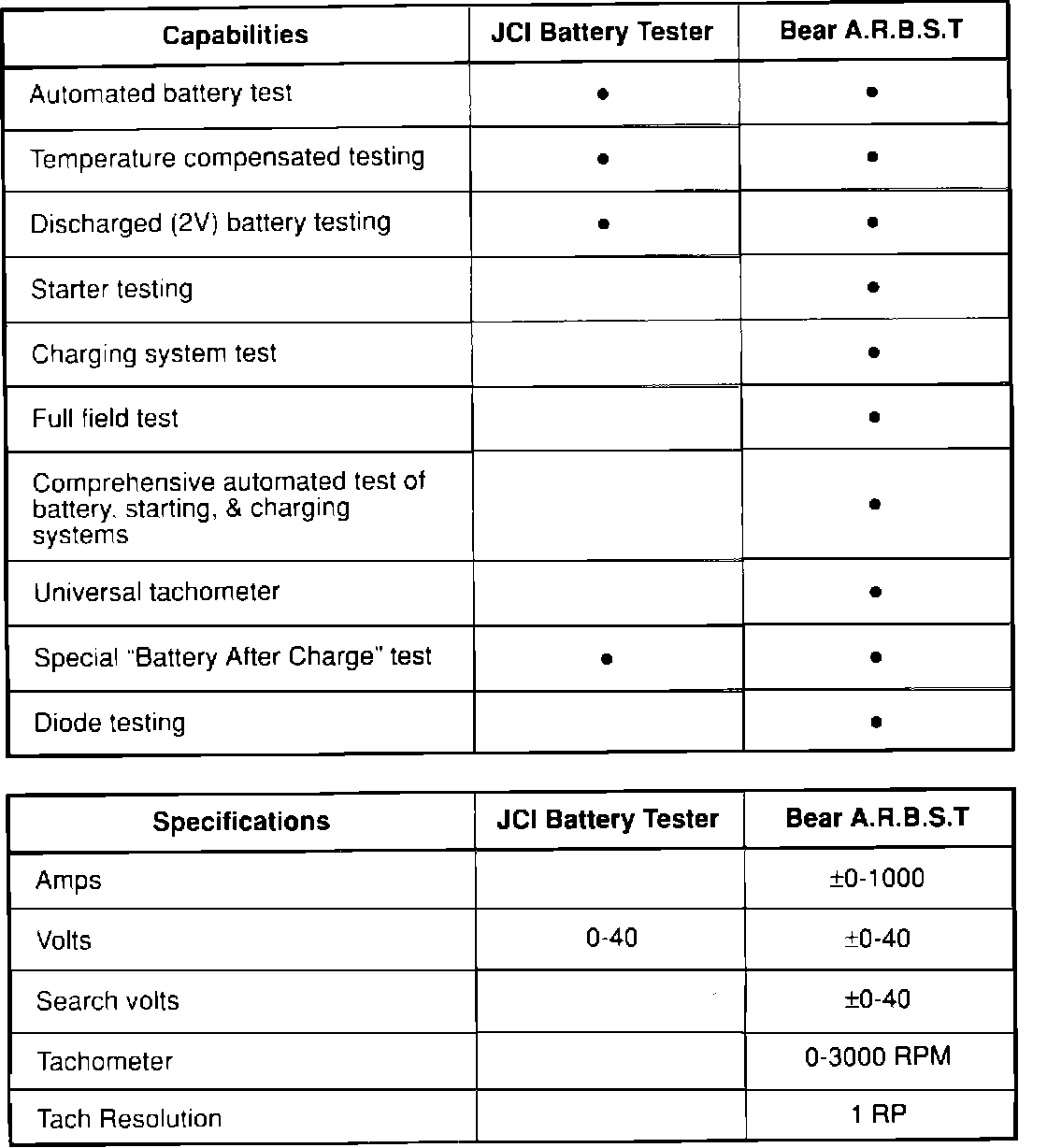

TESTING CAPABILITIES AND SPECIFICATIONS
