Back-Up Light Switch
1.
Test back-up light switch by placing gearshift lever in reverse and turning ignition switch to ON.
2.
If back-up lights do not go on, check the fuse.
3.
If the fuse is good, remove the back-up light switch.
4.

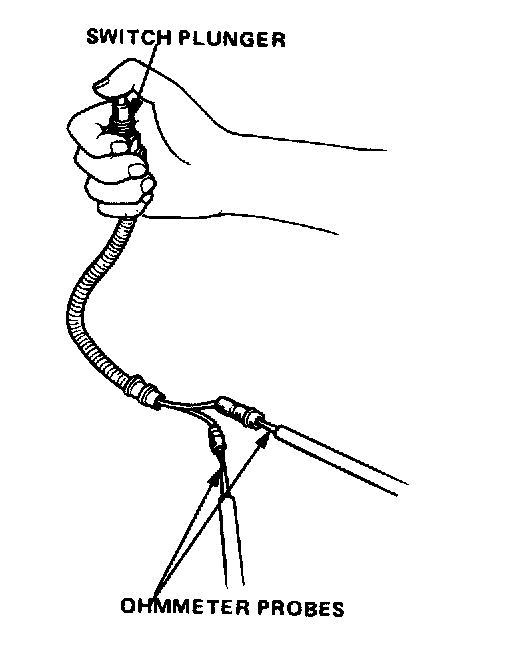

Using an ohmmeter, check for switch continuity by pressing in on switch plunger. If no continuity, replace switch.
