EFE Heater System

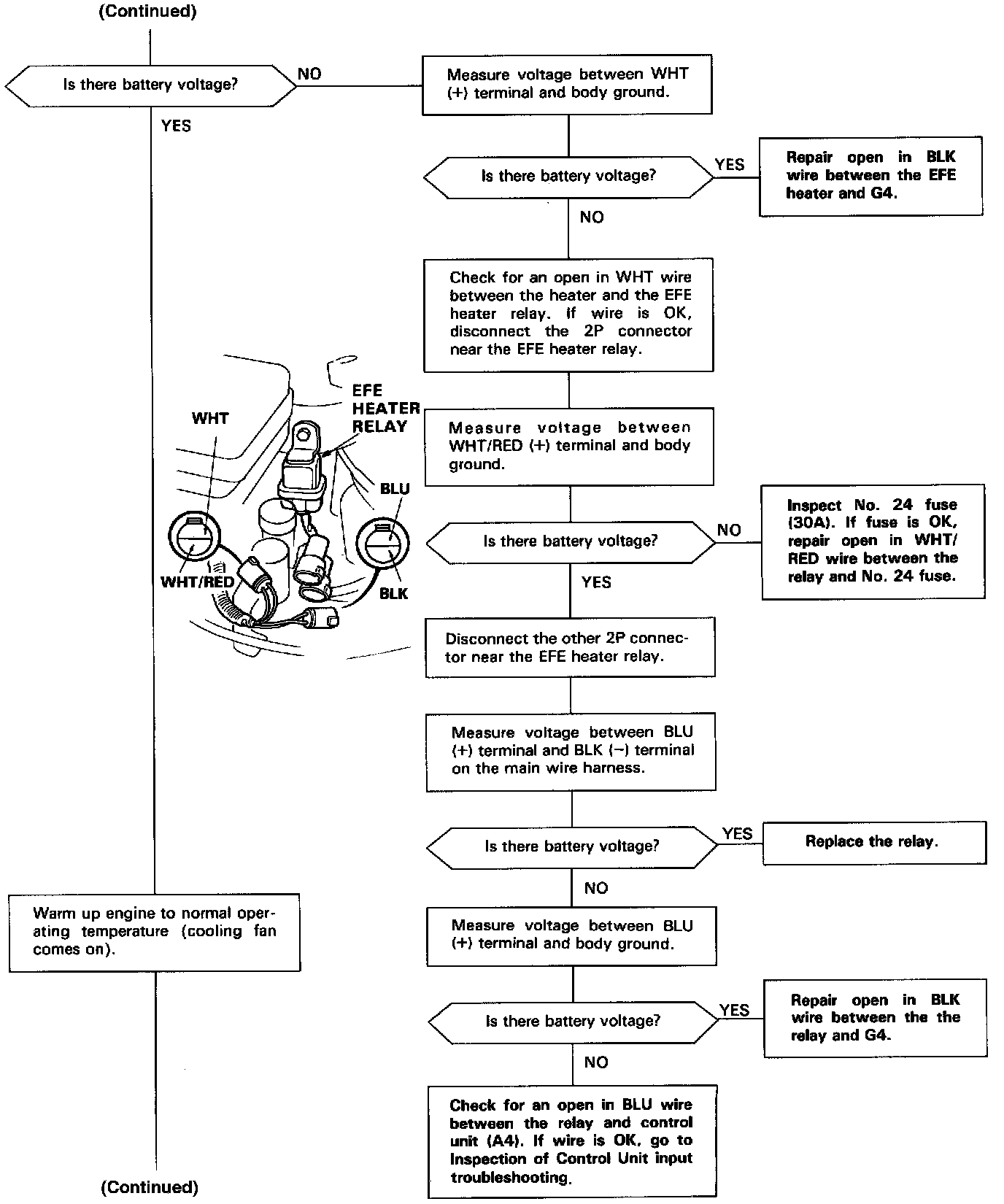

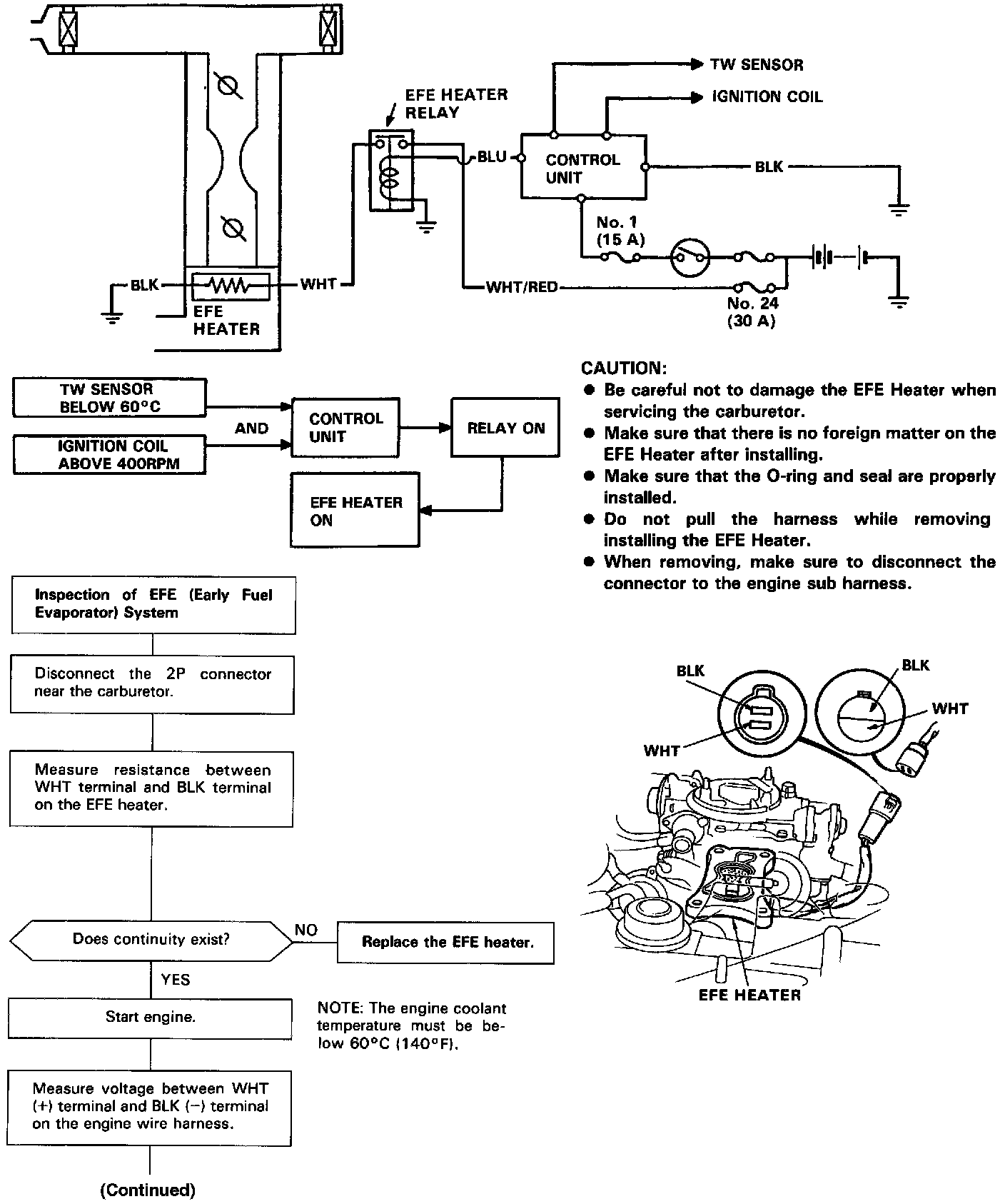

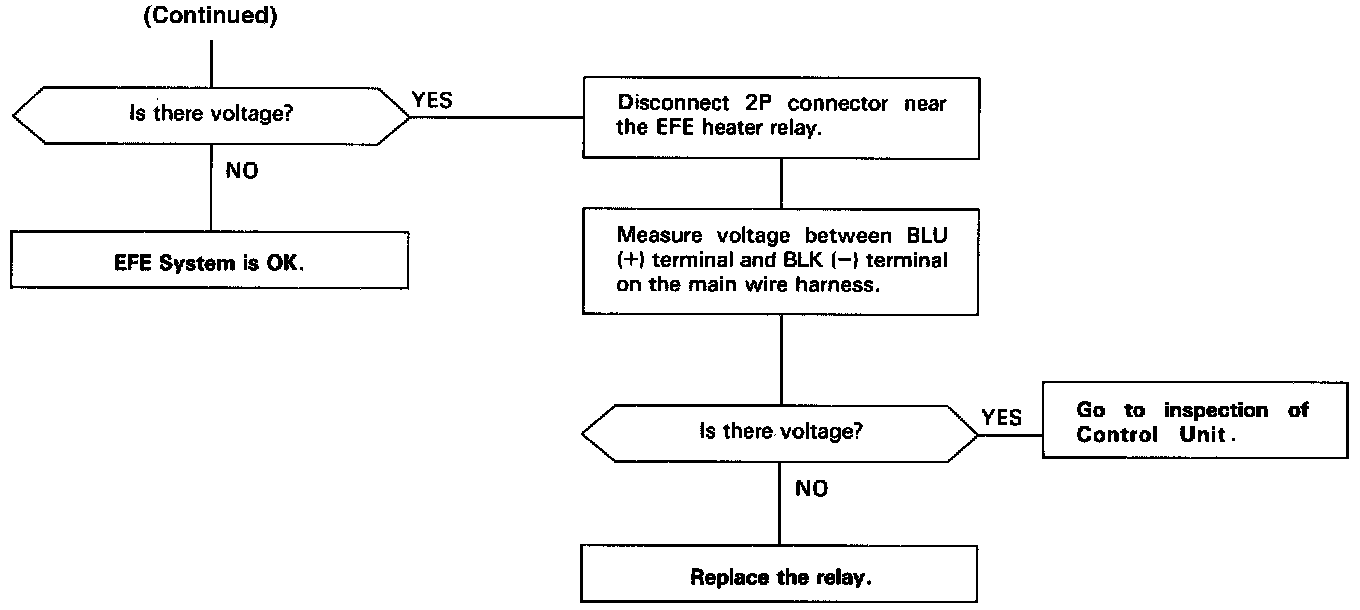

EFE (Early Fuel Evaporator) System
To promote improved engine operation while the engine is warming up, the carburetor insulator includes a heater in the primary bore. The maximum temperature of the heater is regulated by the electrical resistance of the heating element.

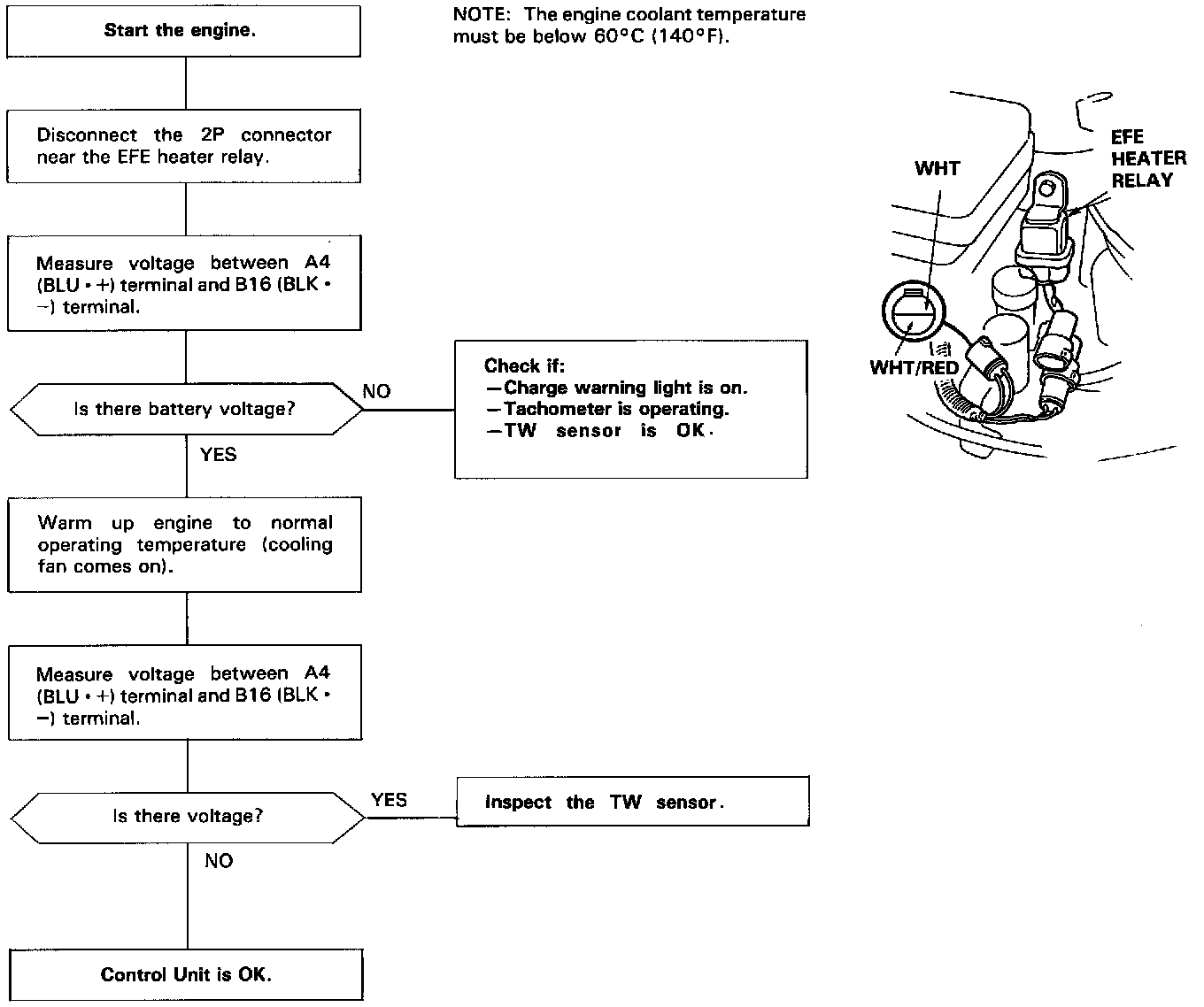

Inspection of [1][2]Control Unit (output to EFE relay)
