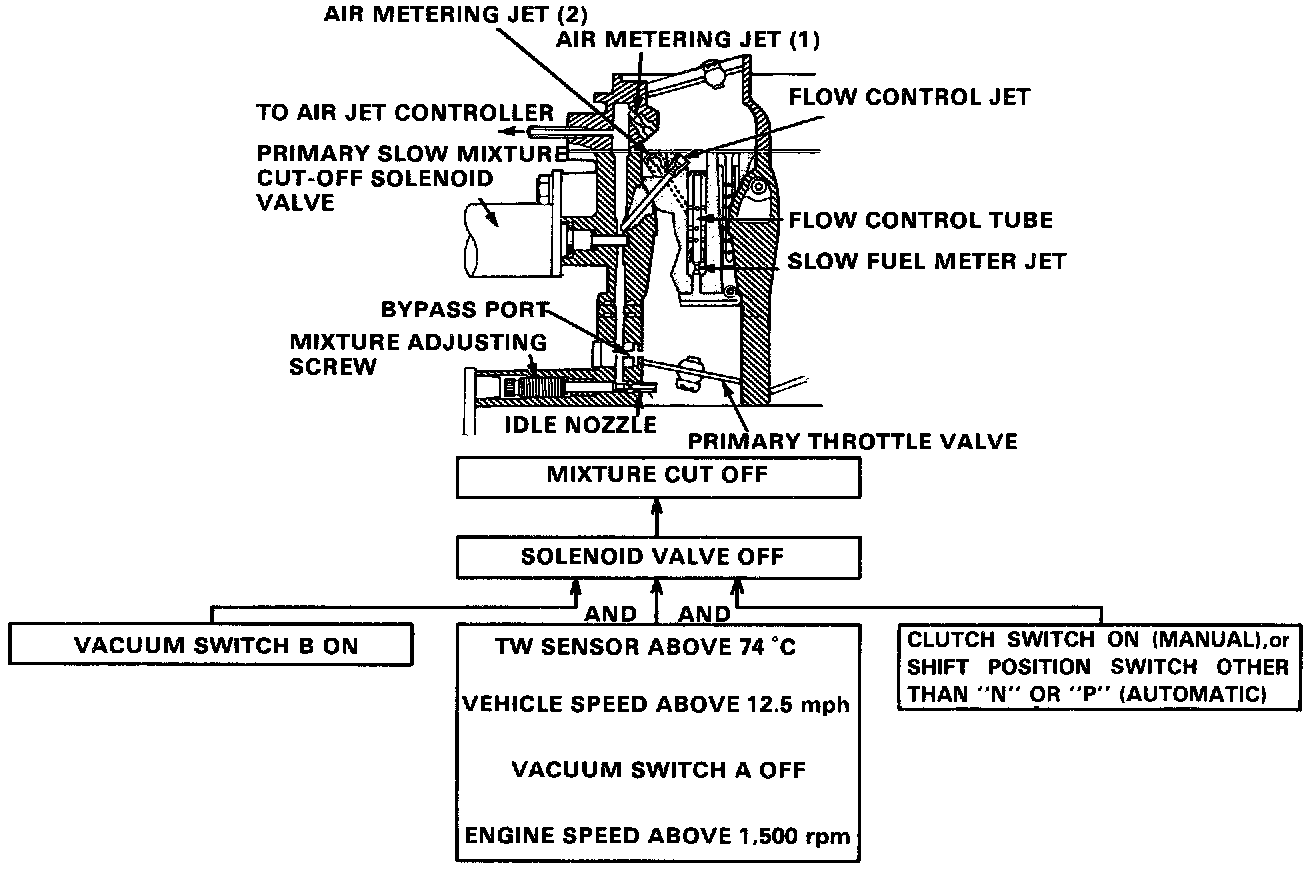

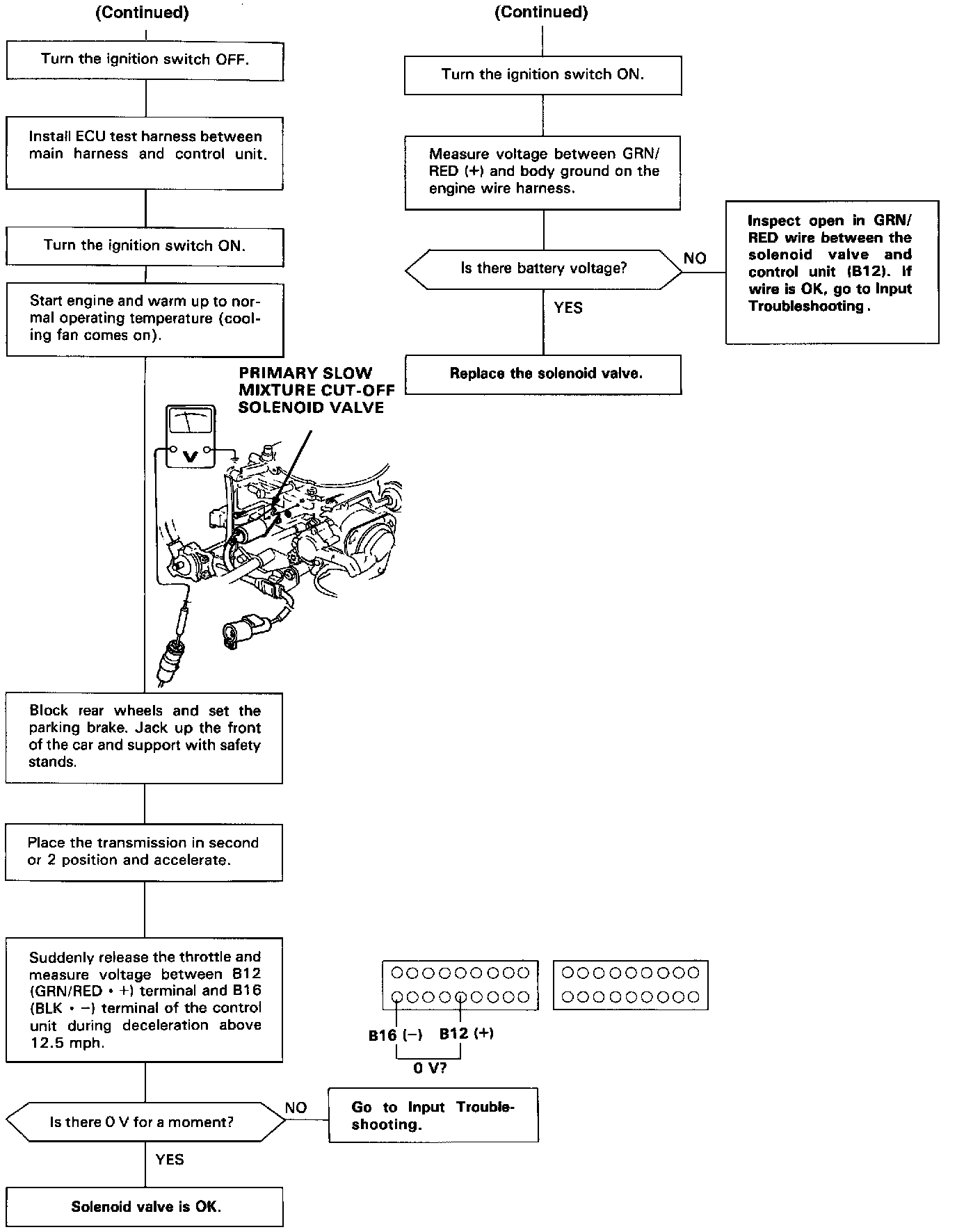

Primary Slow Mixture Cut-Off Solenoid Valve
Primary Slow Mixture Cut-off Solenoid Valve The primary slow mixture cut-off solenoid valve is provided to cut-off the idle mixture passage between the fuel/air passage and bypass port for preventing run-on when the ignition switch is turned off.
The solenoid valve also functions to cut-off the mixture flow under deceleration.
