Torque Specifications

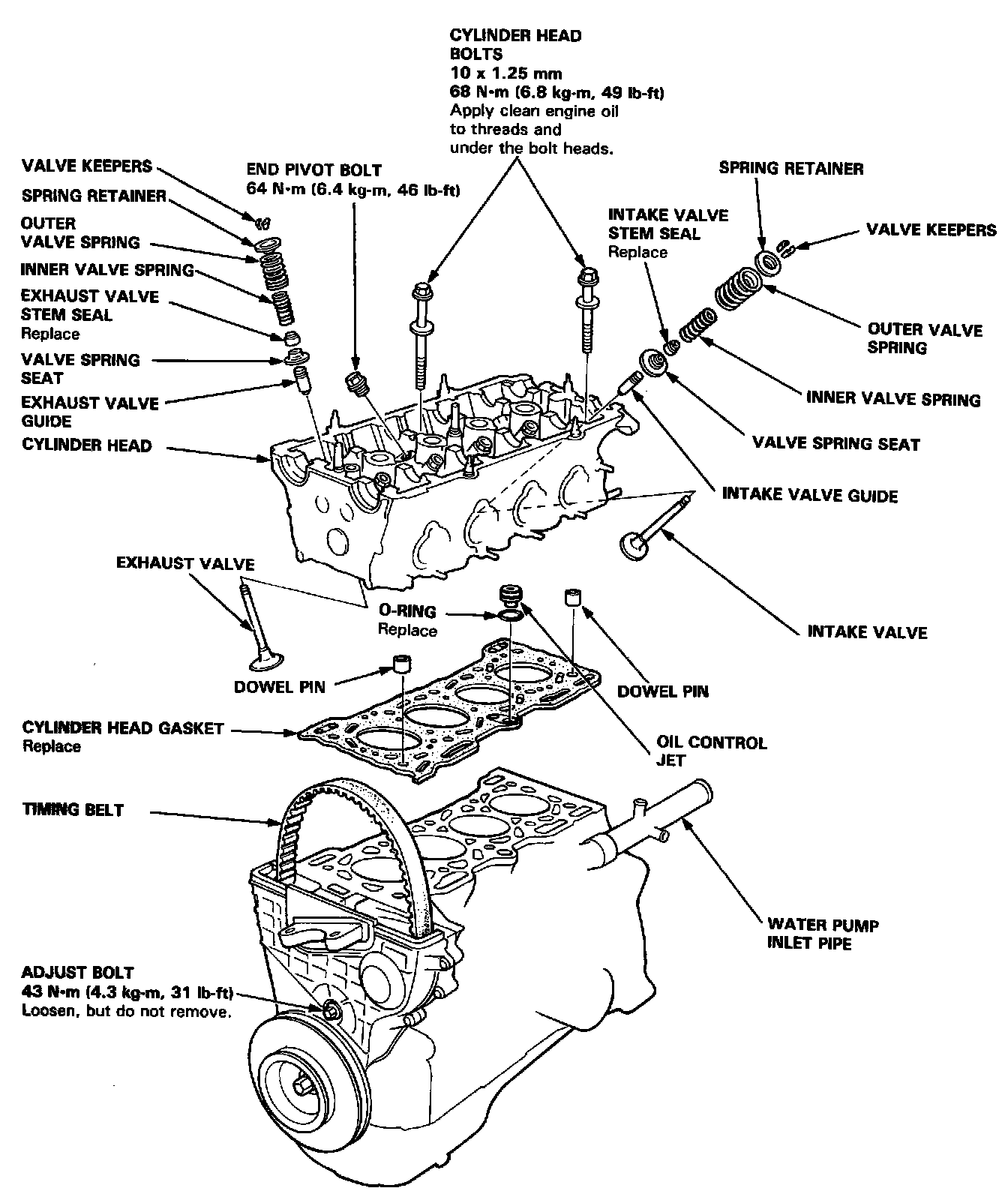

Cylinder Head, Camshaft, Rocker Arms and Manifolds Torque cylinder head bolts in 2 steps, following sequence shown in figure. First torque bolts to 22 ft. lbs., then torque bolts to 49 ft. lbs.
Cylinder Block Flywheel/Flexplate Replacement Lubrication
