Fuel Filter: Locations

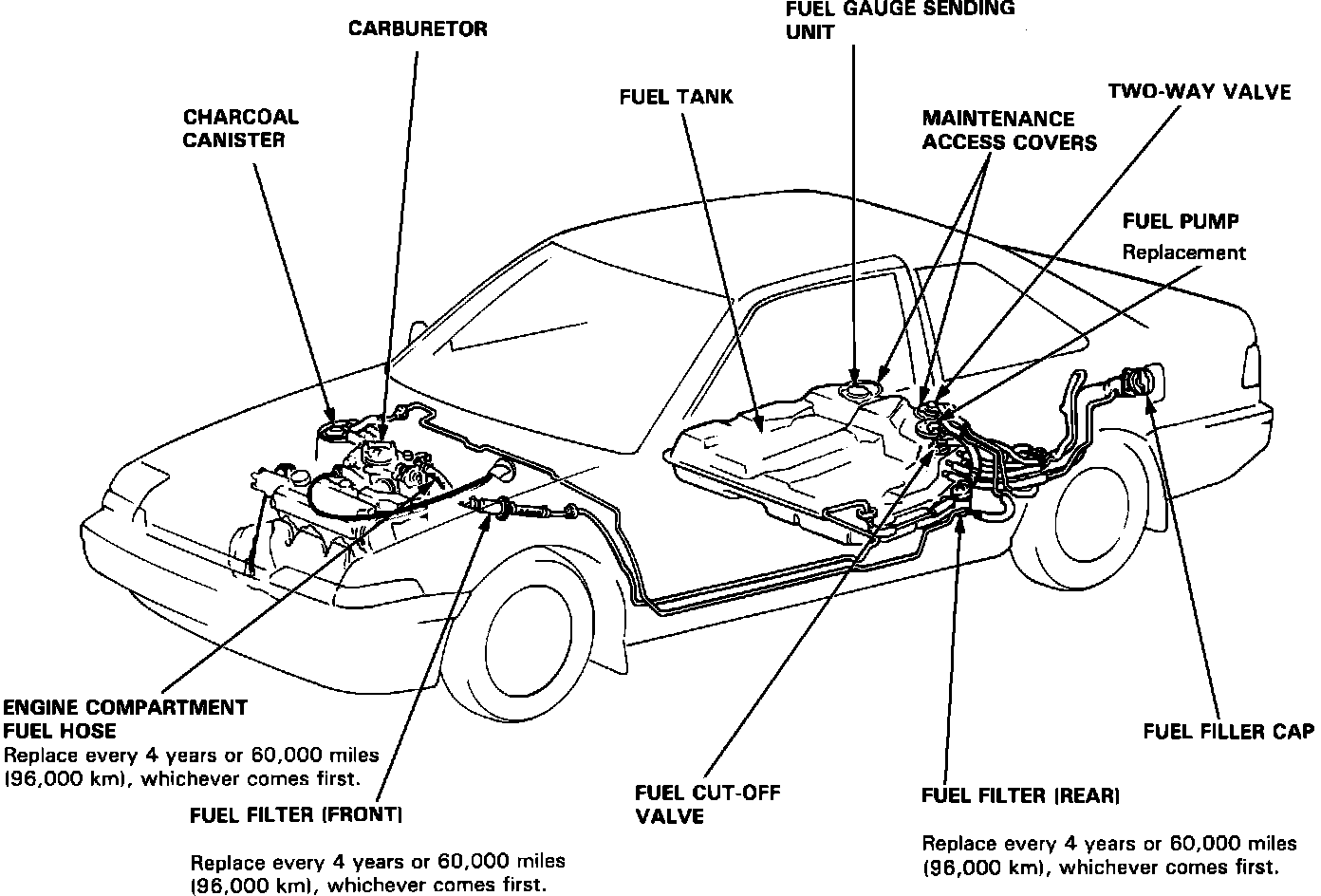

Fig. 6 Fuel And Vapor Hose Routing:

CARBURETORS
The carburetors are mounted to the intake manifold in the rear of the engine compartment.

FUEL FILTER (FRONT)
The front fuel filter is located in the fuel supply line, near the firewall on the drivers side of the engine compartment.

FUEL FILTER (REAR)
The rear fuel filter is located in the fuel supply line, near the fuel tank in the rear of the vehicle.

FUEL PUMP
The fuel pump is submerged in the fuel tank under the rear of the vehicle. Access covers are provided in the luggage compartment in the rear of the vehicle, for testing and service.

FUEL TANK
The fuel tank is mounted to the underside of the car body, in the rear of the vehicle.
