Distributor: Locations

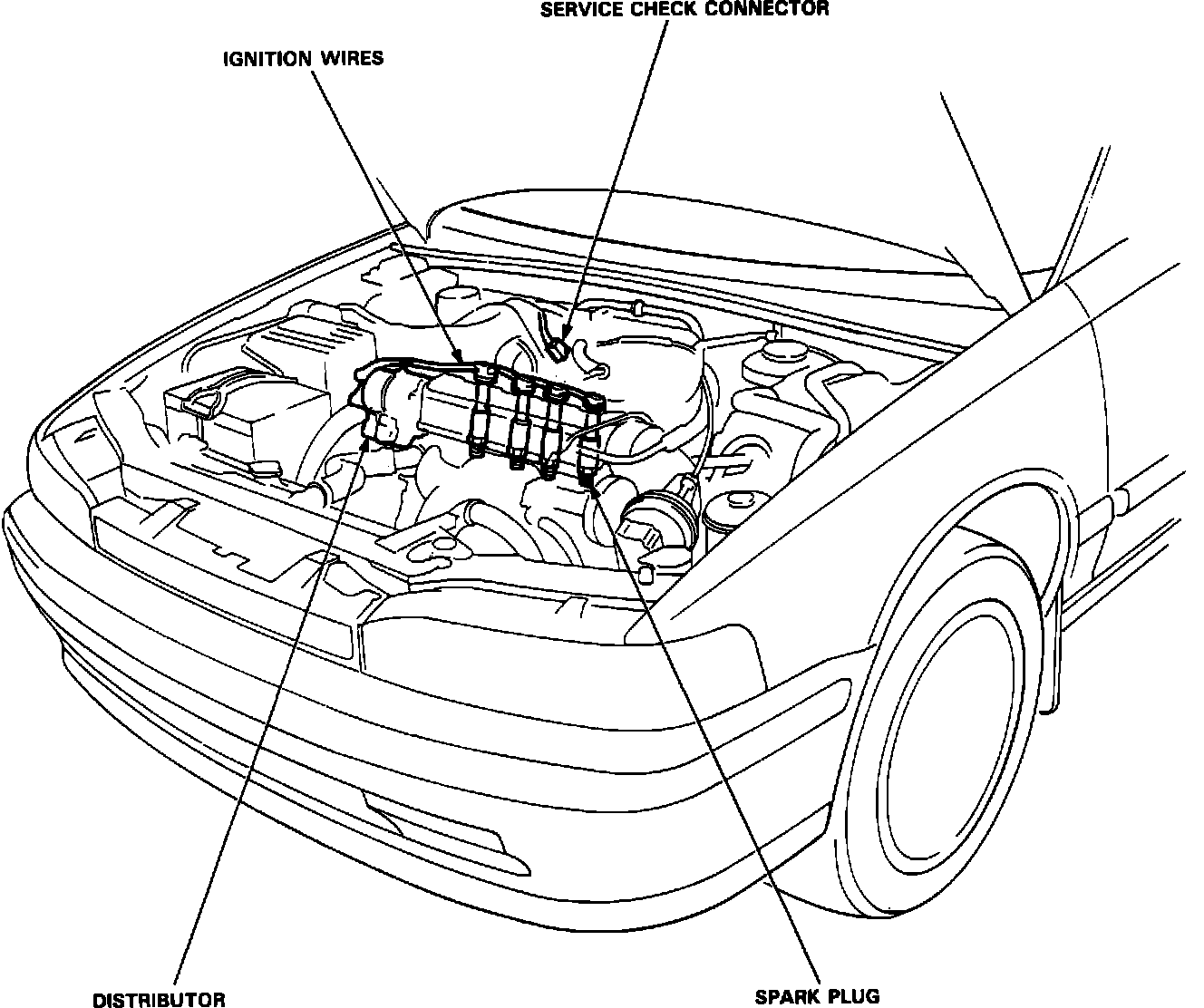

Ignition Component Location:







CRANKSHAFT POSITION SENSOR
Located in the distributor assembly.

CYLINDER NO. 1
Located on the right end of the engine.

DISTRIBUTOR ASSEMBLY
Located on the right hand side of the engine.

ELECTRONIC CONTROL UNIT (ECU)
Located under driver seat.

IGNITER
Located in the distributor assembly.

IGNITION COIL
Located inside the distributor.

SERVICE CHECK CONNECTOR
Located under the far right corner of the dash.

TDC SENSOR
Located in the distributor assembly.
