Torque Specifications
Cylinder Head:

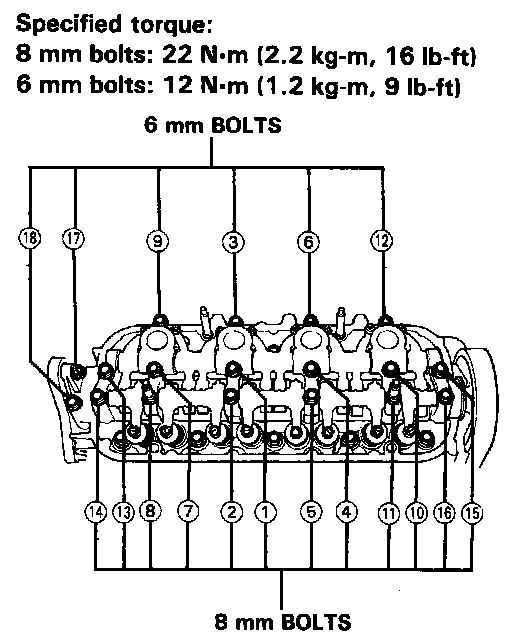

Camshaft And Rocker Arm:

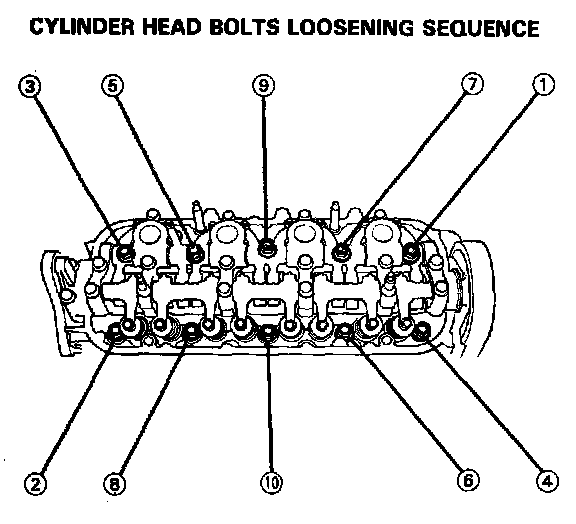

Cylinder Head Bolt Loosening Sequence:

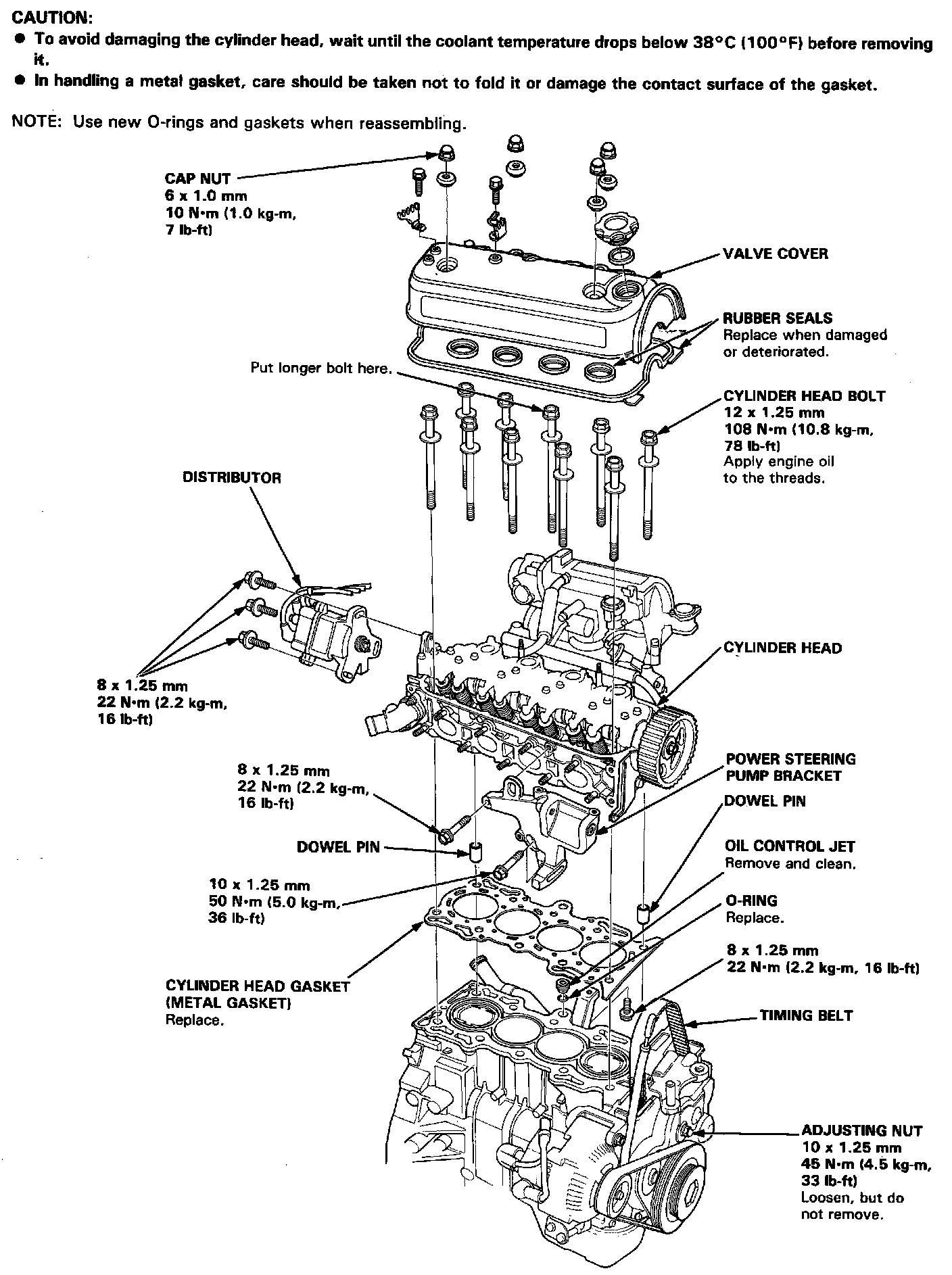

Cylinder Head/Valve Train
Bolt Torque Sequence:

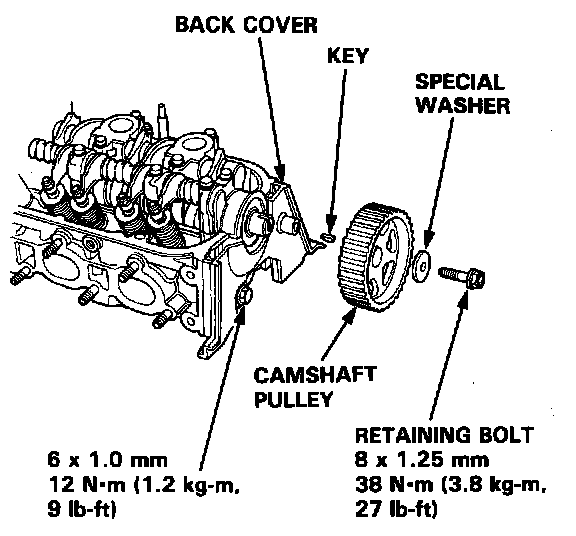

Camshaft Pulley:

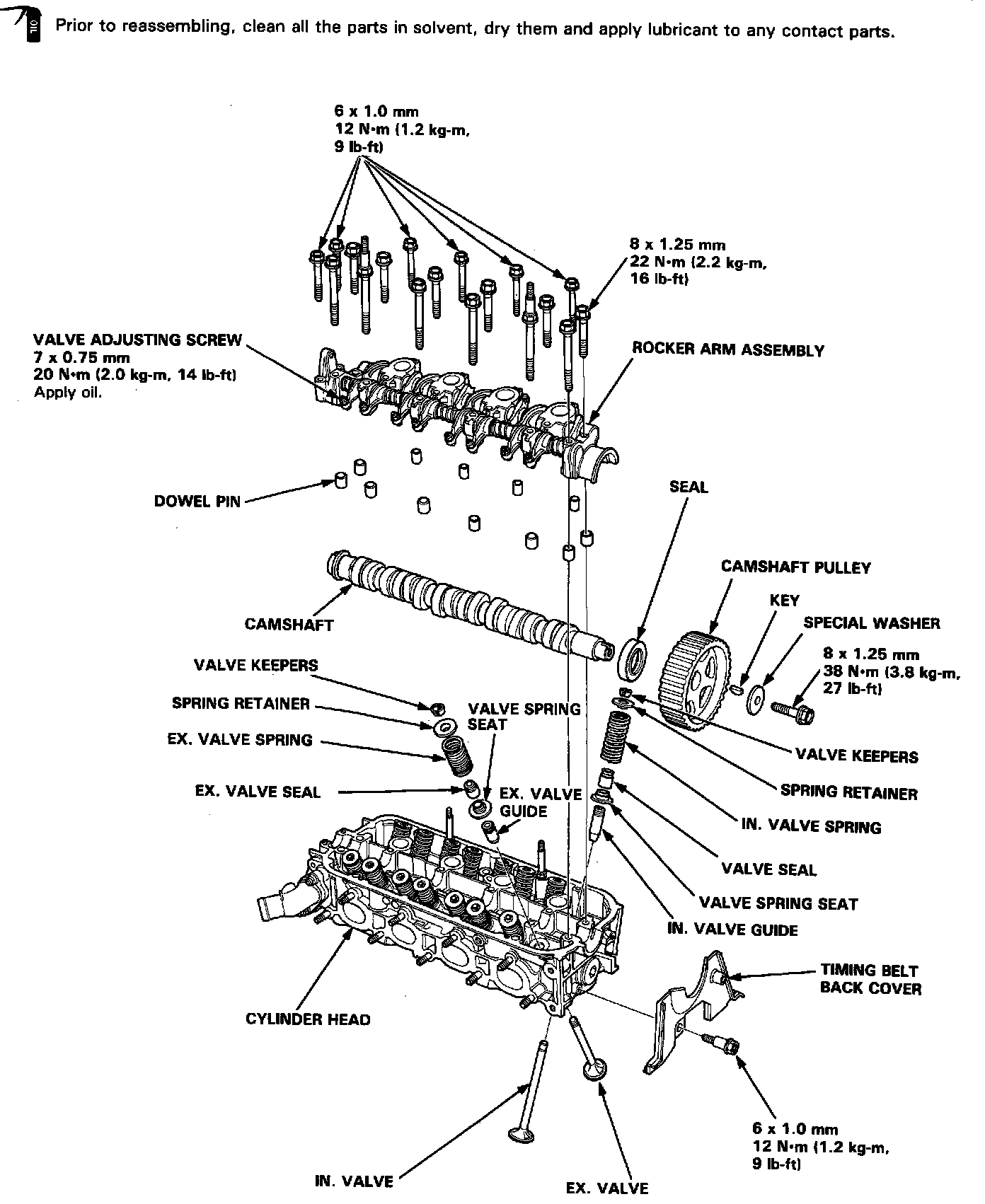

Camshaft/Rocker Arms and Camshaft Seals/Pulley

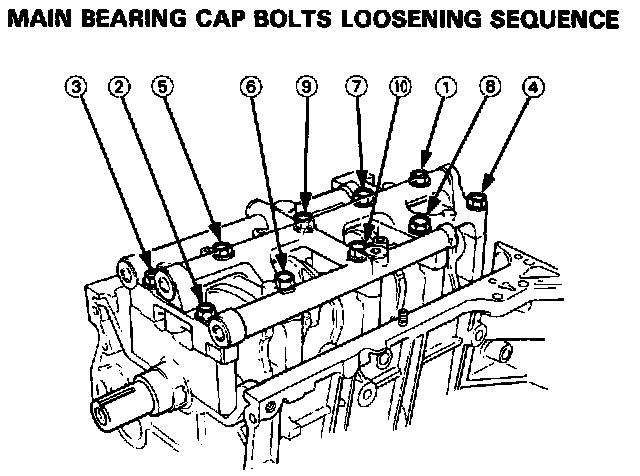

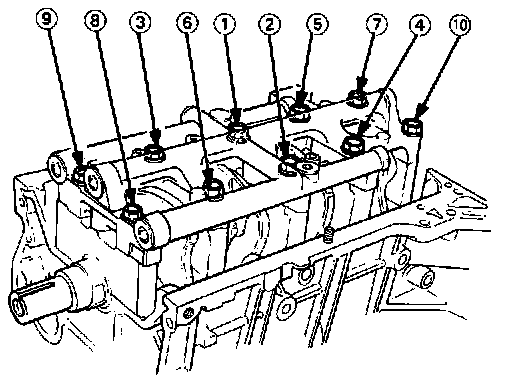

Main Bearing Cap Loosening Sequence:
Main Bearing Cap Tightening Sequence:

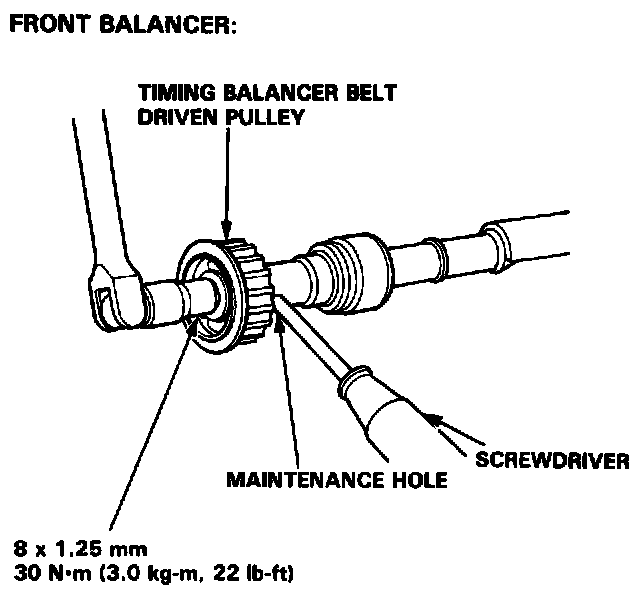

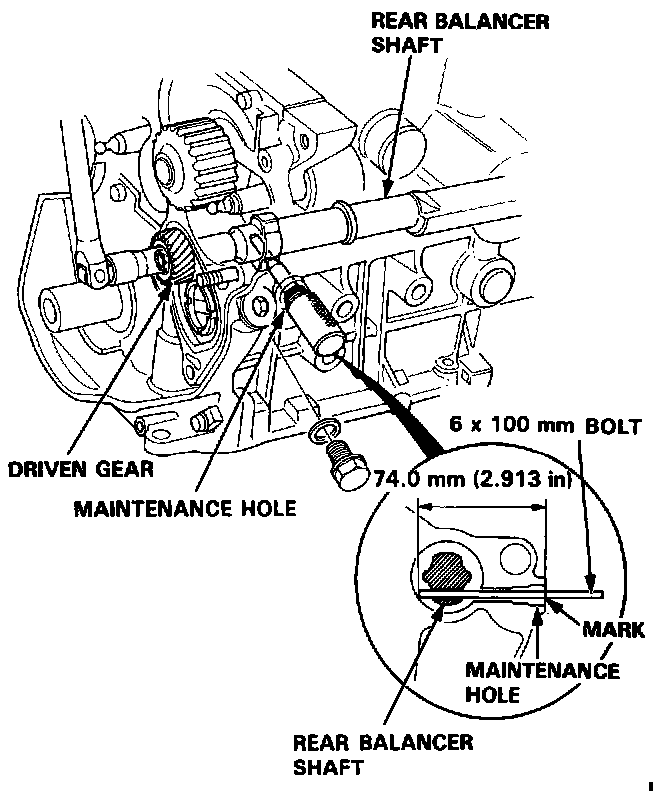

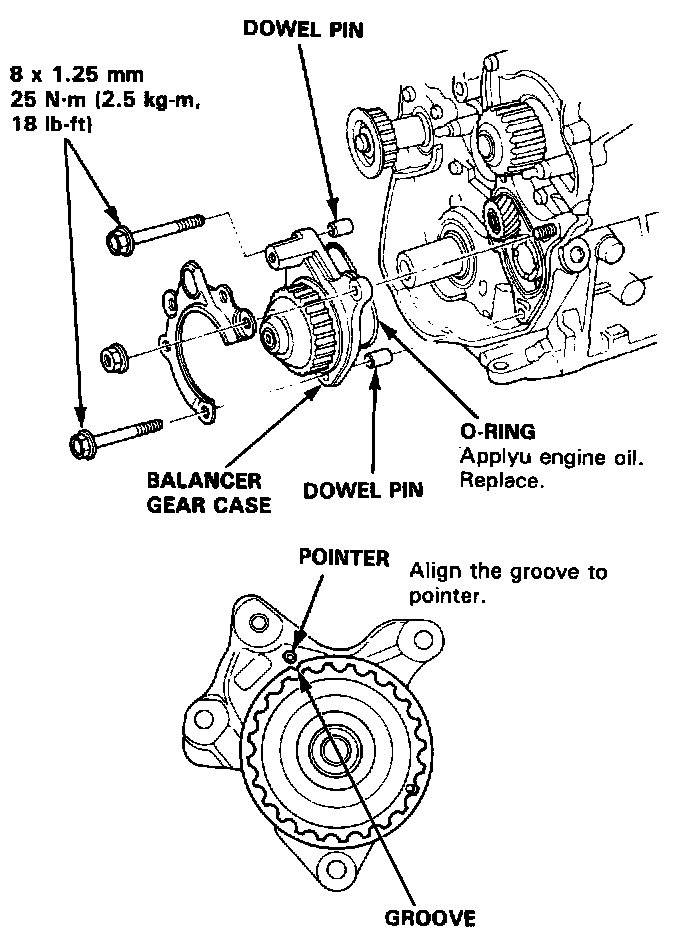

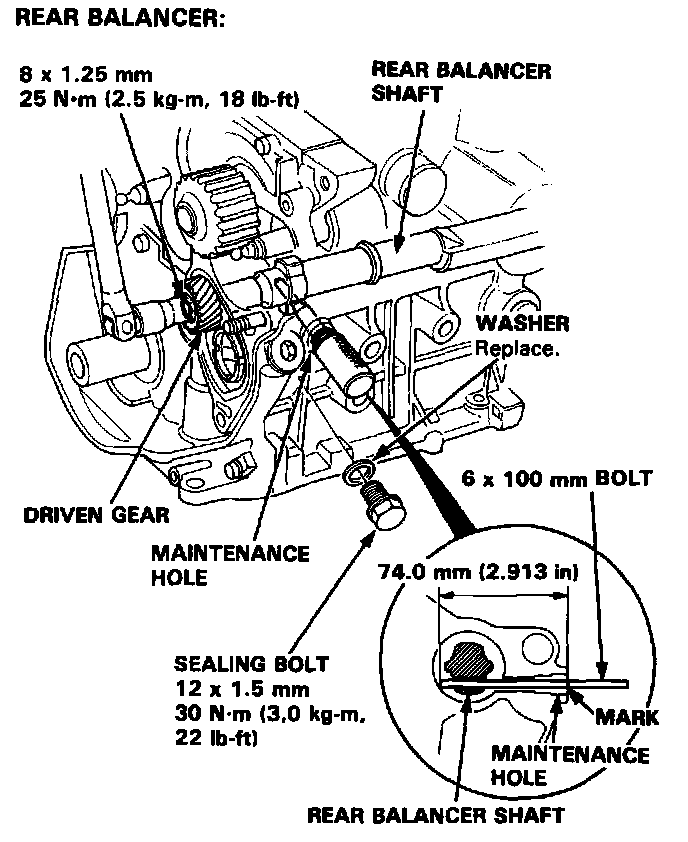

Balance Shaft Drive:
Crankshaft and Balancer Shafts

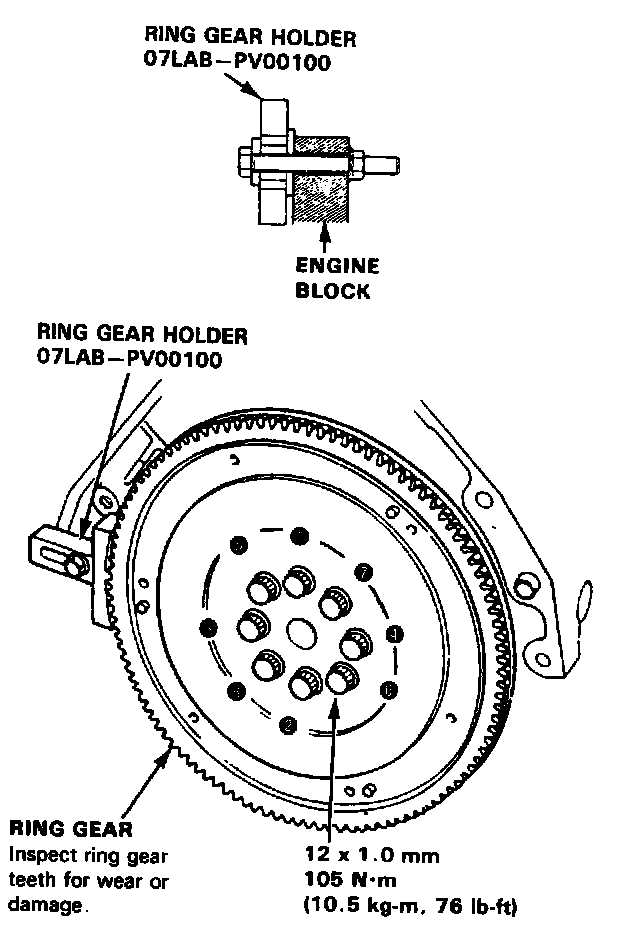

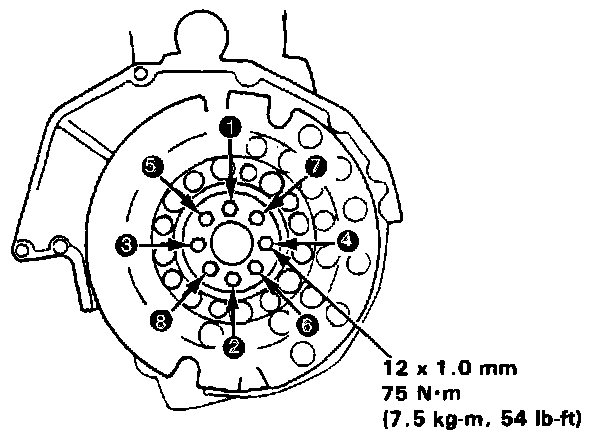

Flywheel Torque And Sequence:
Flexplate Torque And Sequence:
Flywheel/Flexplate Replacement

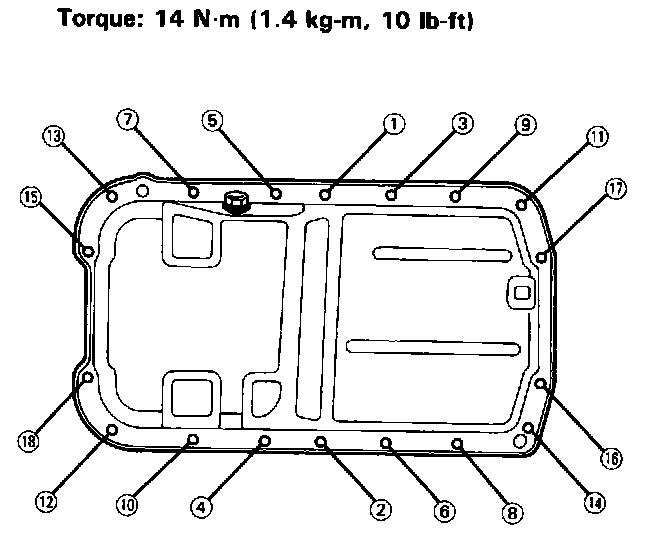

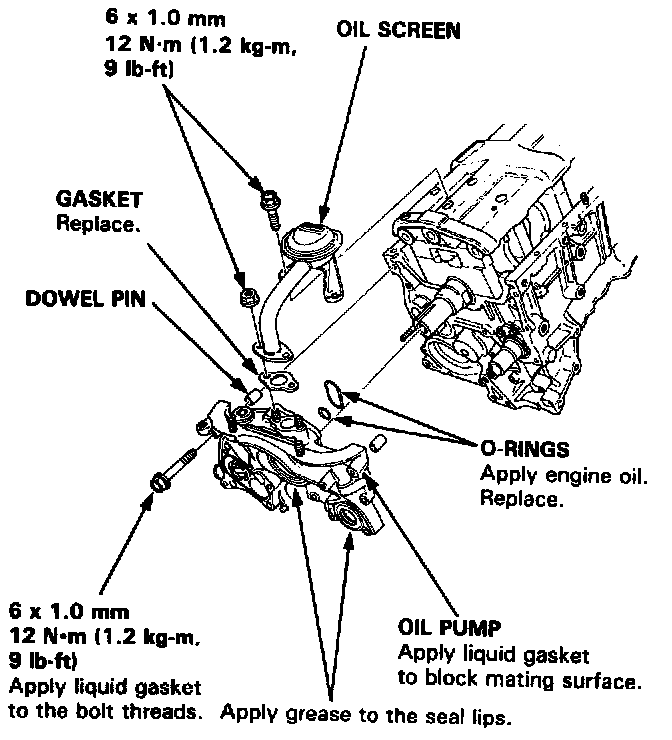

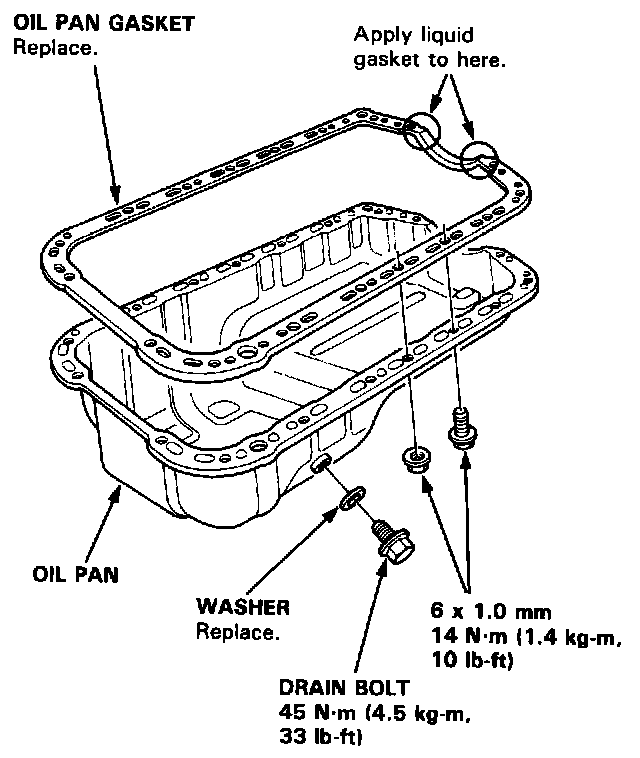

Lubrication

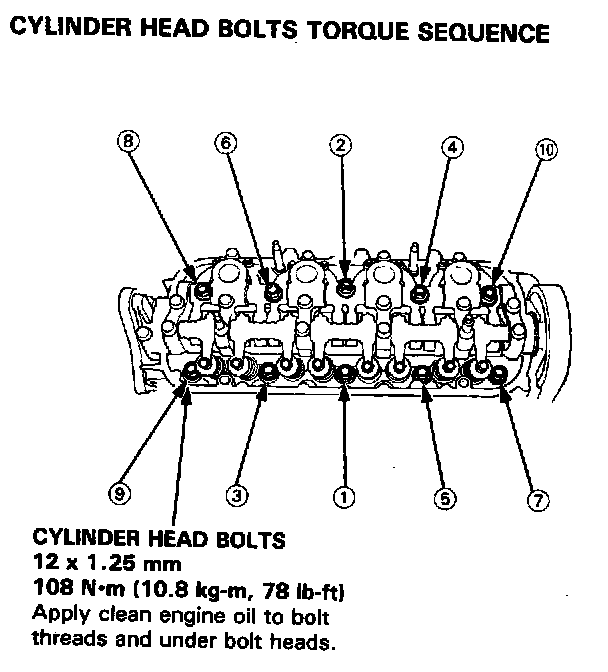

Cylinder Head Torque Sequence and Torque Value
