Cooling Fan Control Unit Input Test

Cooling Fan Control Unit Input Test

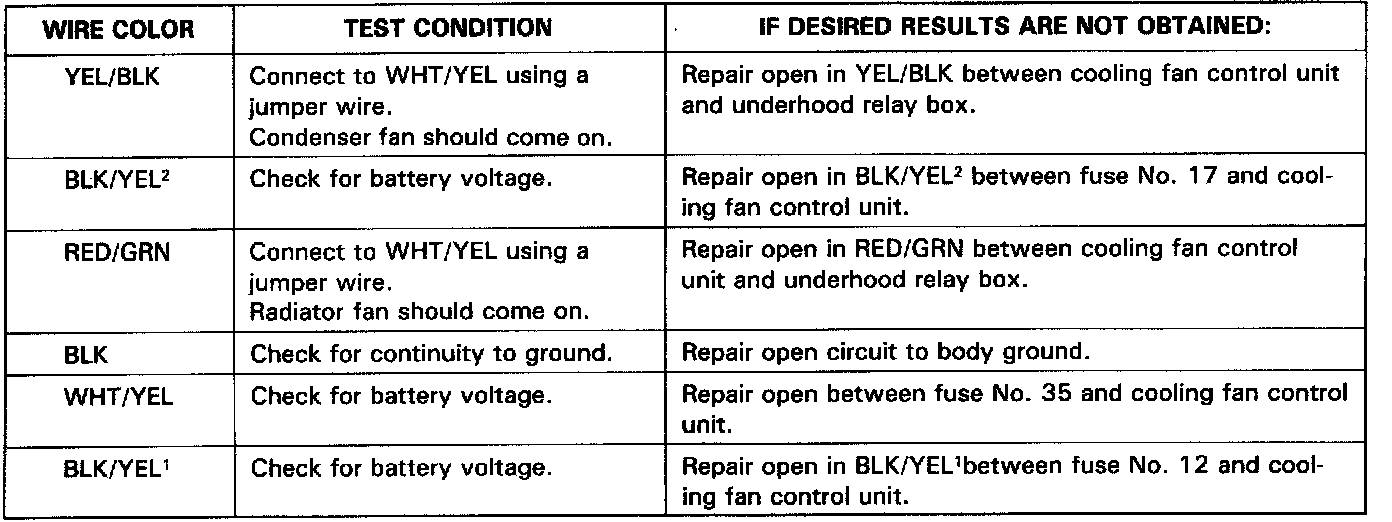

- All test should be performed with the key "ON" (unless specified otherwise) and the cooling fan control unit unplugged (unless specified otherwise).

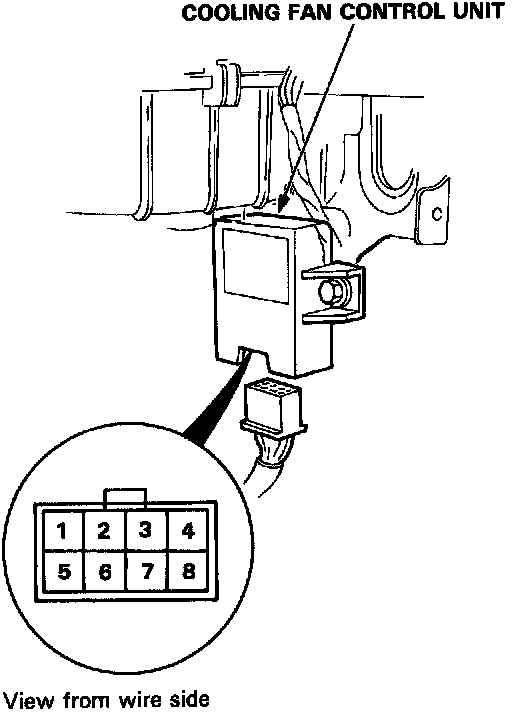

- All test are made from the wire side of the connector.
- Any abnormality must be corrected before continuing to the next test.

Before performing any troubleshooting procedures check:
- Fuses No.17, 12, 36, 39, 35.
- All electrical connections are clean and tight.

NOTE: If all tests check OK, replace with know good cooling fan control unit.
