Vehicle Speed Sensor: Testing and Inspection
A/T Speed Pulser TestCAUTION:
- Set the parking brake securely and block the rear wheels.
- Make sure jacks and safety stands are placed properly.
1.
Jack up the front of the car and support with safety stands.
2.

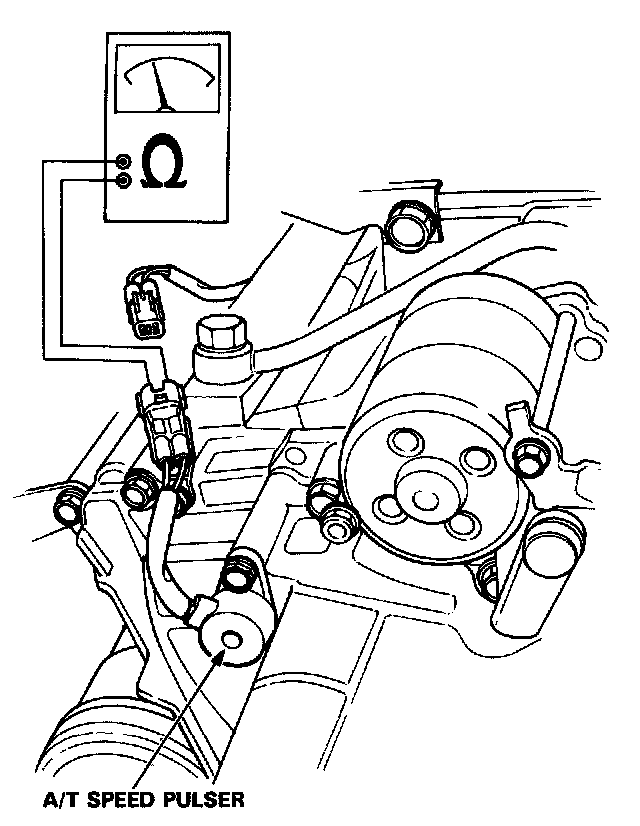

Disconnect the A/T
speed pulser 2P connector.
3.
Rotate the front wheels and be sure that continuity and no continuity appear alternately between the two terminals.
