Oil Pan, Engine

TORQUE AND SEQUENCE

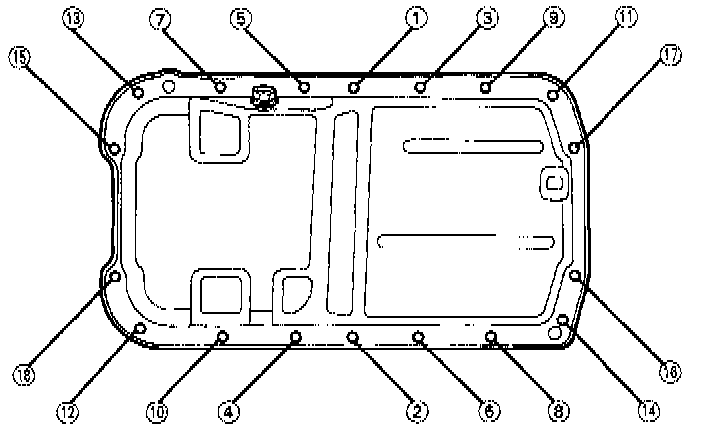

Oil Pan Tightening Sequence:






Tighten the nuts and bolts in two steps and torque them in a criss-cross pattern, as shown.

Torque: 14 Nm (1.4 kg-m, 10 ft lb)
