Catalytic Converter: Locations

Catalytic Converter For 16 Valve Engine (except 16 Valve VTEC-E):





CATALYTIC CONVERTER (16 VALVE ENGINE ONLY, EXCEPT VTEC-E)
Located under car between flexible exhaust pipe and muffler.

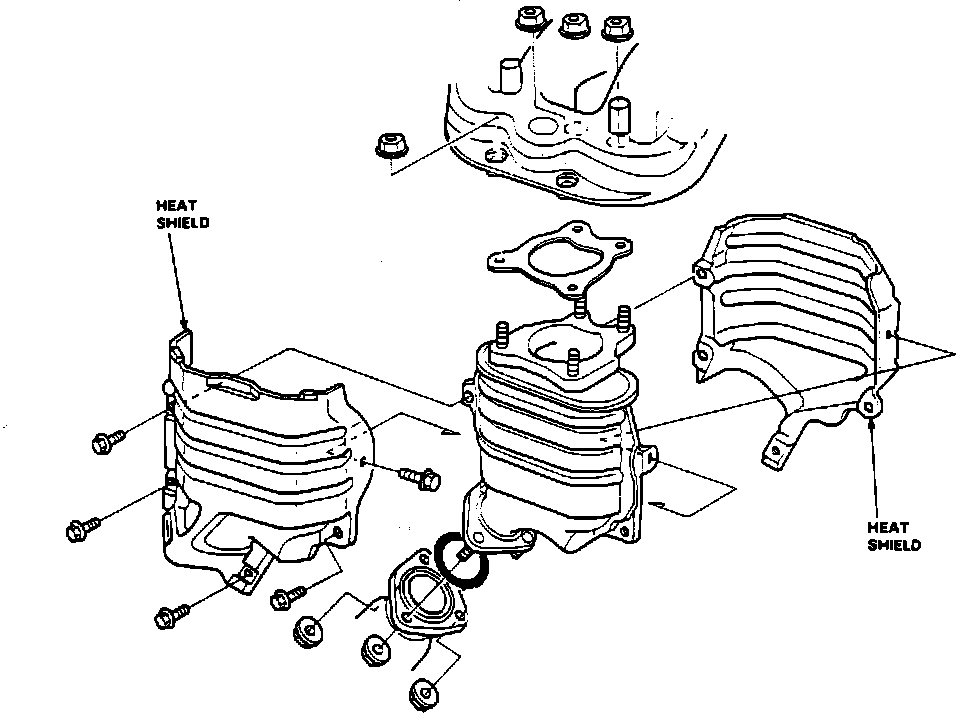

Catalytic Converter For 8 Valve And 16 Valve VTEC-E Engine:





CATALYTIC CONVERTER (8 VALVE AND 16 VALVE VTEC-E ENGINE)
Bolted to the exhaust manifold and exhaust down pipe.
