Air Mix Control Cable Adjustment

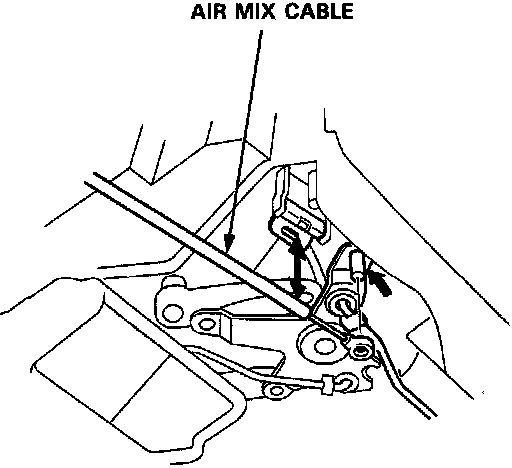

Air Mix Cable Adjustment

1. Set the temperature control lever on COOL.
2. Connect the end of the cable to the arm.
3. Gently slide the cable outer housing back from the end enough to take up any slack in the cable, but not enough to make the temperature control lever move, then snap the cable housing into the clamp.

NOTE: The air mix cable should be adjusted if the heater valve cable has been disconnected.
