Def Door Adjustment

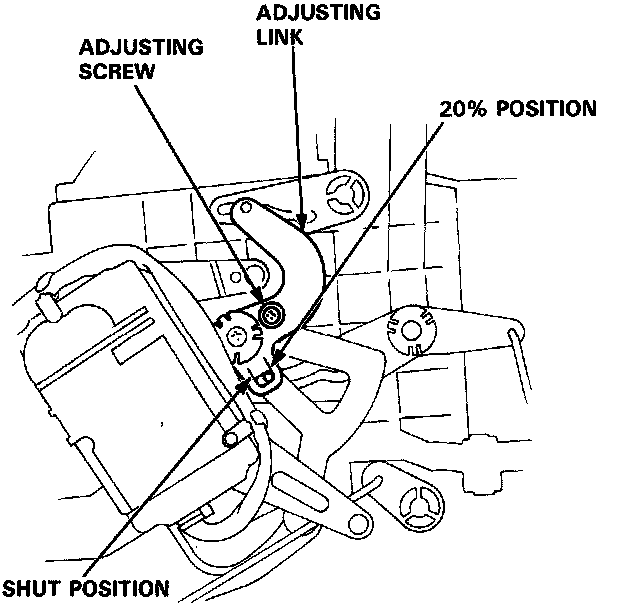

DEF Door Adjustment




Set the heater control switch on HEAT for adjusting DEF leak (shut 20%).

1. Loosen the adjusting screw.
2. Adjust the heater linkage.
3. Tighten the adjusting screw.
