Removal and Installation

Heater Control Panel Replacement

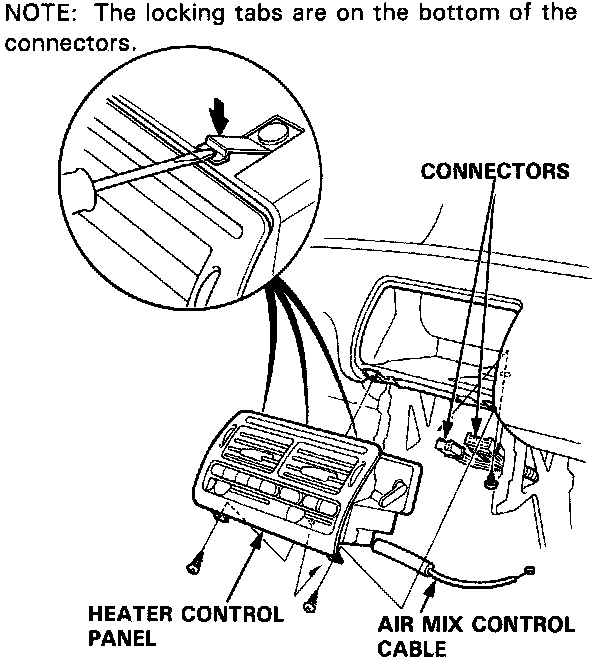

1. Remove the front console.
2. Remove the stereo radio/cassette player.
3. Disconnect the air mix control cable from the heater unit.
4. Remove the three self-tapping screws. Disconnect the connectors and remove the heater control panel/center air vent assembly.

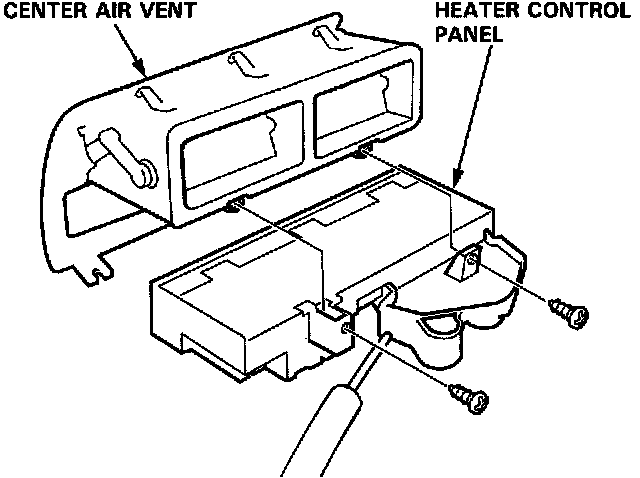

5. Remove the tow self-tapping screws, and remove the heater control panel from the center air vent.
6. Install the removed parts in the reverse order of removal. Refer to Adjustments for cable adjustments.
