Torque Specifications

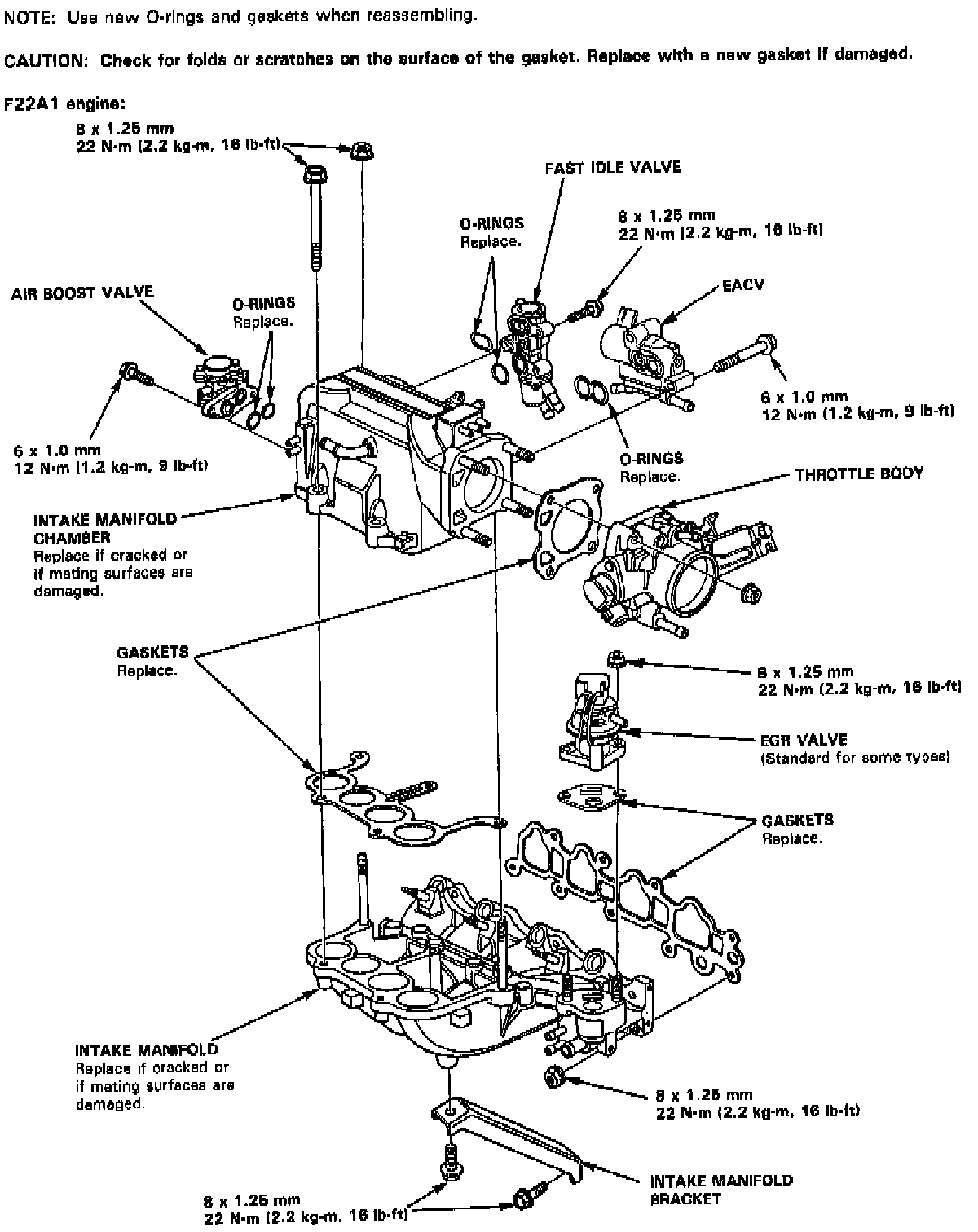

Intake:

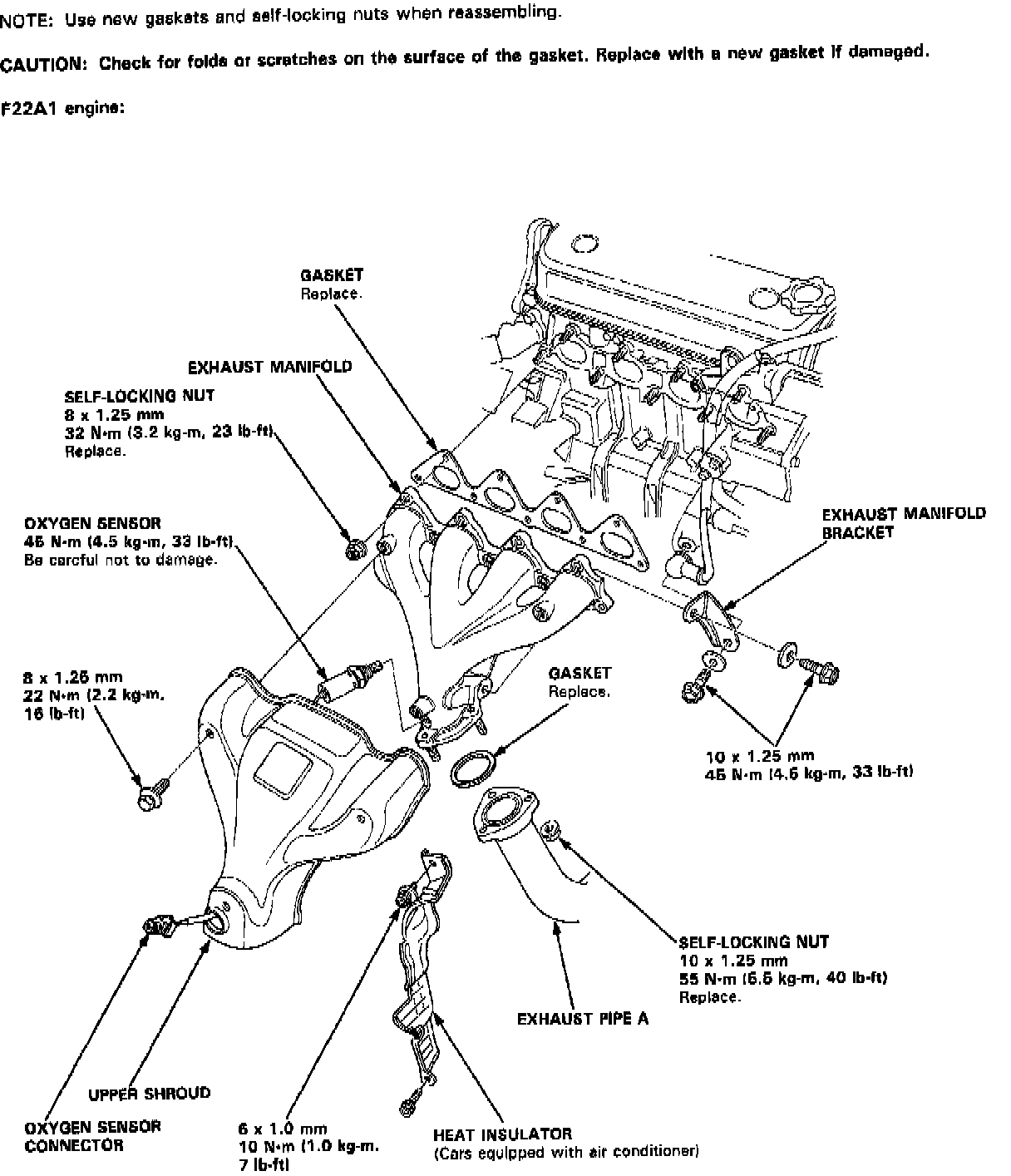

Exhaust Manifold:

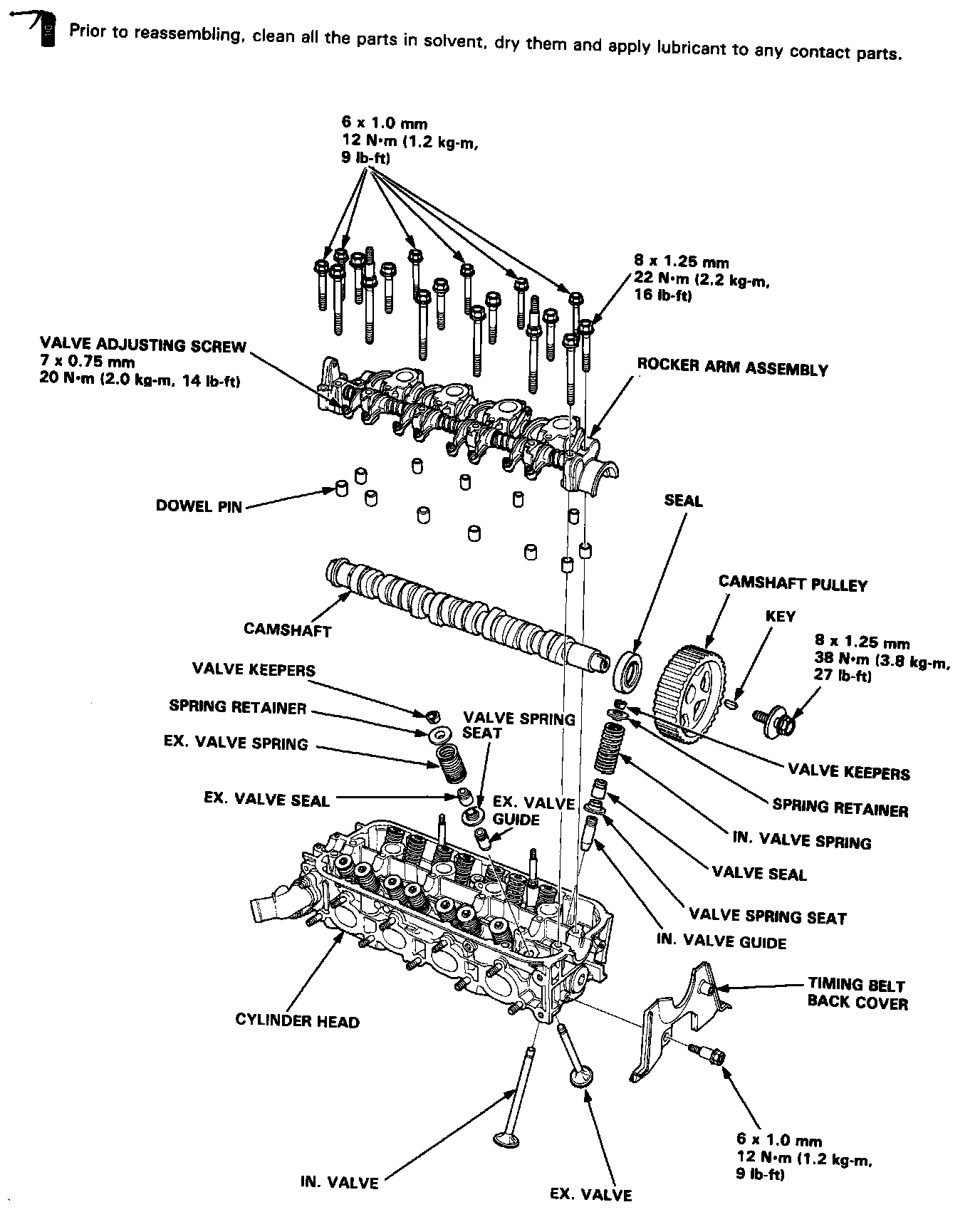

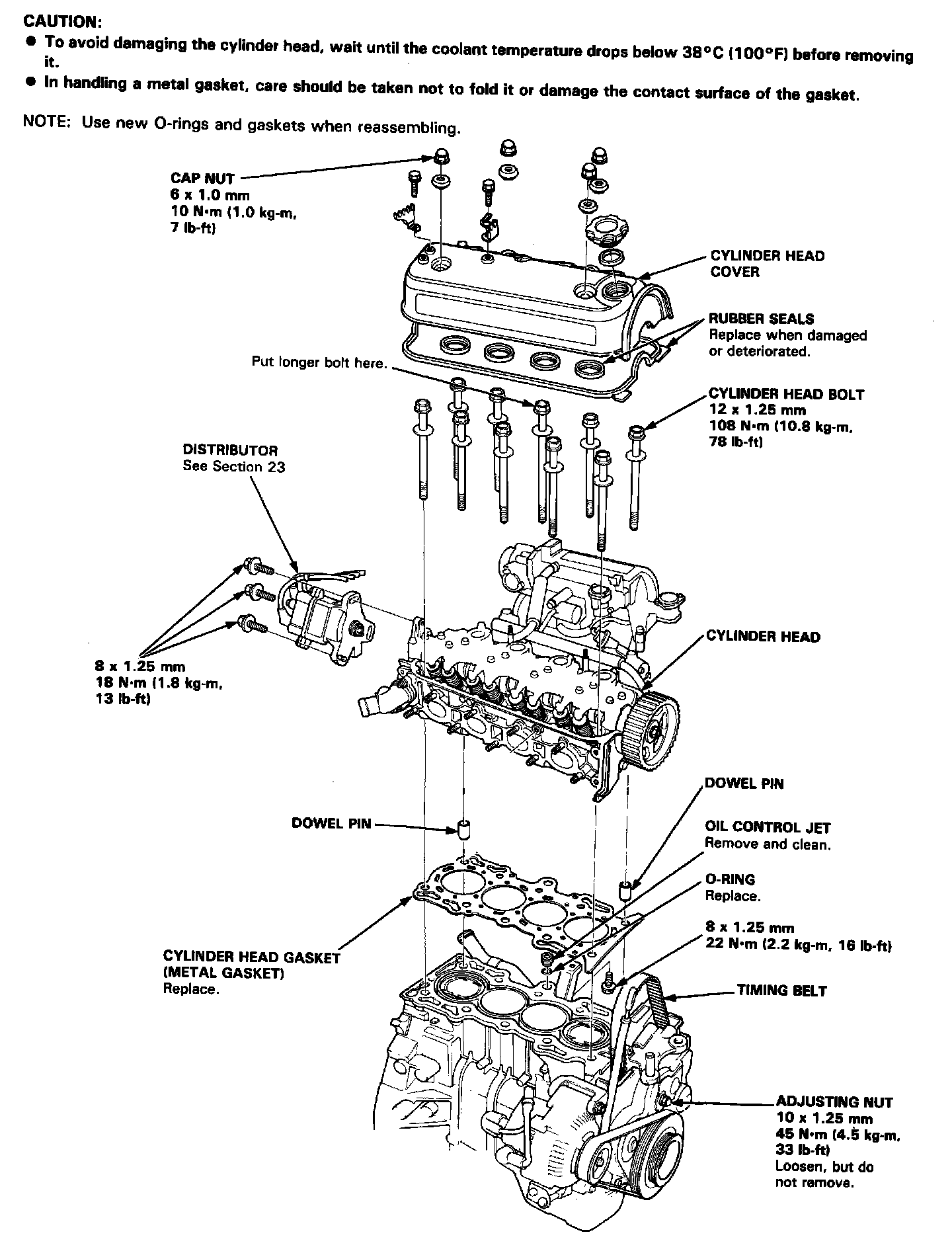

Upper Engine:

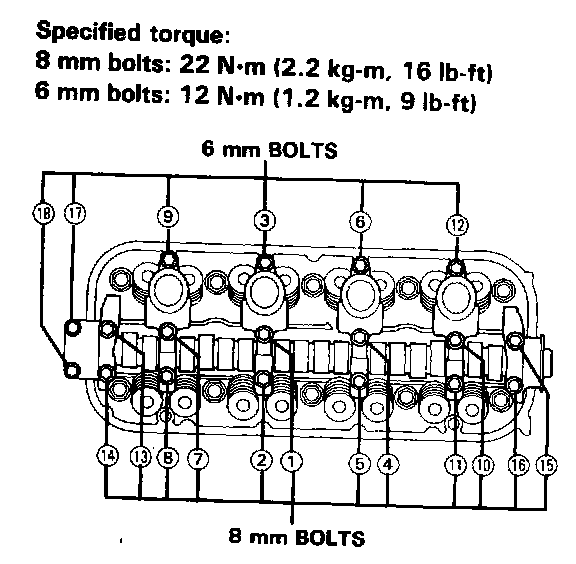

Cam Holder Torque/Sequence:

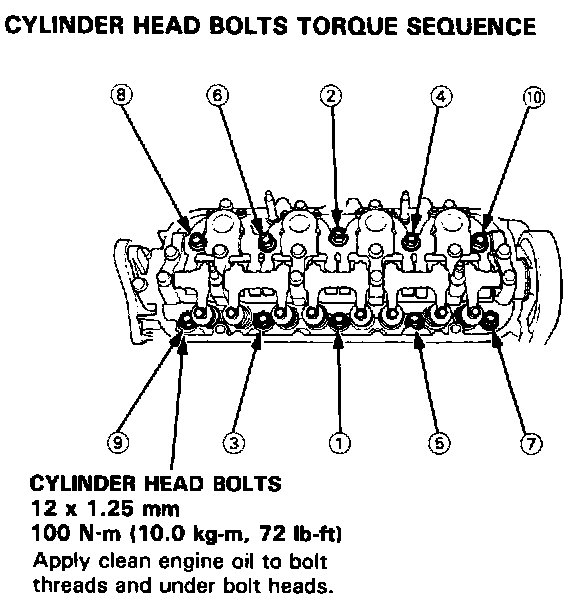

Cylinder Head Torque Sequence:

Tighten cylinder head bolts, in sequence, in three steps:

1st step: 40 N.m (4.0 kg-m, 29 ft-lb)
2nd step: 70 N.m (7.0 kg-m, 51 ft-lb)
3rd step: 100 N.m (10.0 kg-m, 72 ft-lb)

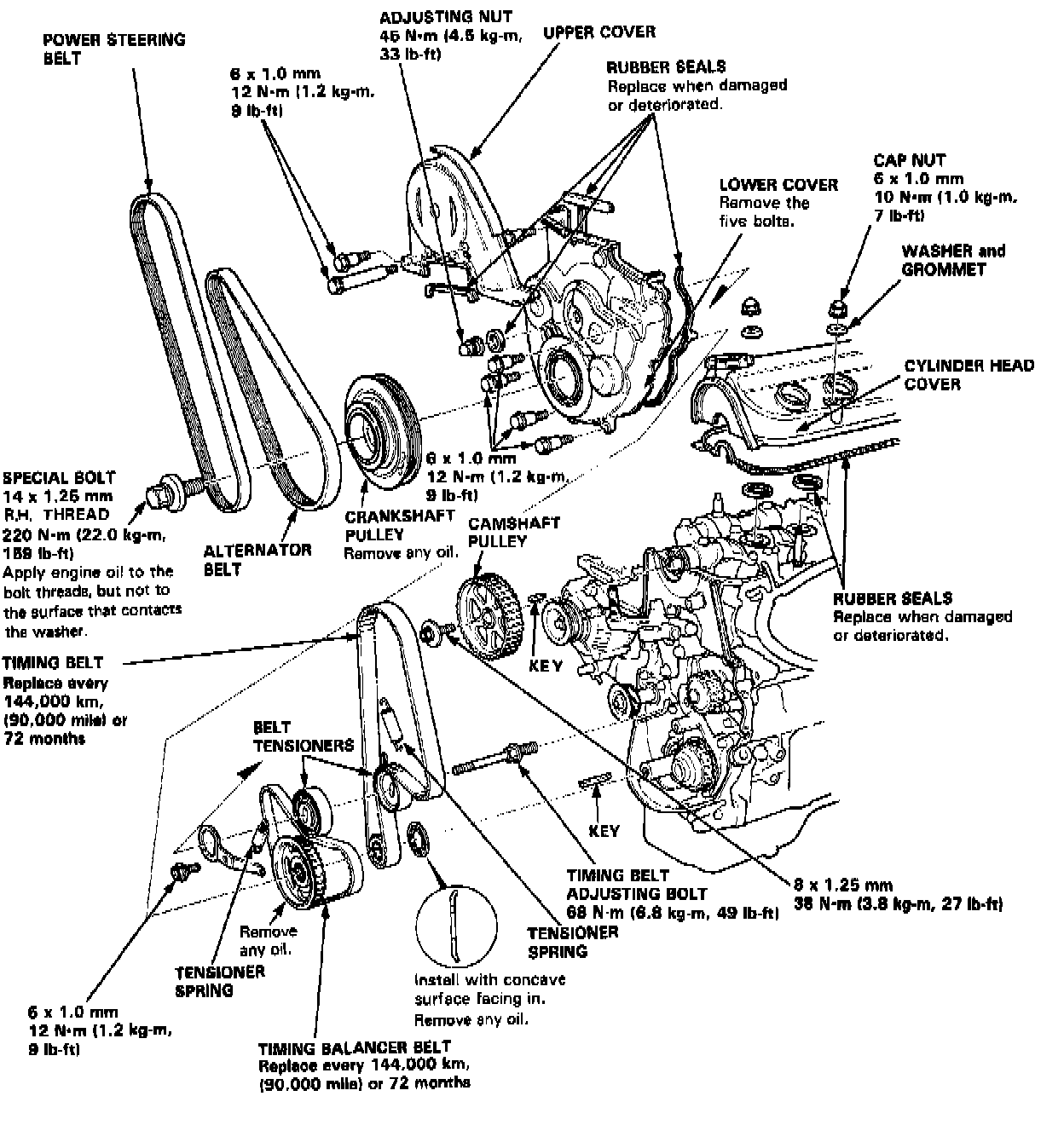

Timing Components:

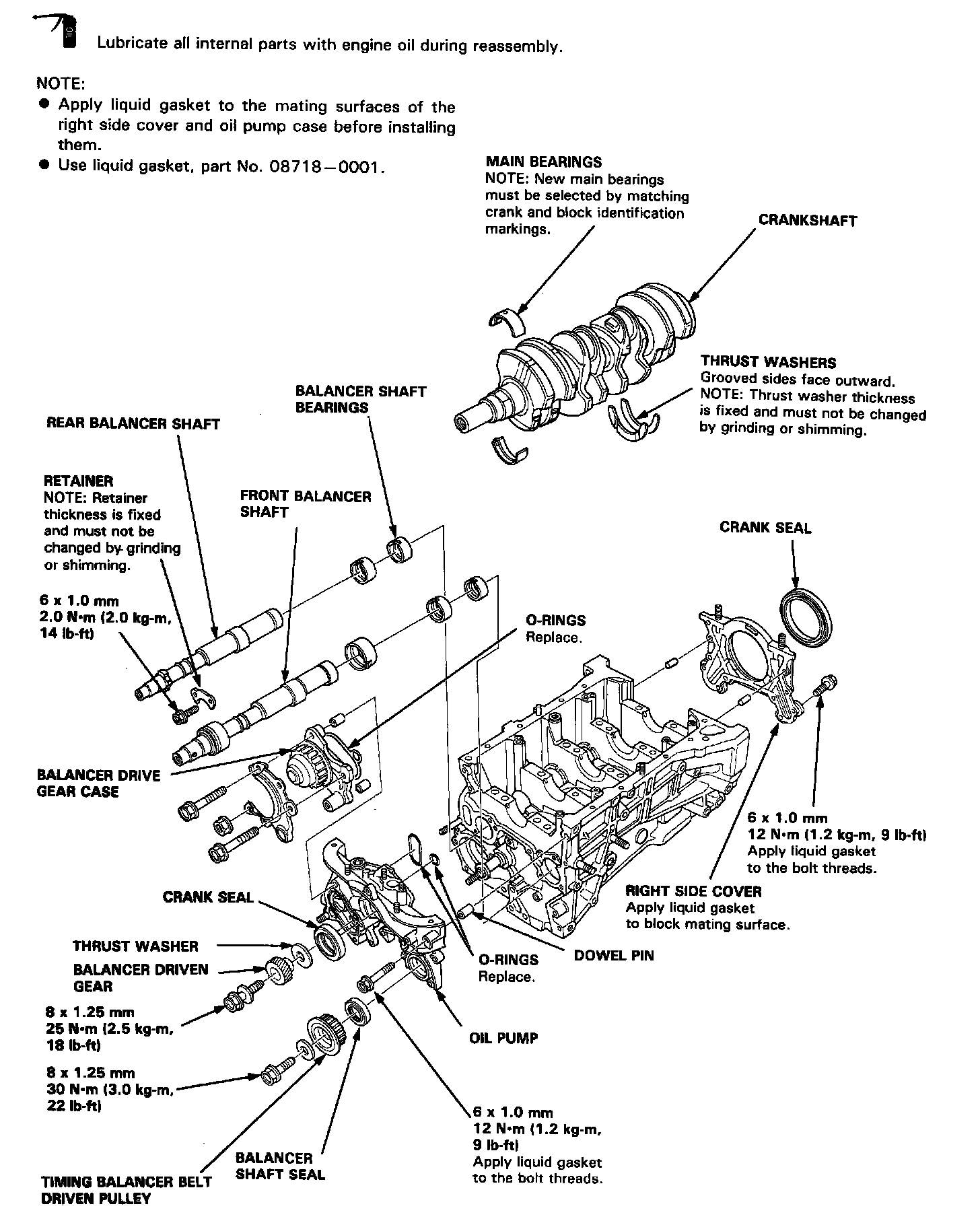

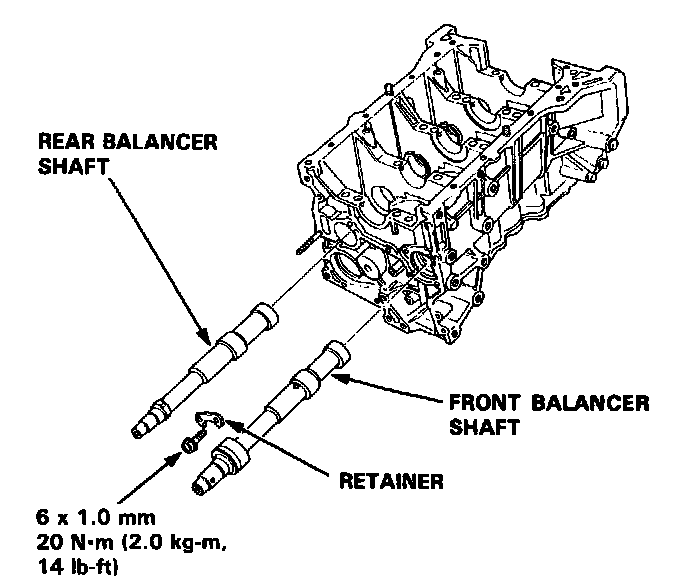

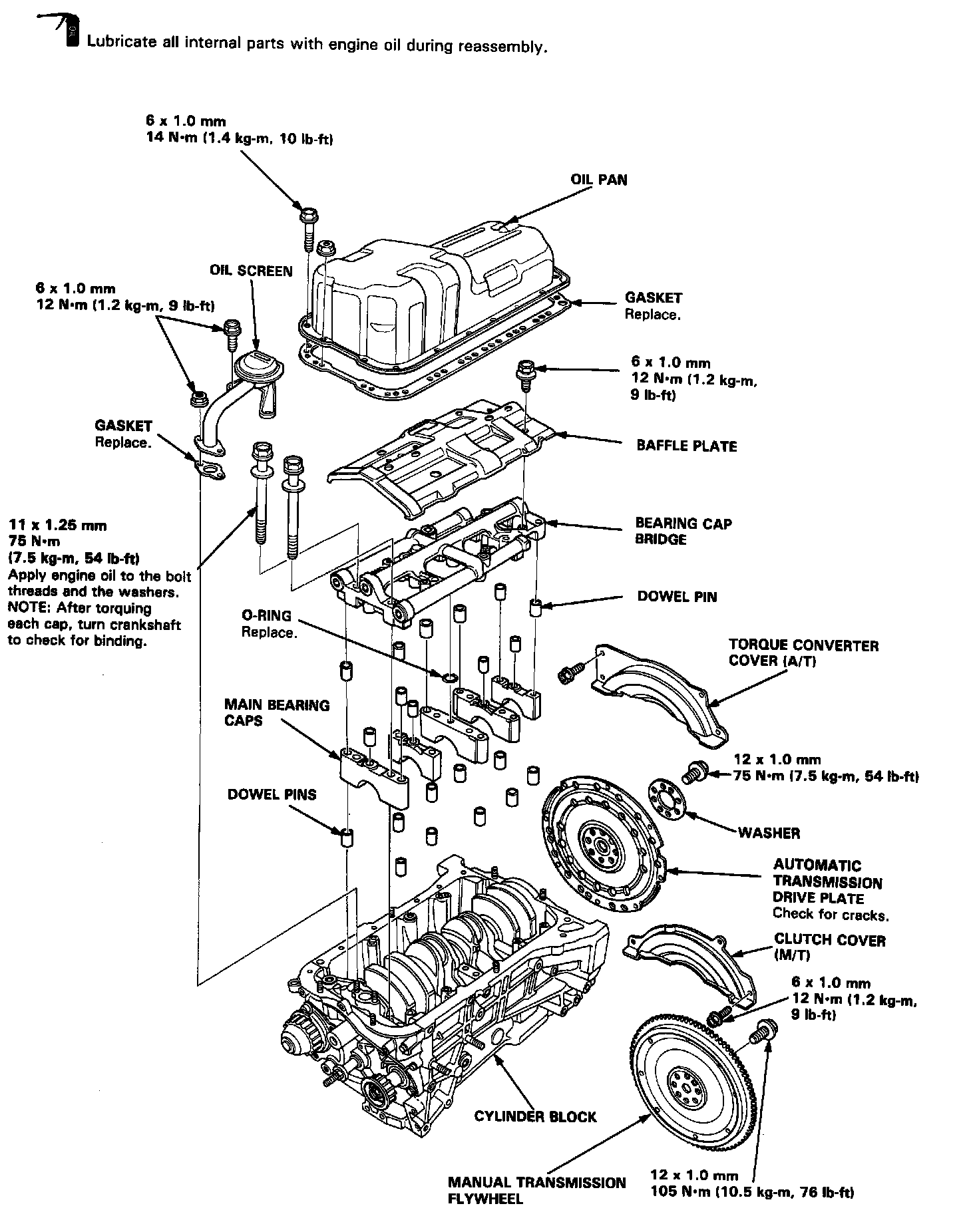

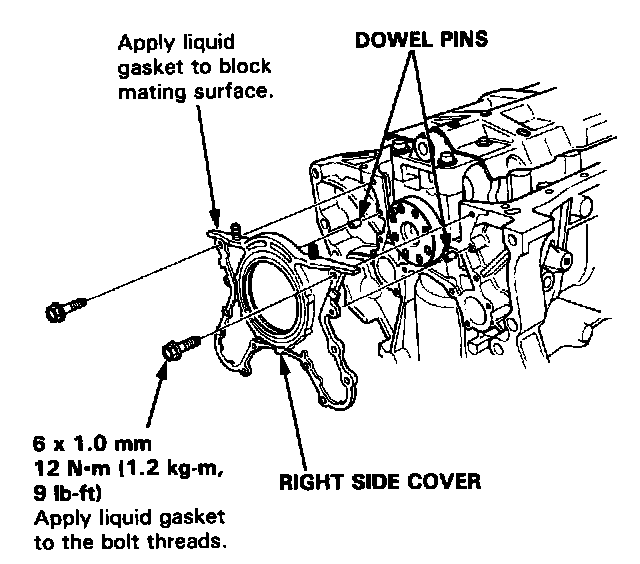

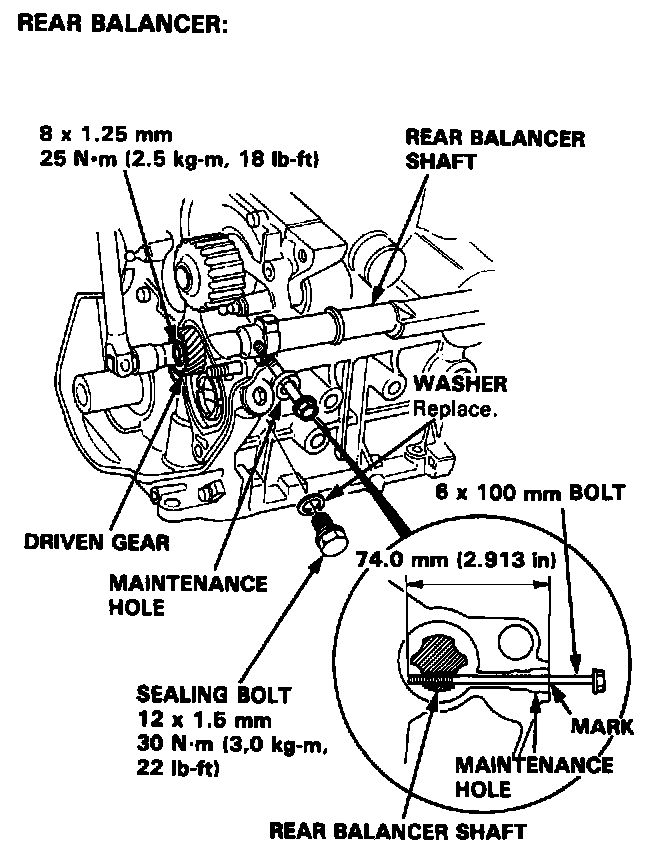

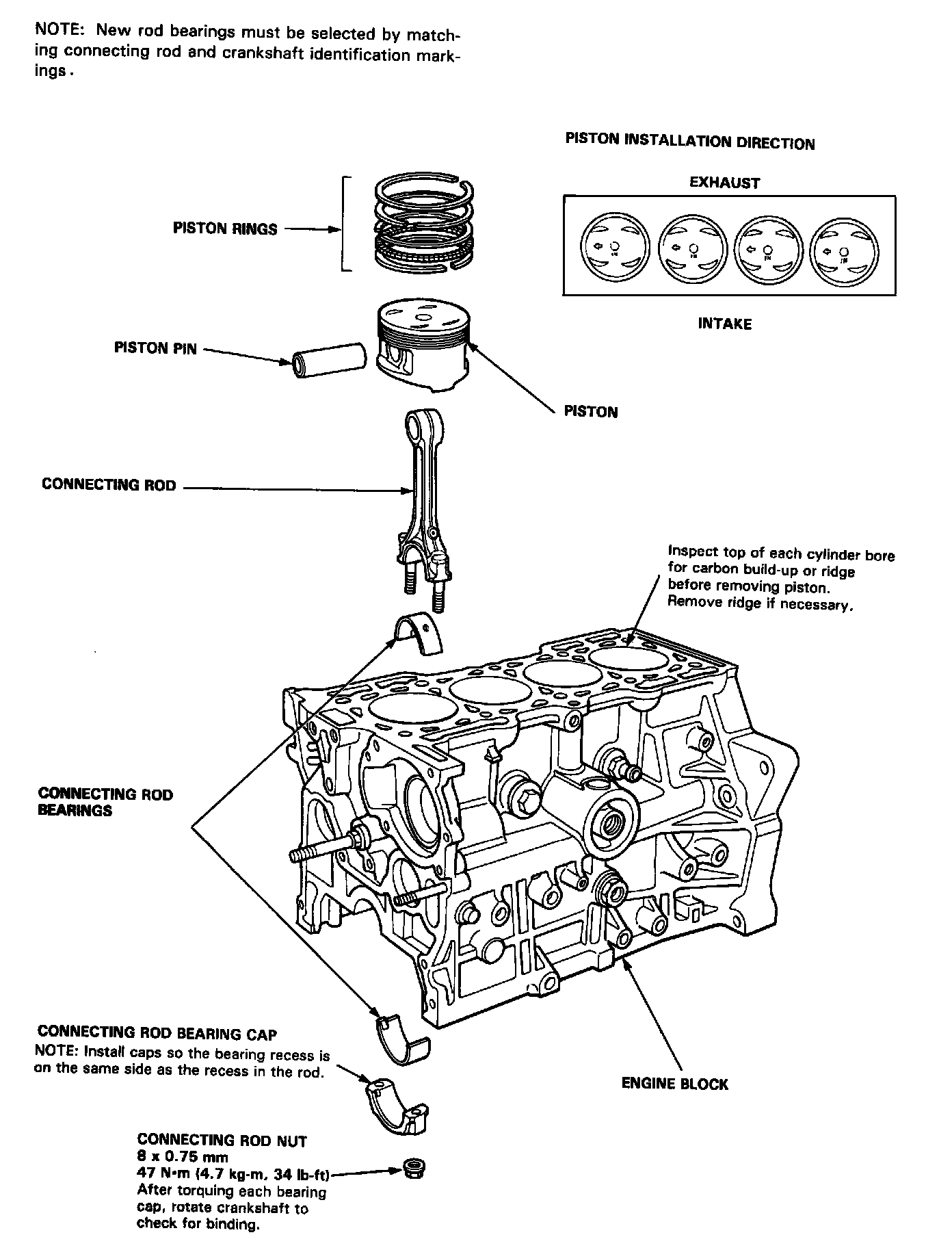

Lower Engine:

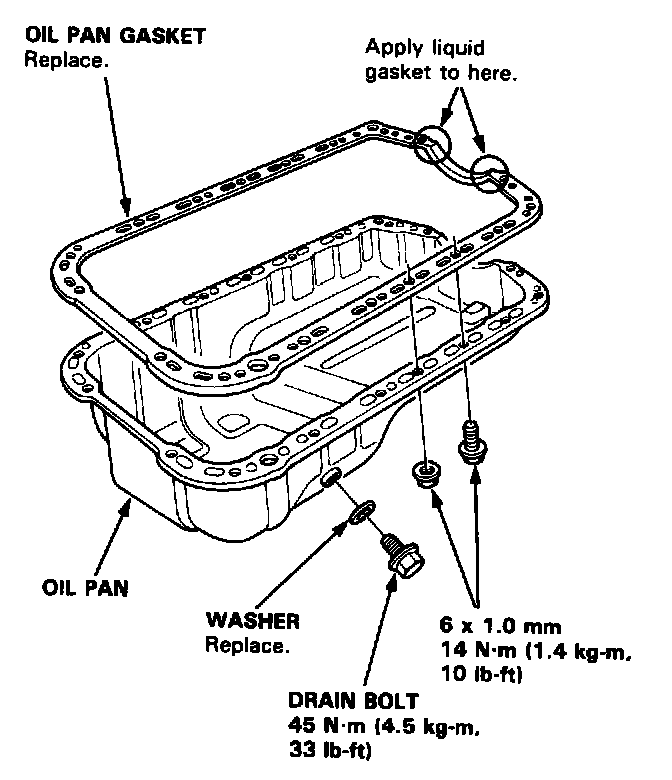

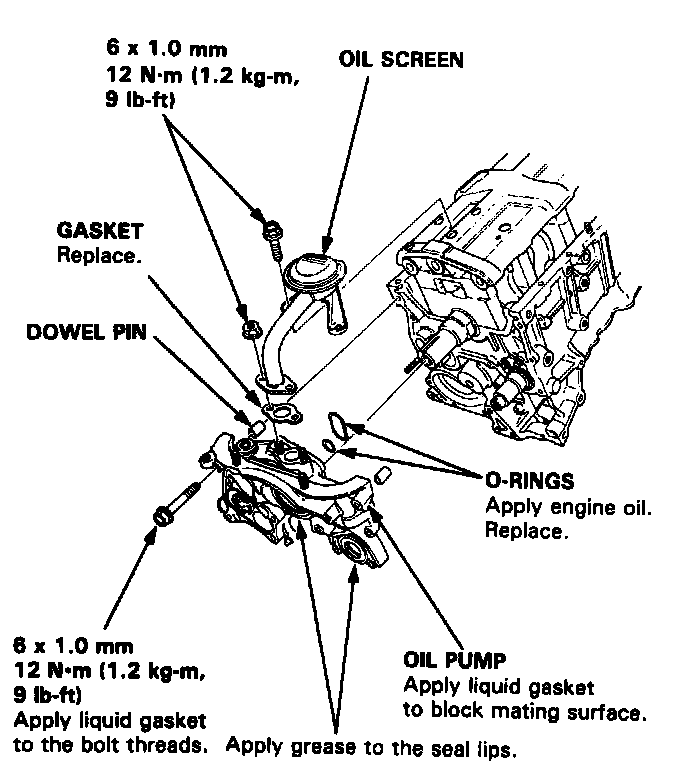

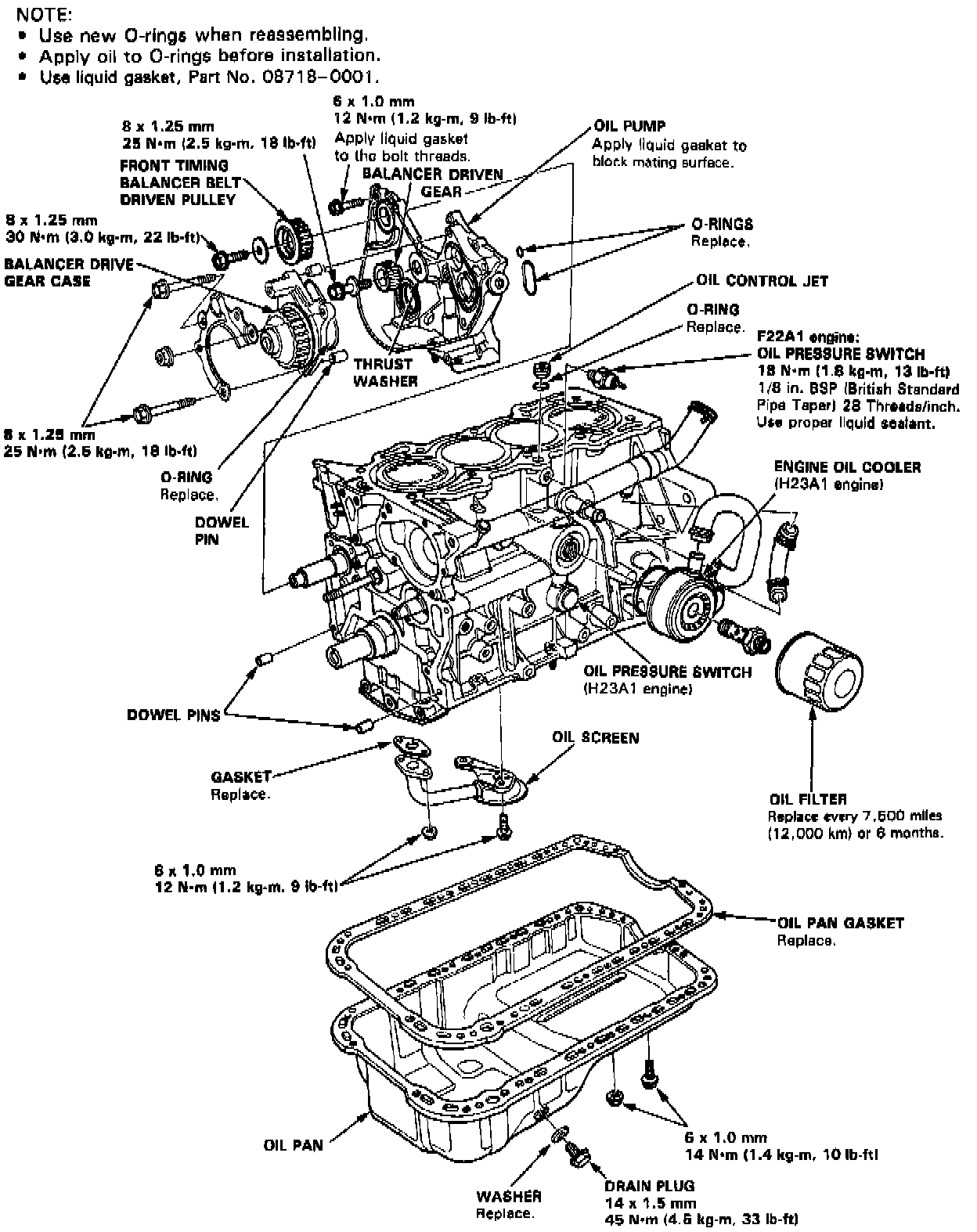

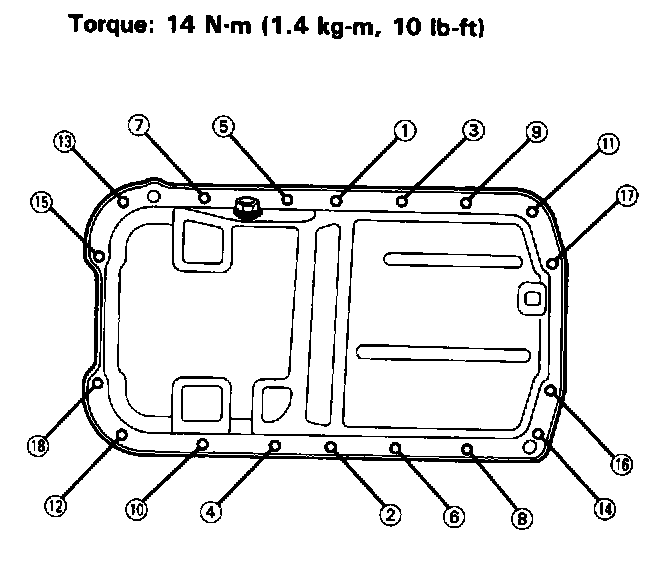

Engine Lubrication:

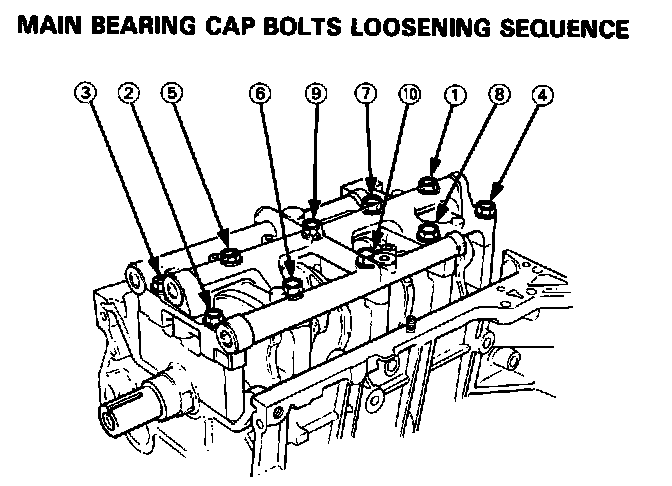

Main Bolt Loosening Sequence:

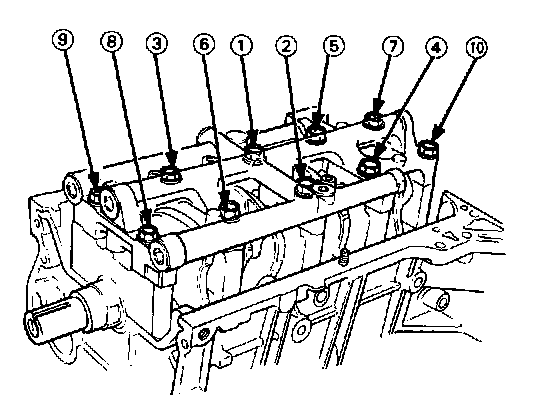

Main Bolt Torque Sequence:

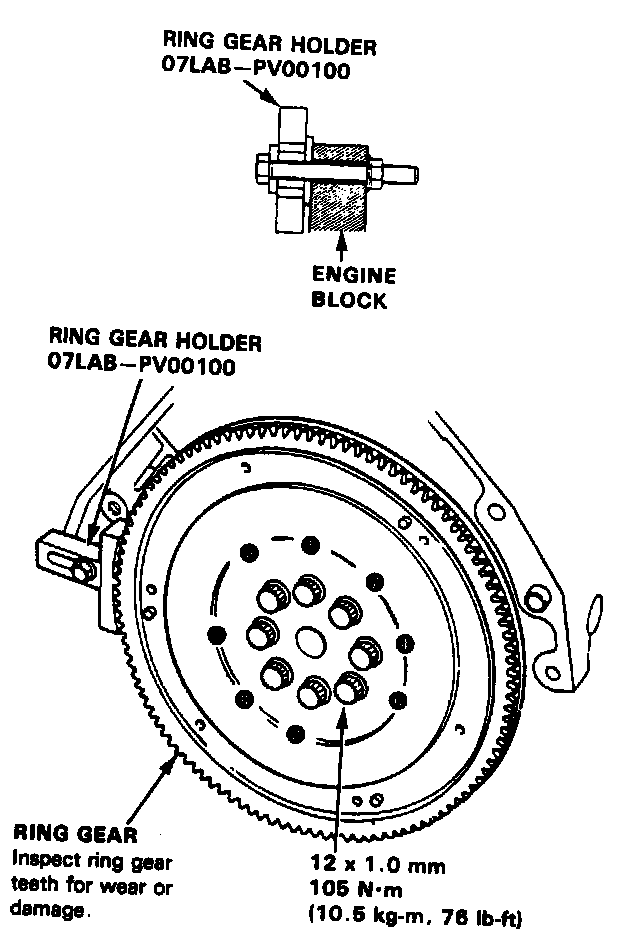

Flywheel (M/T) Torque:

Drive Plate (A/T) Torque:
