Air Mix Control

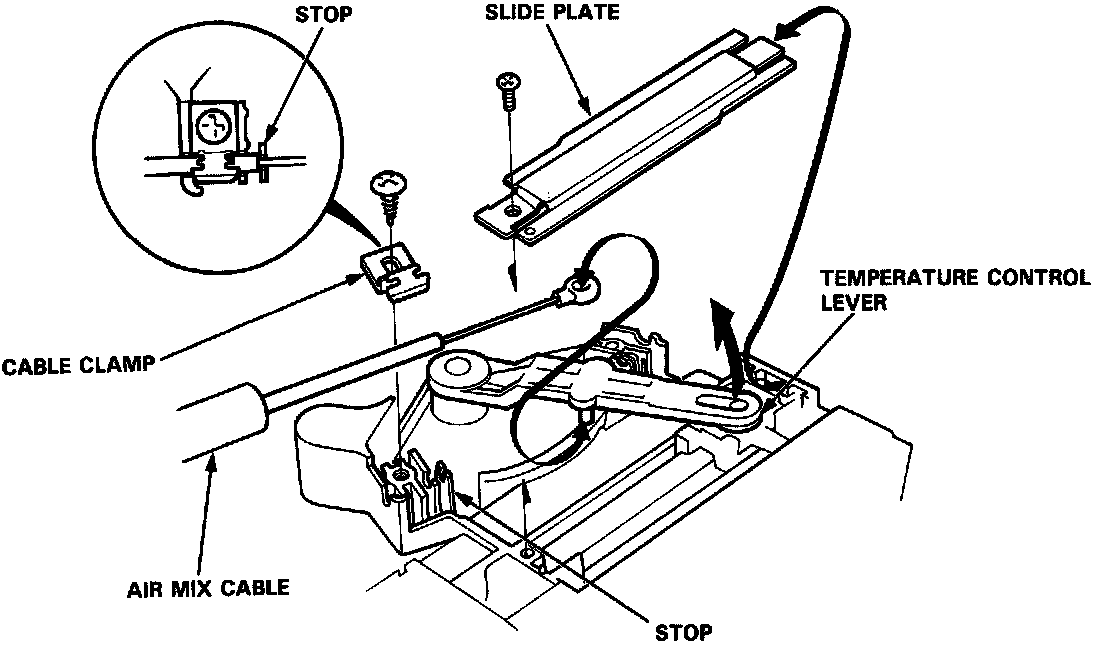

Air Mix Cable Replacement

1. Remove the screw and slide plate.
2. Remove the self-tapping screw and cable clamp.
3. Lift the end of the temperature control lever up and remove the air mix cable.
4. Install the removed parts in the reverse order of removal, and:
^ Be sure the end of the cable housing is against the stop before tightening the cable clamp.
^ After assembly, check that the temperature control lever slides smoothly through the full stroke from right to left.
