Windshield Washer Motor: Testing and Inspection

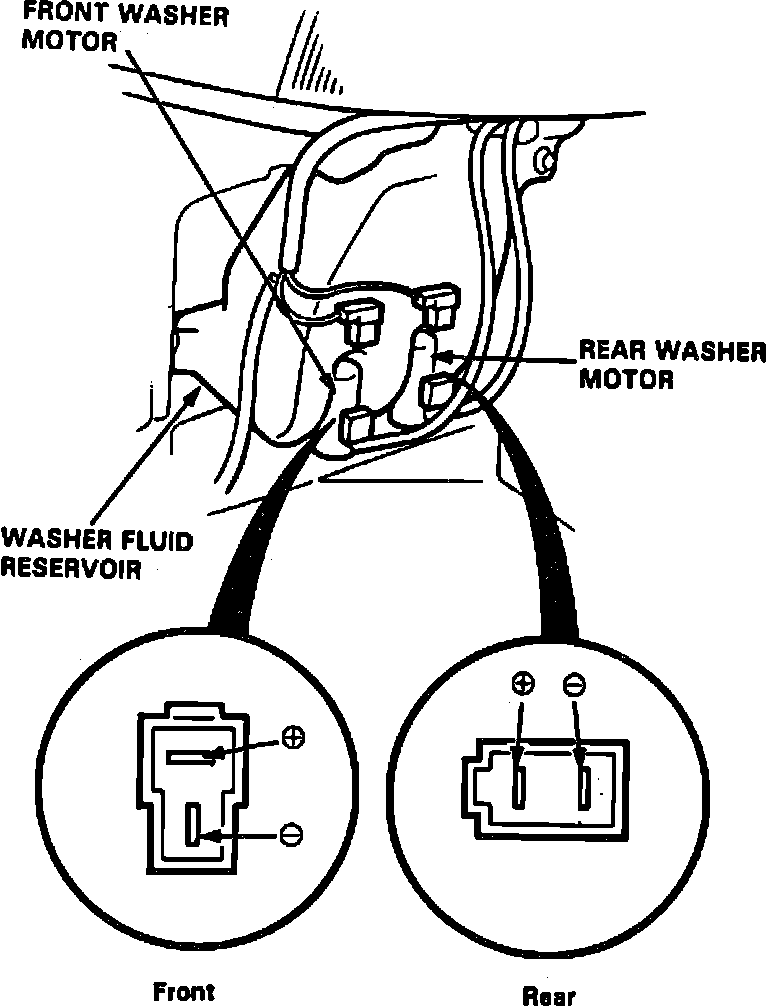

Fig. 14 Washer Motor Terminal Identification:
1.
Remove front bumper and disconnect 2-pin connector from
washer motor,
Fig. 14. 2.
Test front and rear washer motor operation by connecting battery positive to the positive terminal of the pump and battery negative to the negative terminal of the pump. If pump fails to run smoothly, replace as necessary.
