Mode Control Switch Test

MODE CONTROL SWITCH (BUTTON TYPE ONLY)
1. Disconnect the 14P connector from the heater control panel.

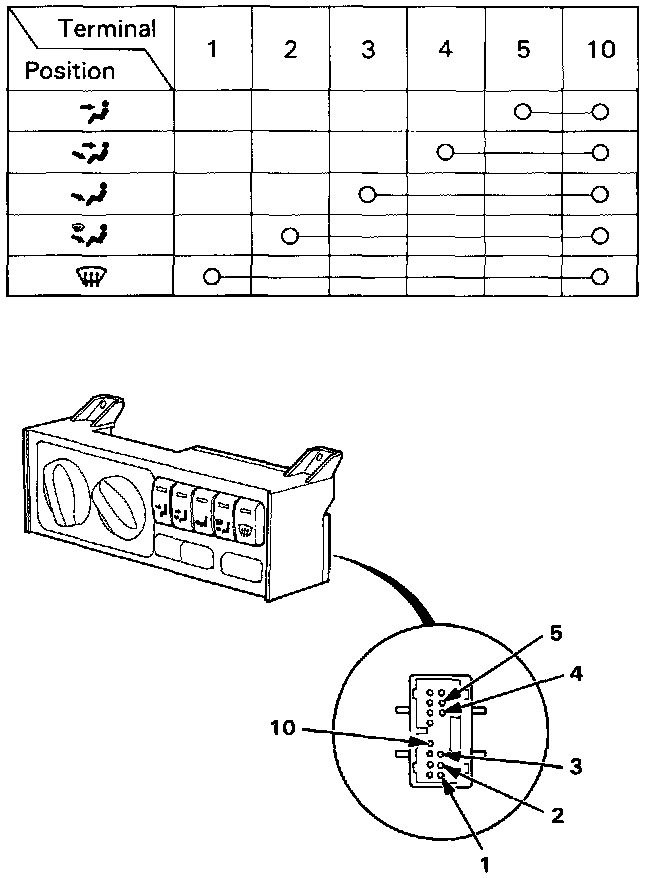

2. Check for continuity between the terminals of the heater control panel according to the table in illustration.
