Radiator Cooling Fan Control Module: Testing and Inspection
Radiator Fan Control Module:
Input Tests:

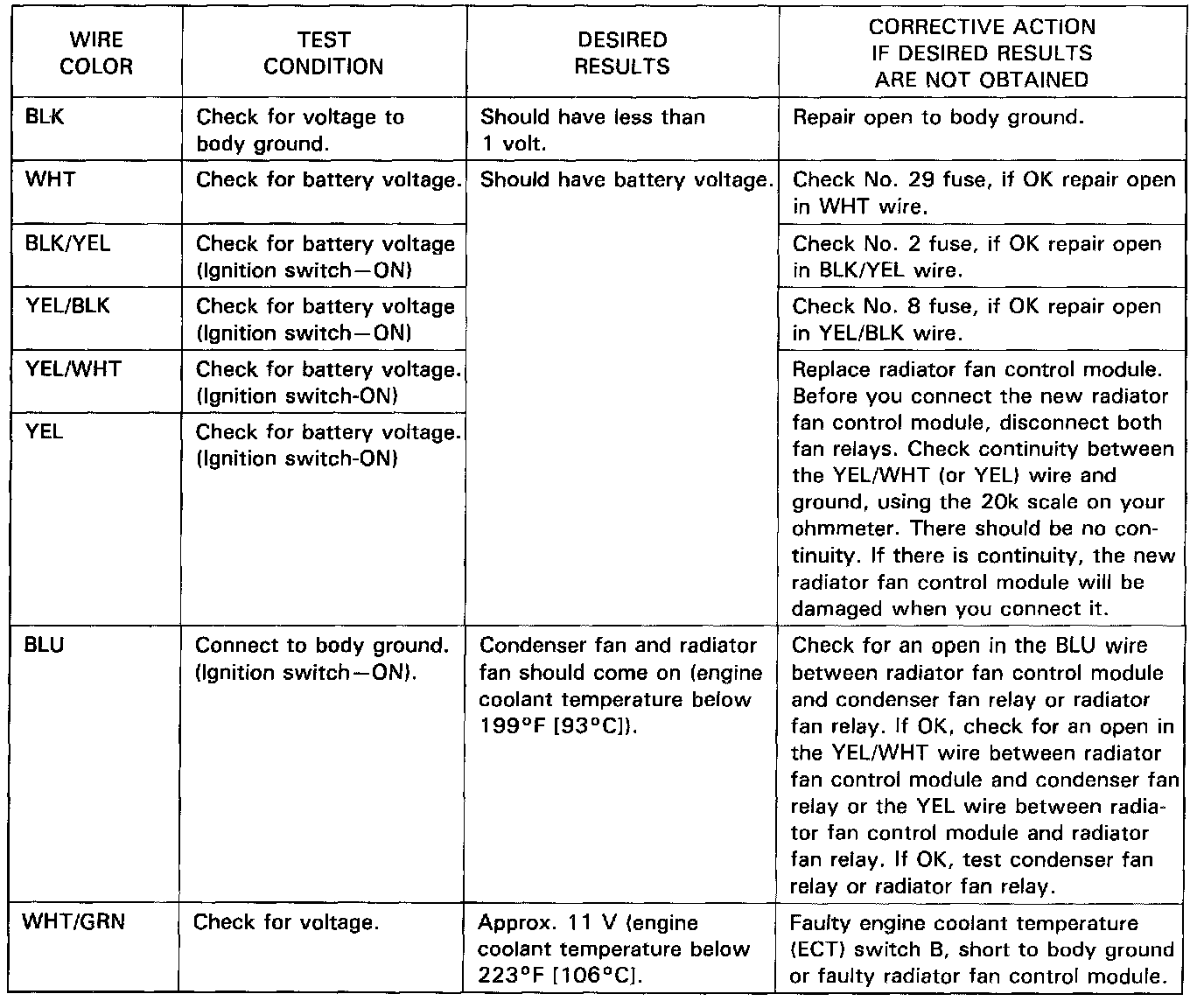

RADIATOR FAN CONTROL MODULE INPUT TESTS Perform the tests described in the table with the

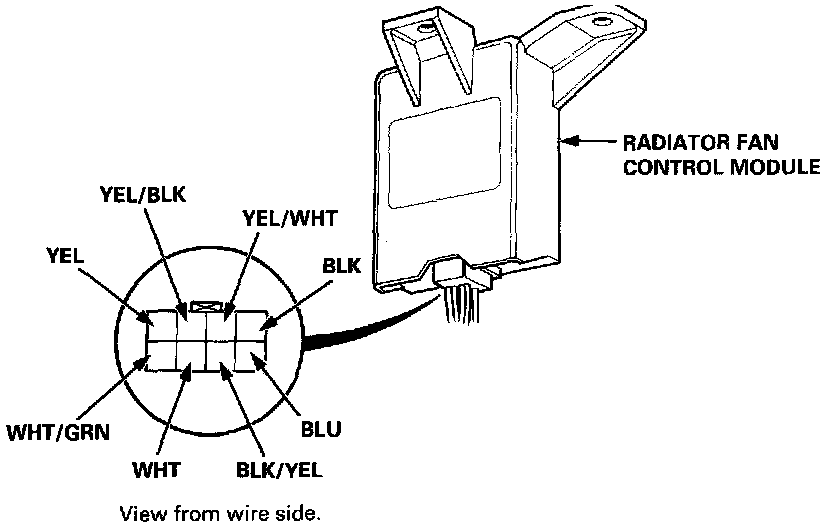

radiator fan control module connected, and the ignition switch ON. If you find the cause of a problem, correct it before you continue. Refer to image for terminal identification.
