Torque Specifications
Lower Cylinder Block:

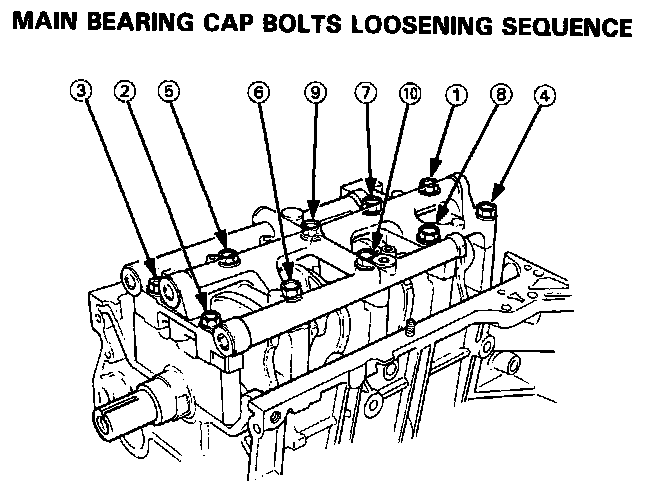

Main Bearing Cap Loosening Sequence:
Main Bearing Cap Torque Sequence:
Cylinder Block
Cylinder Head:

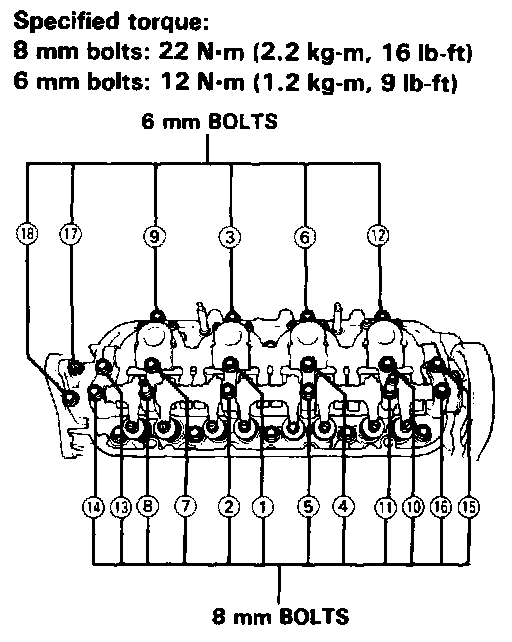

Camshaft And Rocker Arm:
Cylinder Head/Valve Train
Rocker Arm Bolt Torque Sequence:

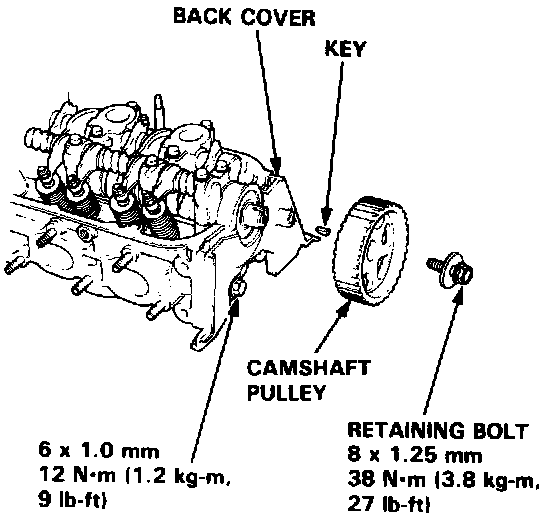

Camshaft Pulley:

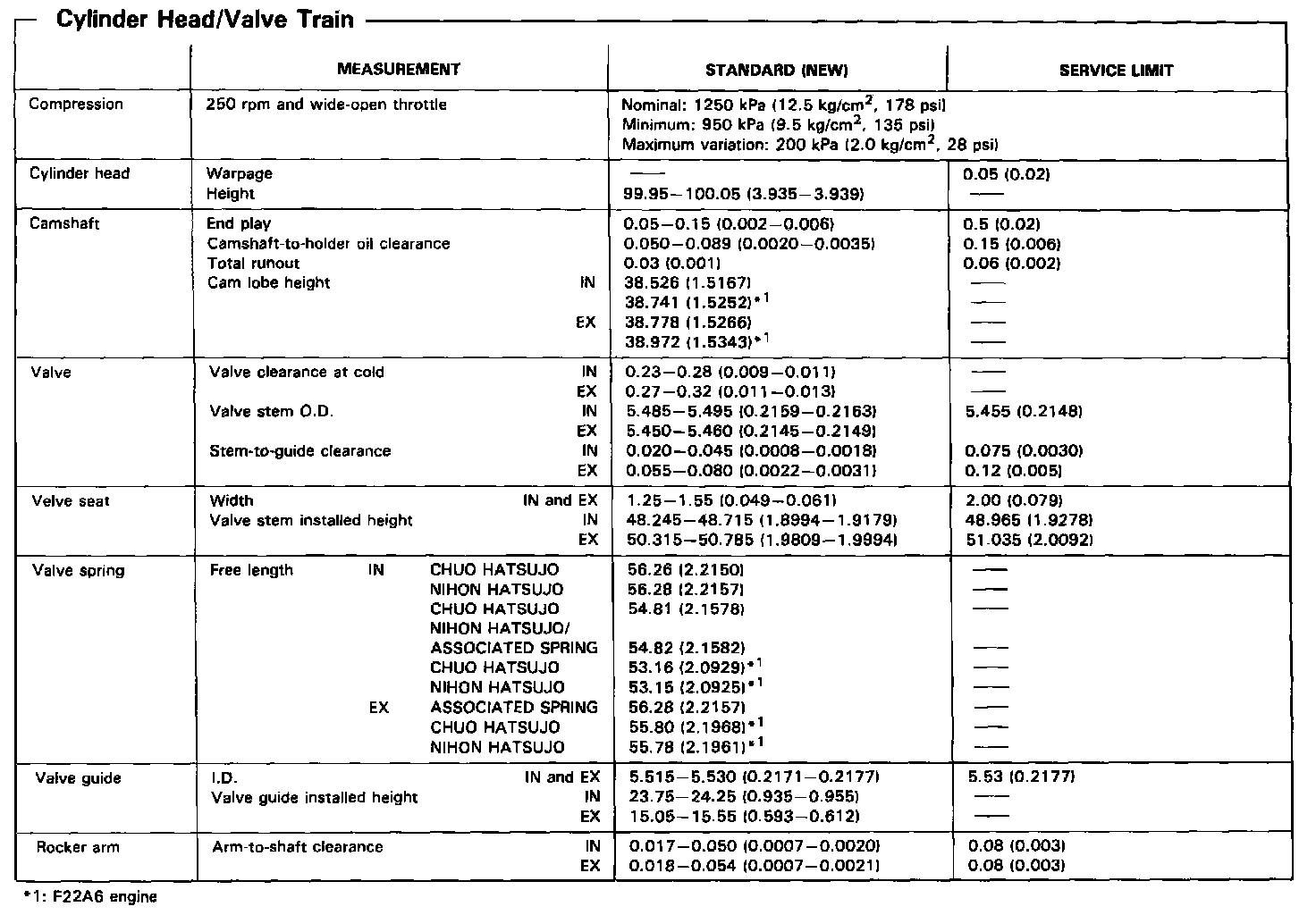

Service Specifications:

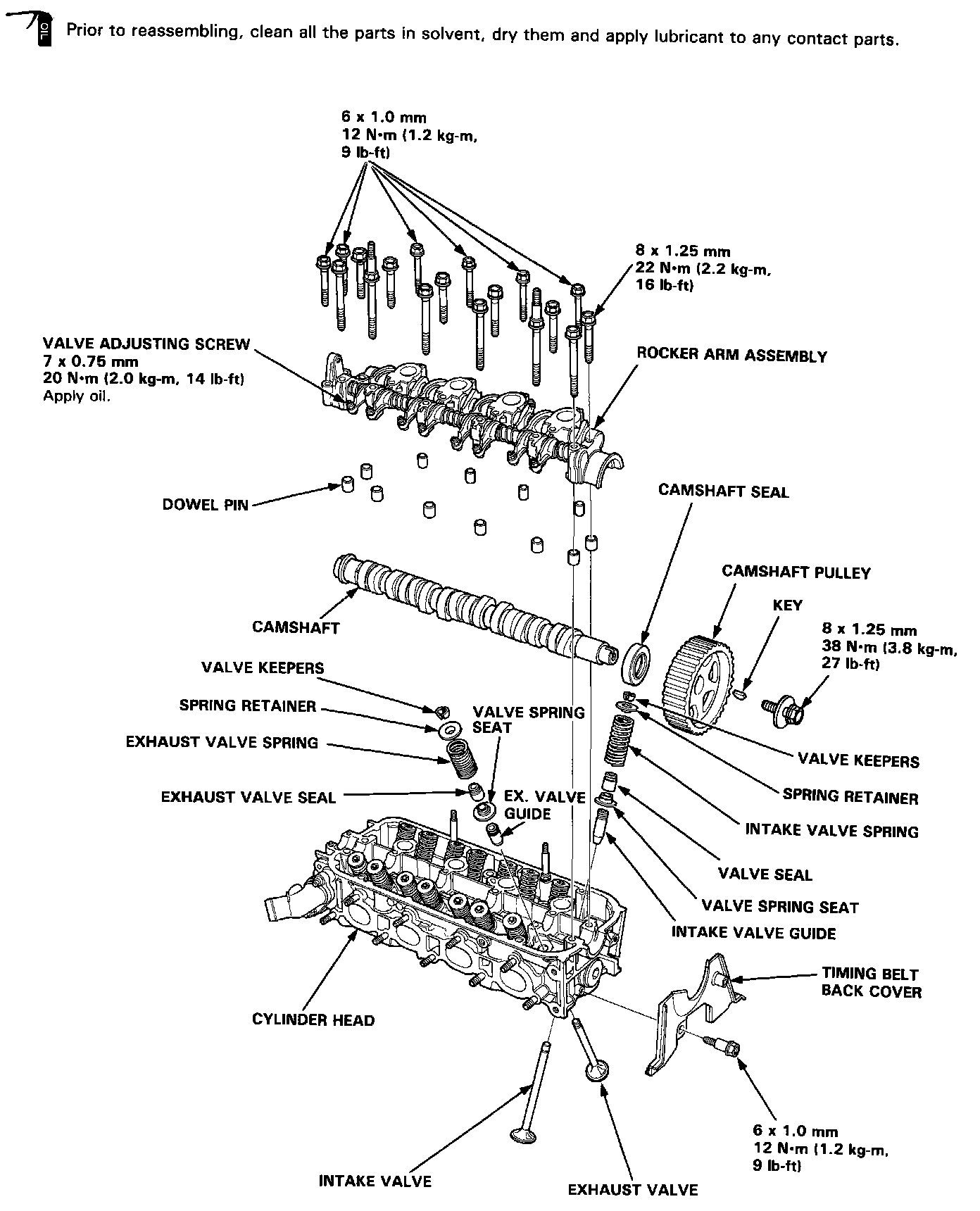

Camshaft/Rocker Arms and Camshaft Seals/Pulley

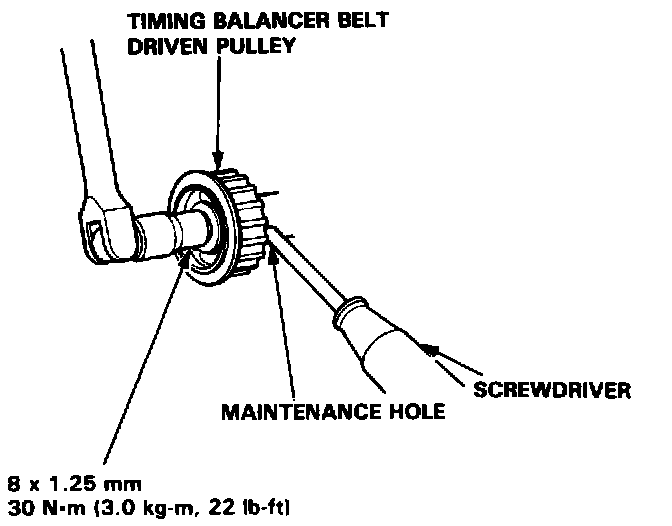

Balance Shaft Pulley:

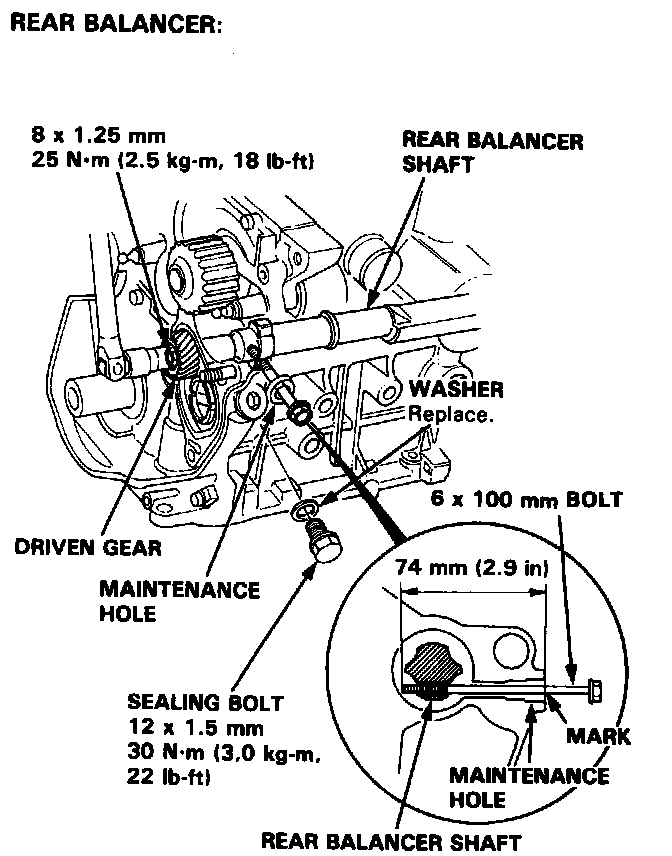

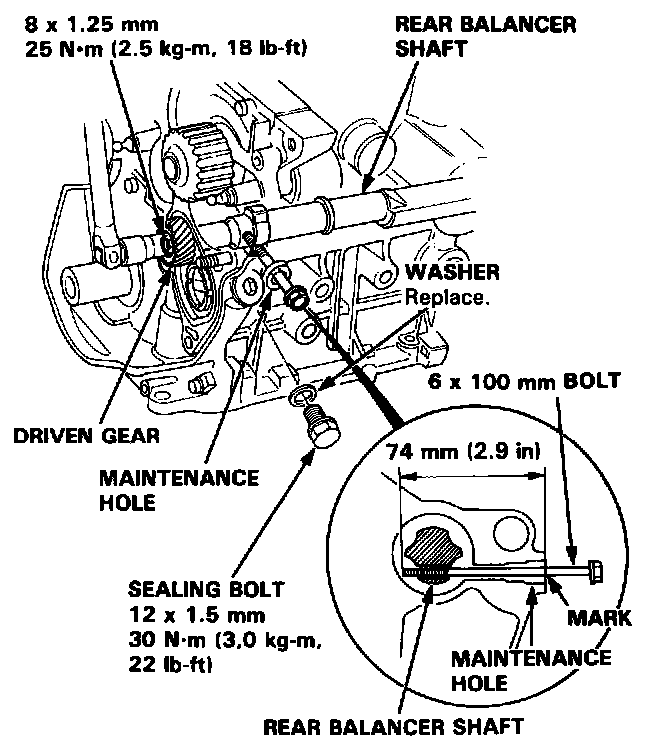

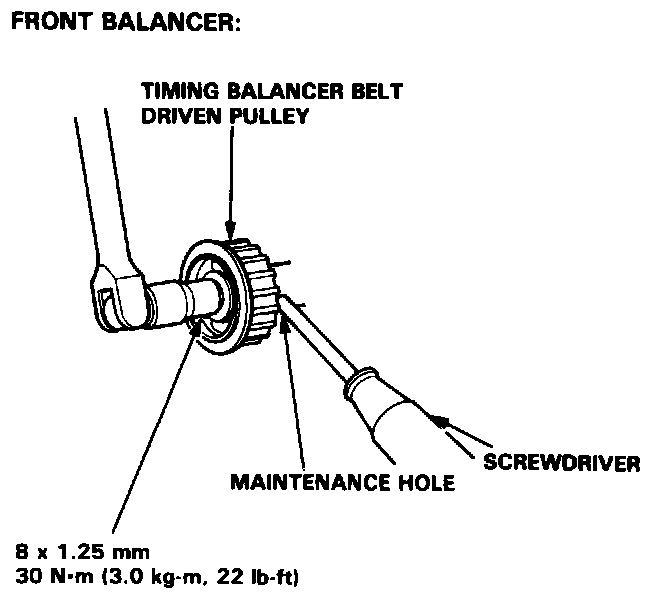

Balance Shafts:
Main Bearing Cap Bolt Loosening Sequence:
Timing Belt Exploded View:

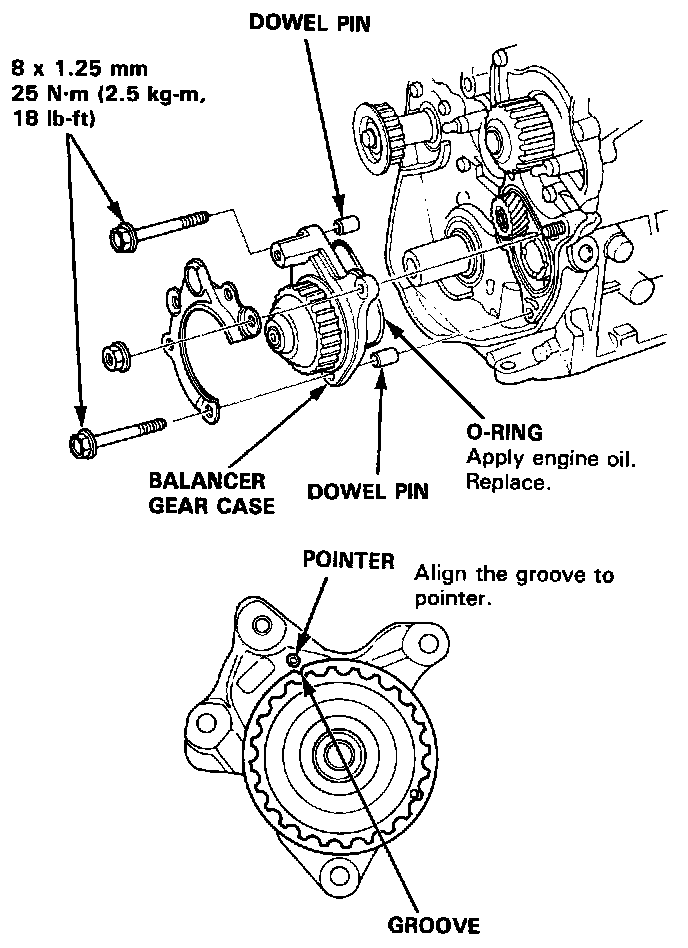

Balance Shaft Drive:

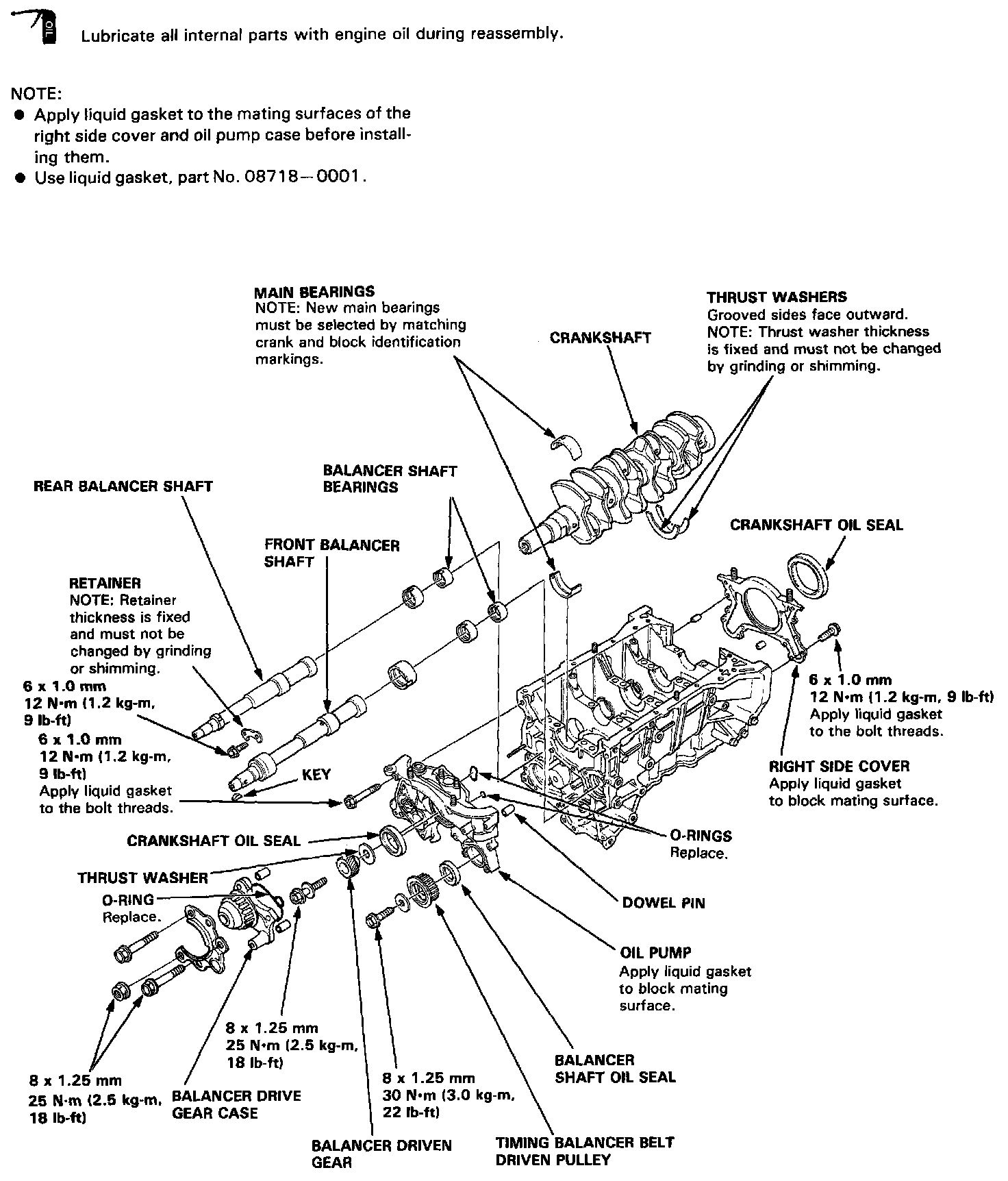

Crankshaft and Balancer Shafts

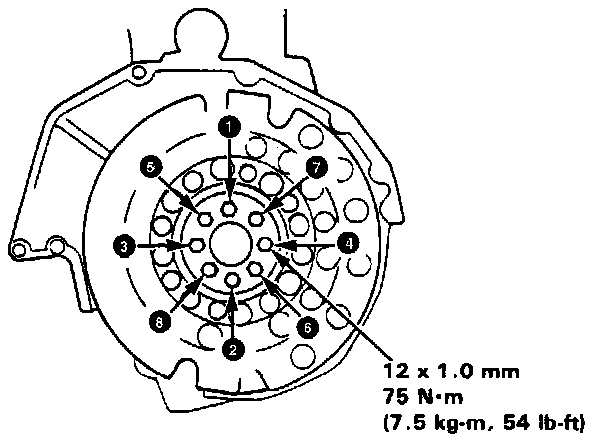

Flywheel Torque And Sequence:
Flexplate Torque And Sequence:
Flywheel/Flexplate Replacement
Oil Pan:

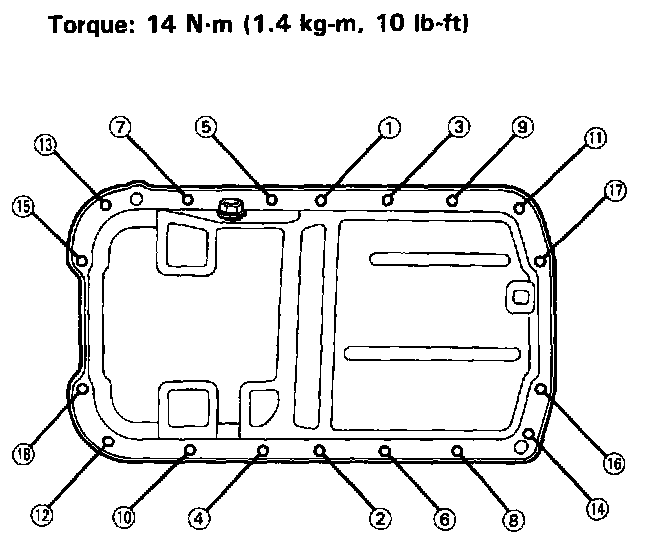

Oil Pan Sequence:

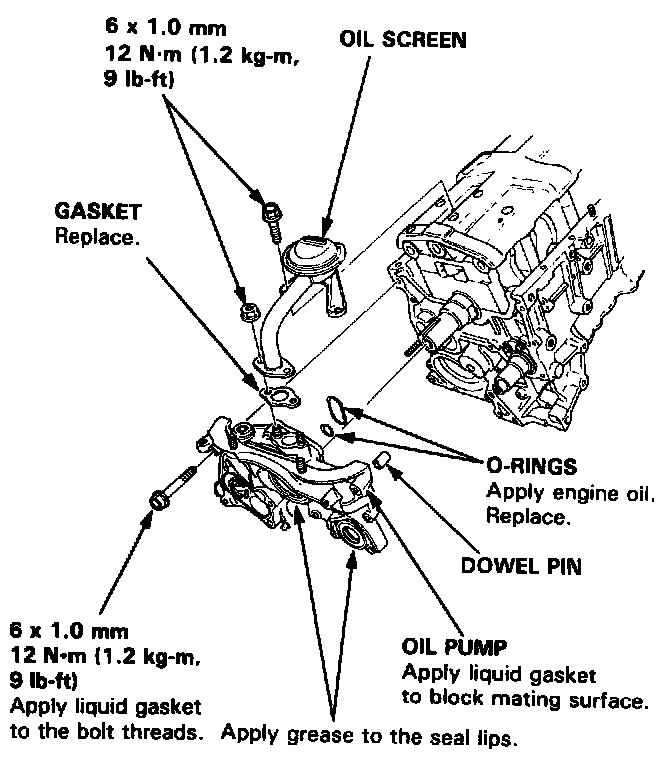

Lubrication System:

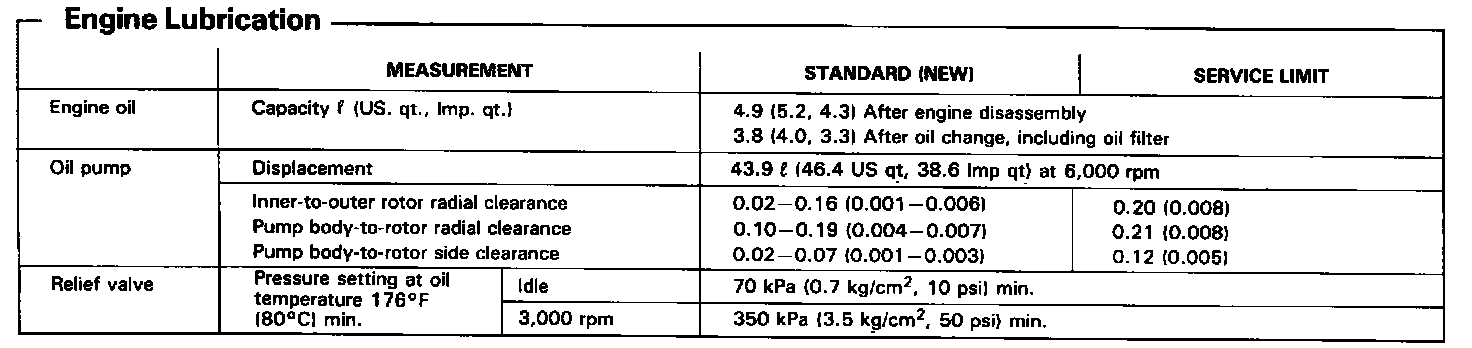

Service Specifications:
Lubrication
Tighten the cylinder head bolts sequentially in three steps.
1st step torque: 40 Nm (4.0 kg-m, 29 lb ft)
2nd step torque: 70 Nm (7.0 kg-m, 51 lb ft)
3rd step torque: 108 Nm (10.8 kg-m, 78 lb ft)

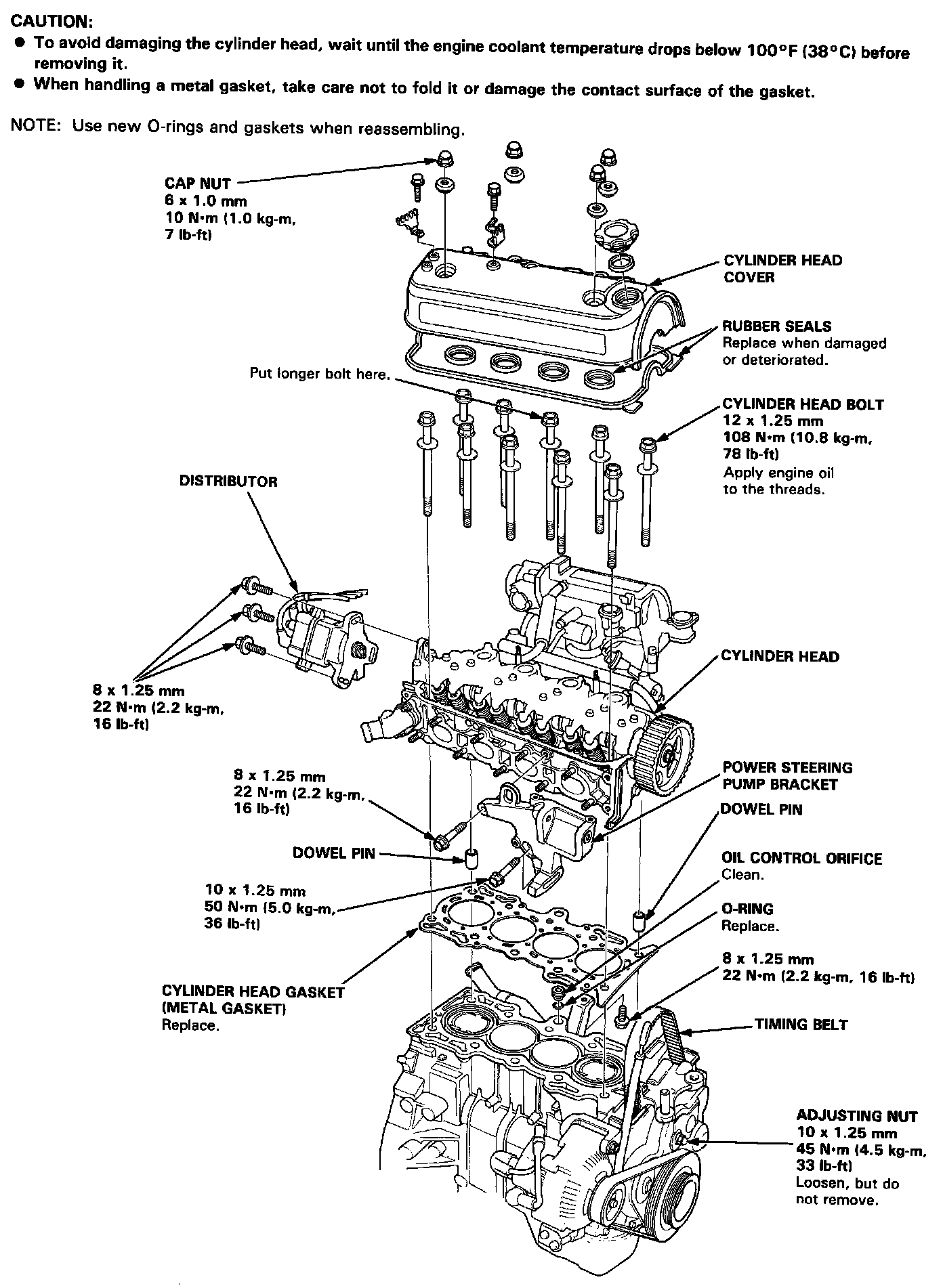

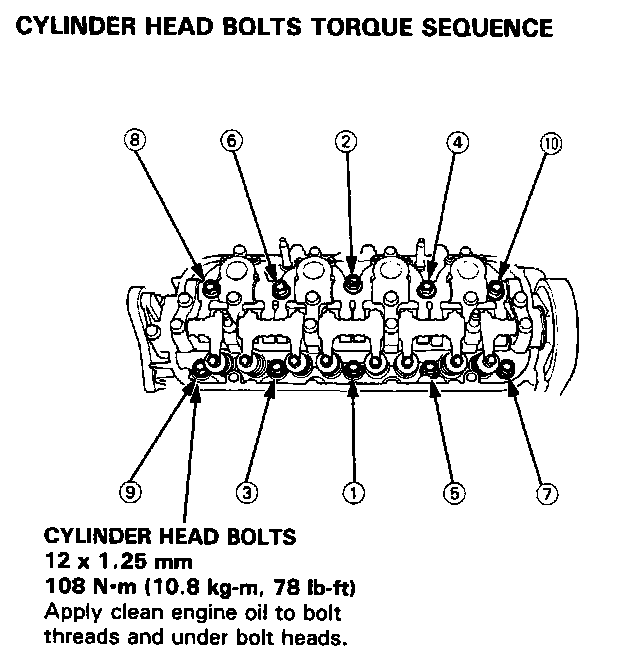

Cylinder Head Torque Sequence and Torque Value
