Starter Motor: Service and Repair

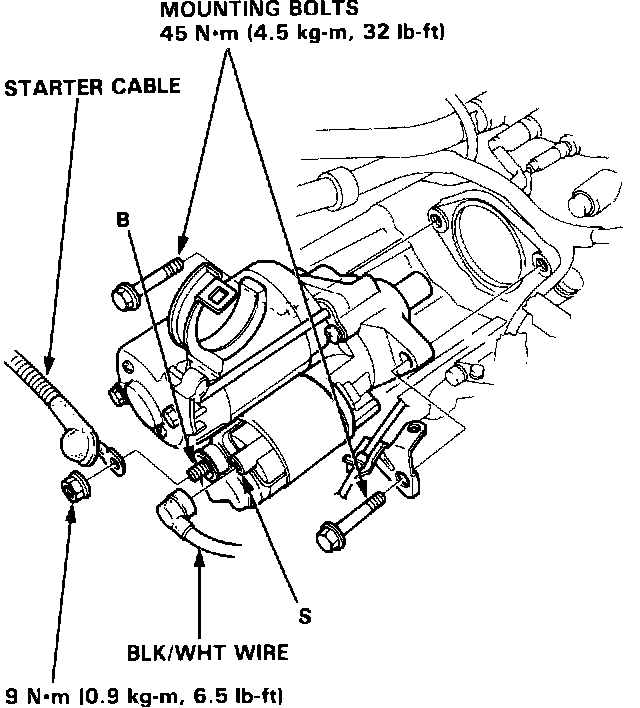

Starter Installation:
1.
Disconnect the cable from the battery negative terminal.
2
Remove the engine wire harness from the harness clip on the
starter motor.
3.
Disconnect the
starter cable from the B terminal on the solenoid, and the BLK / WHT wire from the S terminal.
4.
Remove the two bolts holding the starter, and remove the starter.
