Starter Relay: Testing and Inspection
Checking Continuity Starter Relay:
1.
Remove the
starter relay and disconnect it from the harness.
2.

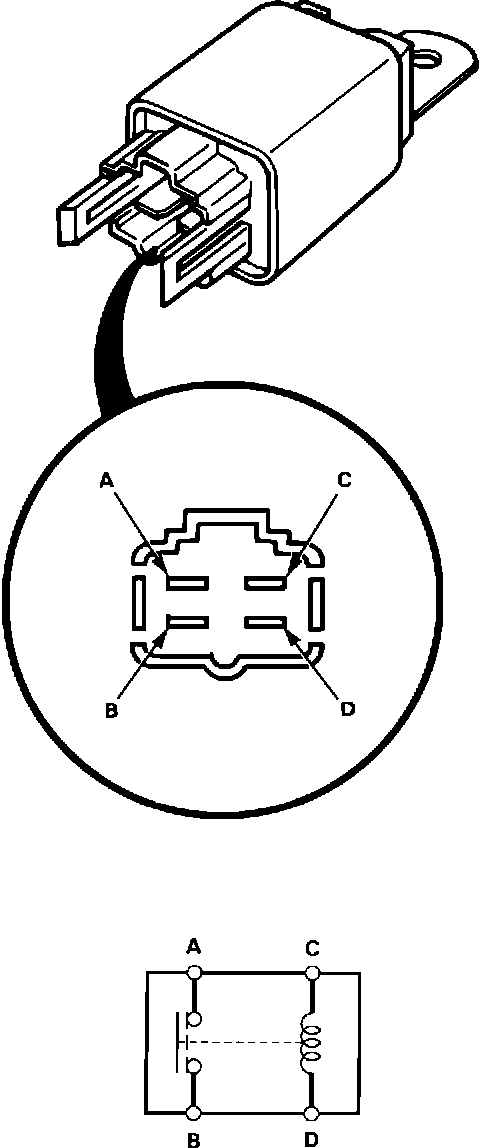

Check continuity between the A and B terminals with battery power and ground connected to the C and D terminals.
^
There should be continuity.
^
There should be no continuity with power disconnected.
