Removal and Installation/Replacement

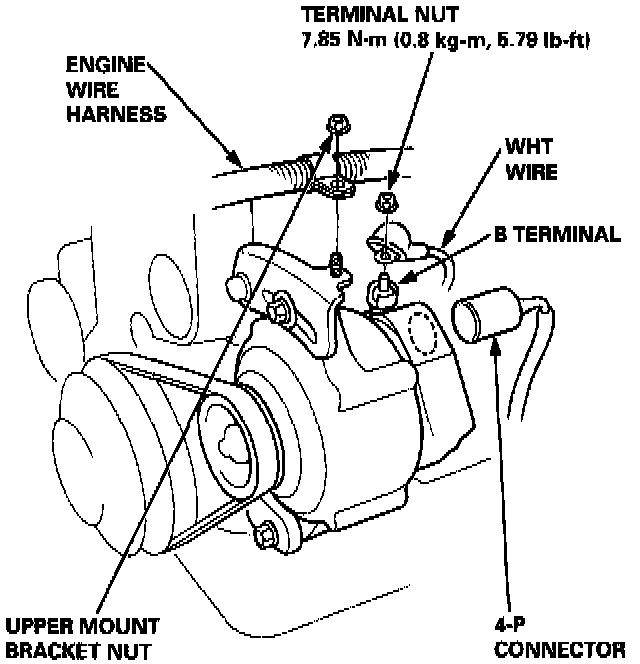

Alternator Removal:

1. Disconnect the cable from the battery negative (-) terminal.
2. Disconnect the 4-P connector from the alternator.
3. Remove the terminal nut and the WHT wire from the B terminal.
4. Remove the upper mount bracket nut and the engine wire harness.
5. Remove the adjusting bolt and through bolt nut, then remove the alternator belt from the pulley.

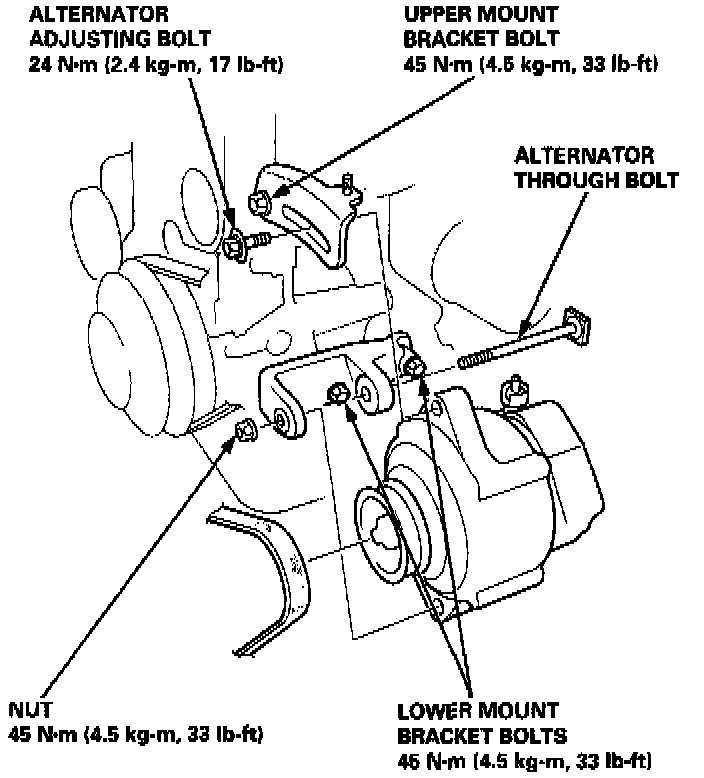

Alternator Removal:

6. Pull out the alternator through bolt, then remove the alternator.
7. If necessary, remove the mount bracket bolts, and the upper and lower mount brackets.
8. Adjust the alternator belt tension after installation, refer to Engine/Drive Belts, Mounts, Brackets and Accessories/Drive Belt/Alternator/Service and Repair.
