Blower Motor: Service and Repair

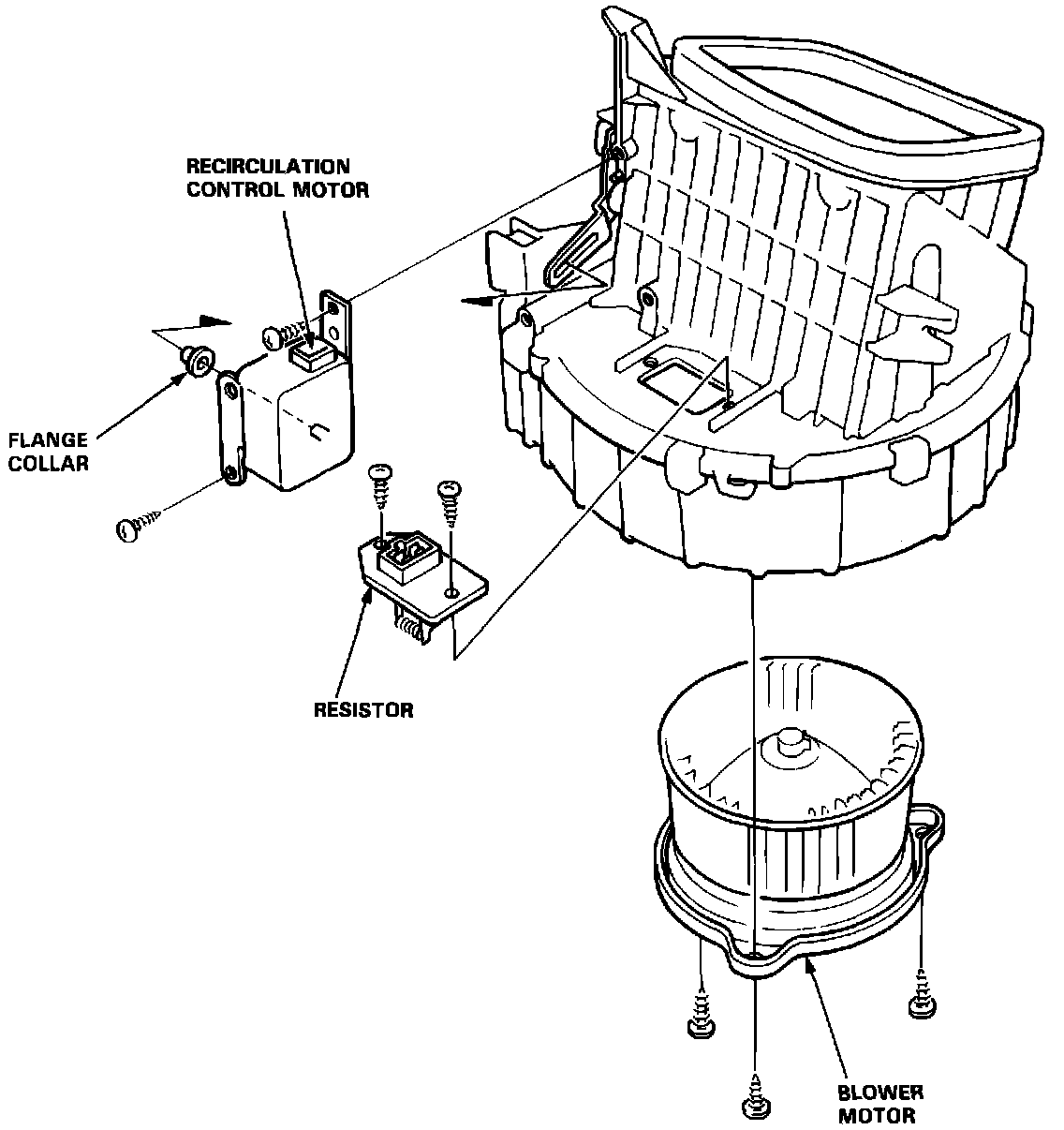

Blower Motor Overhaul:
NOTE: -
Before reassembly, make sure that the
air door and linkage move smoothly without binding.
-
When reattaching the actuator, make sure its positioning will not allow the
air door to be pulled too far. Attach the actuator and all linkage, then apply battery voltage and watch the door movement. If necessary, loosen the holding screw and move the actuator up or down.
