Thermal Limiting Fuse: Service and Repair
1.
Remove the bolt, field coil terminal, and retainer.

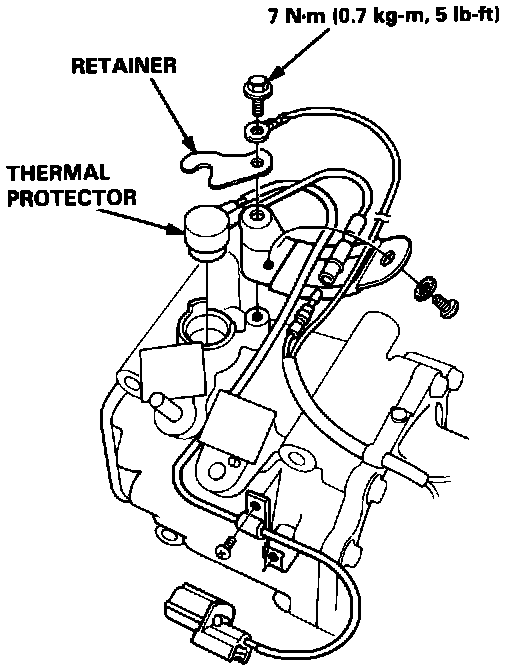

Thermal Protector Removal:
2.
Remove the
thermal protector. Remove the residue of silicone sealant from the top of thermal protector.

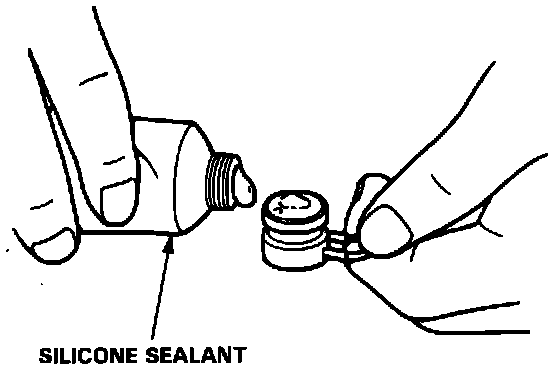

Silicon Sealant Application To Thermal Protector:
3.
Apply silicone sealant to the top of the
thermal protector.
4.
Install in the reverse order of removal.
