Cranking Signal: Description and Operation

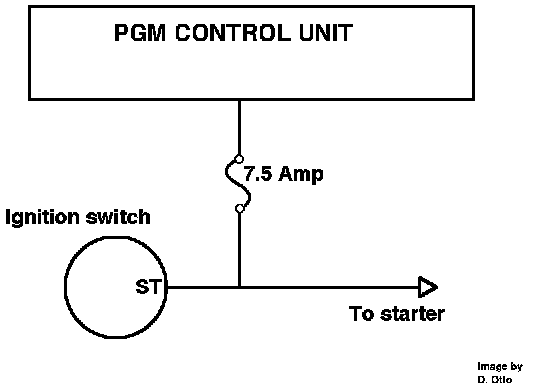

Starter Switch Signal:
PURPOSE The 12 volt signal informs the control module the engine is being started.
OPERATION The starter signal is generated by the
ignition switch whenever it is in the start position. The
ECM uses the starter signal for fuel and timing control at engine start-up.
